Installation Procedure

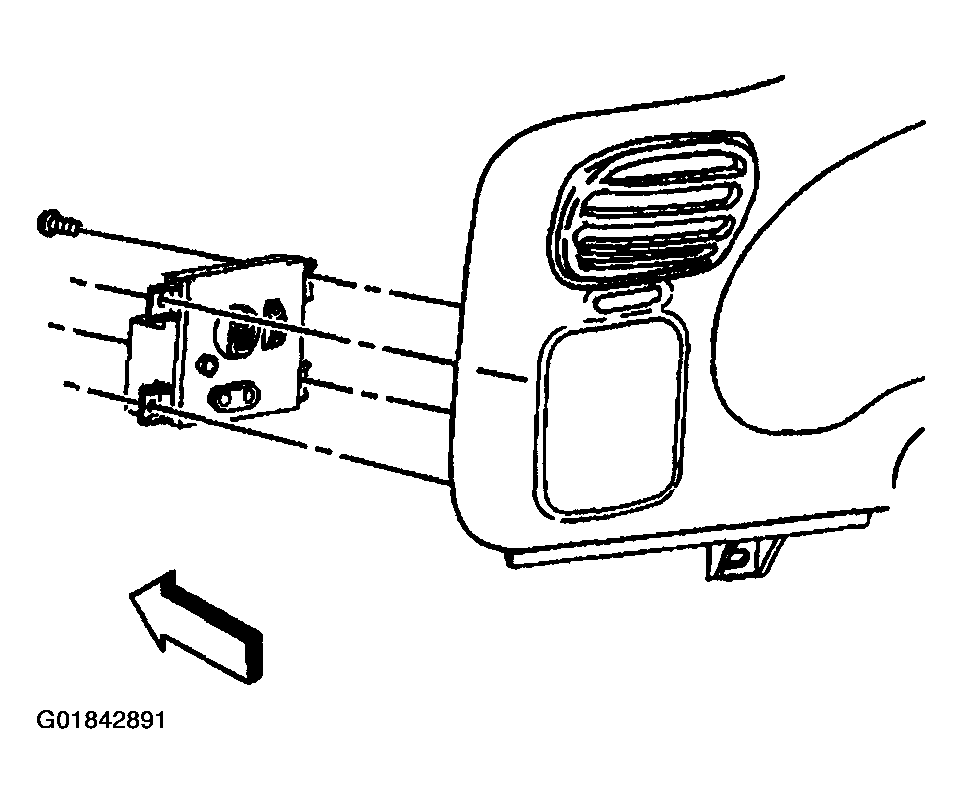

- Install the headlamp switch panel to the instrument panel accessory trim plate.NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
- Install the screws that retain the headlamp switch panel to the instrument cluster bezel.
Tighten
Tighten the screws to 1 N.m (9 lb in).
- Connect the electrical connector.
- Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
