Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Open the left instrument panel (IP) access cover.
Reach into the access hole and release the 4 retaining tabs located on the headlamp switch behind the IP.

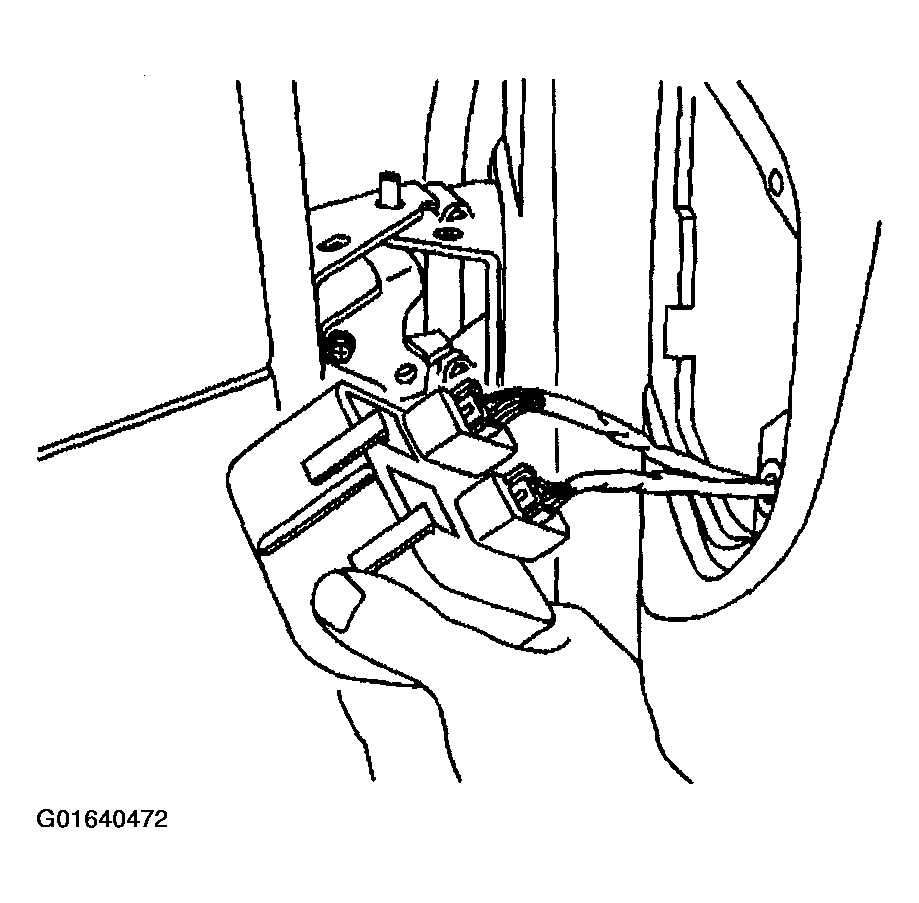

Fig 1: Disconnecting Electrical Connectors From Headlamp Switch
Courtesy of GENERAL MOTORS CORP.
Remove the headlamp switch from the IP, through the IP access hole.
Disconnect the electrical connectors from the headlamp switch.
Remove the headlamp from the IP.

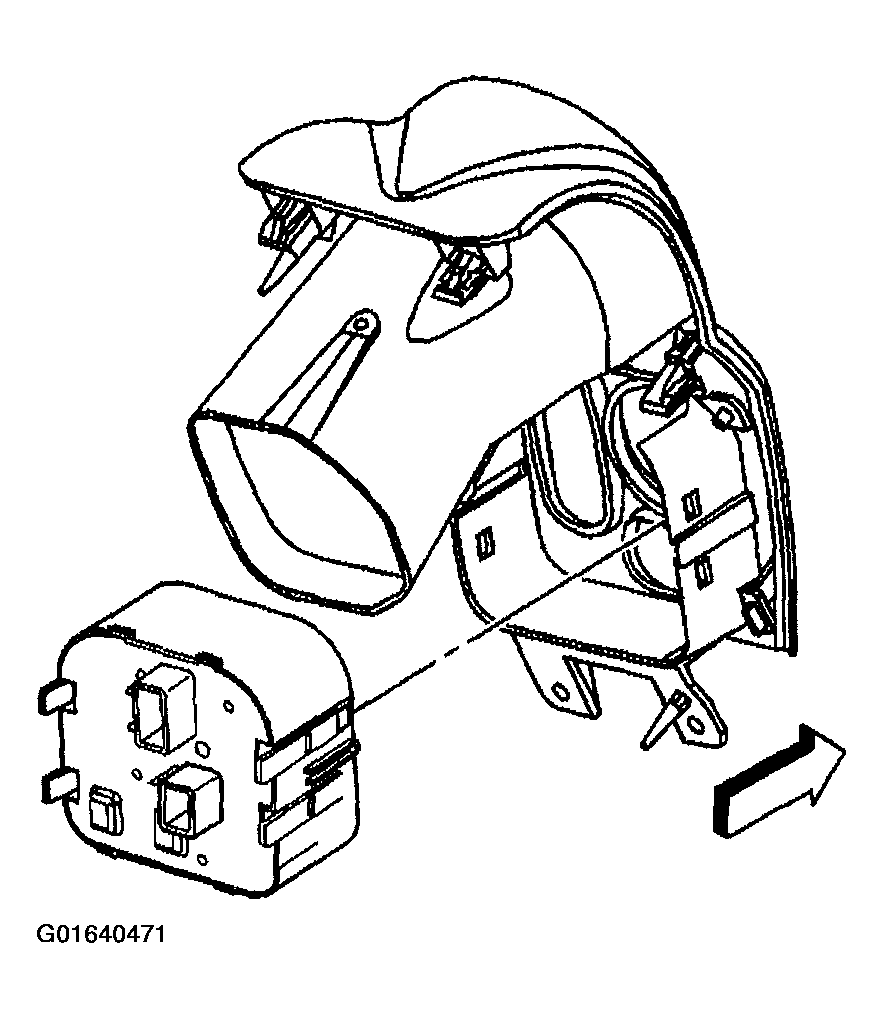

Fig 2: Removing Headlamp From IP
Courtesy of GENERAL MOTORS CORP.
