Body Control Module Connector End Views

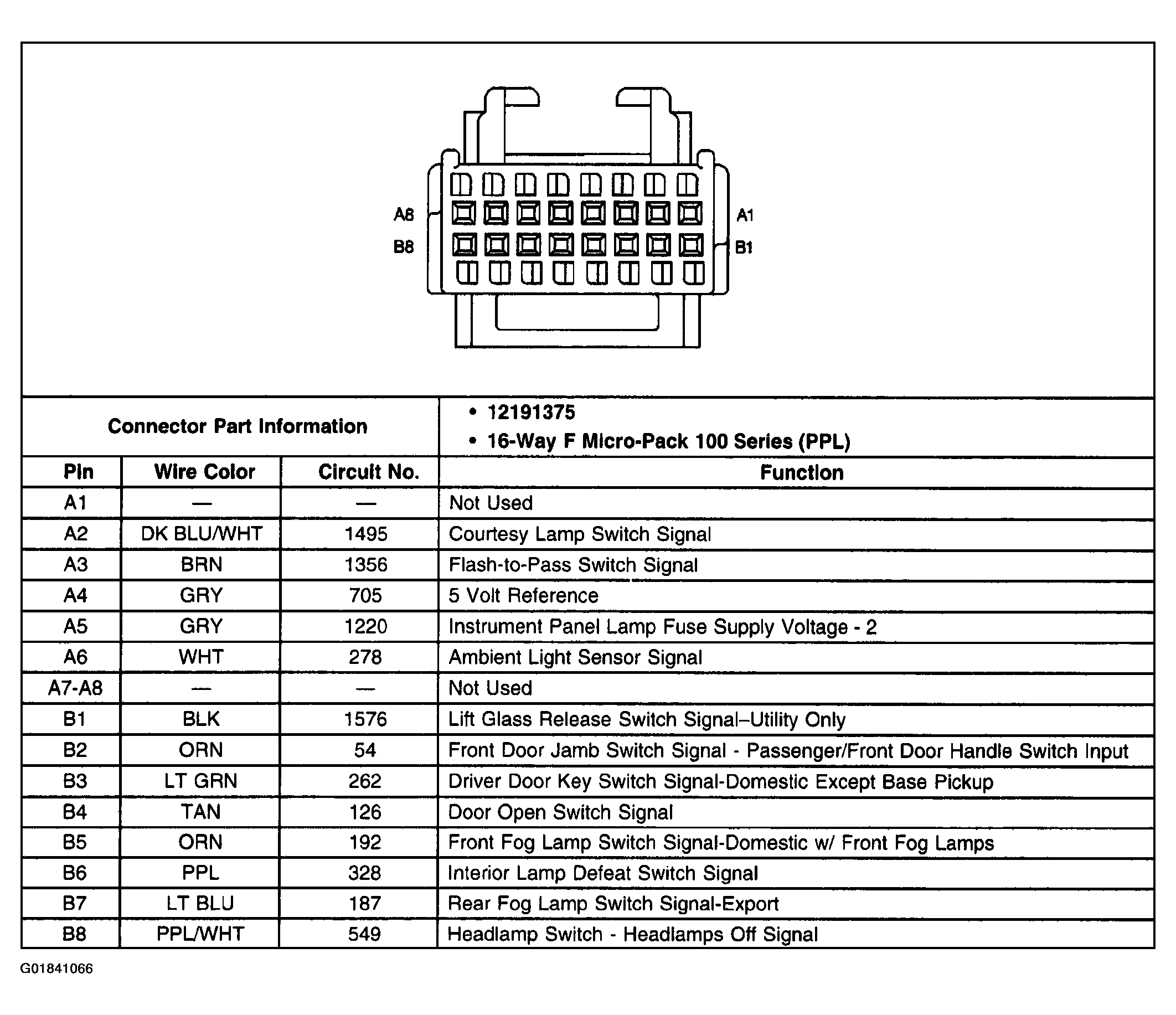

Fig 1: Body Control Module Connector C1

Courtesy of GENERAL MOTORS CORP.

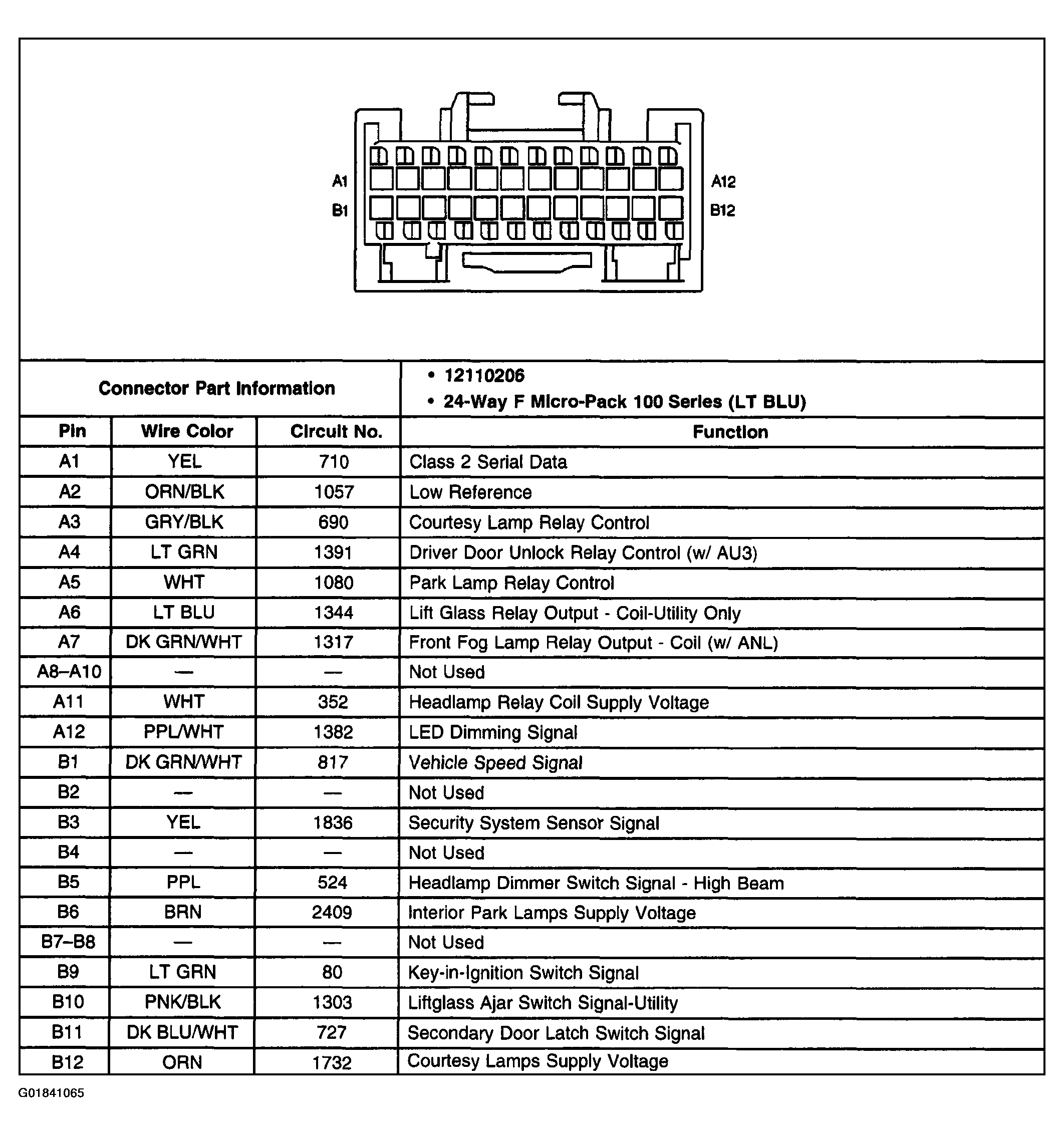

Fig 2: Body Control Module Connector C2

Courtesy of GENERAL MOTORS CORP.

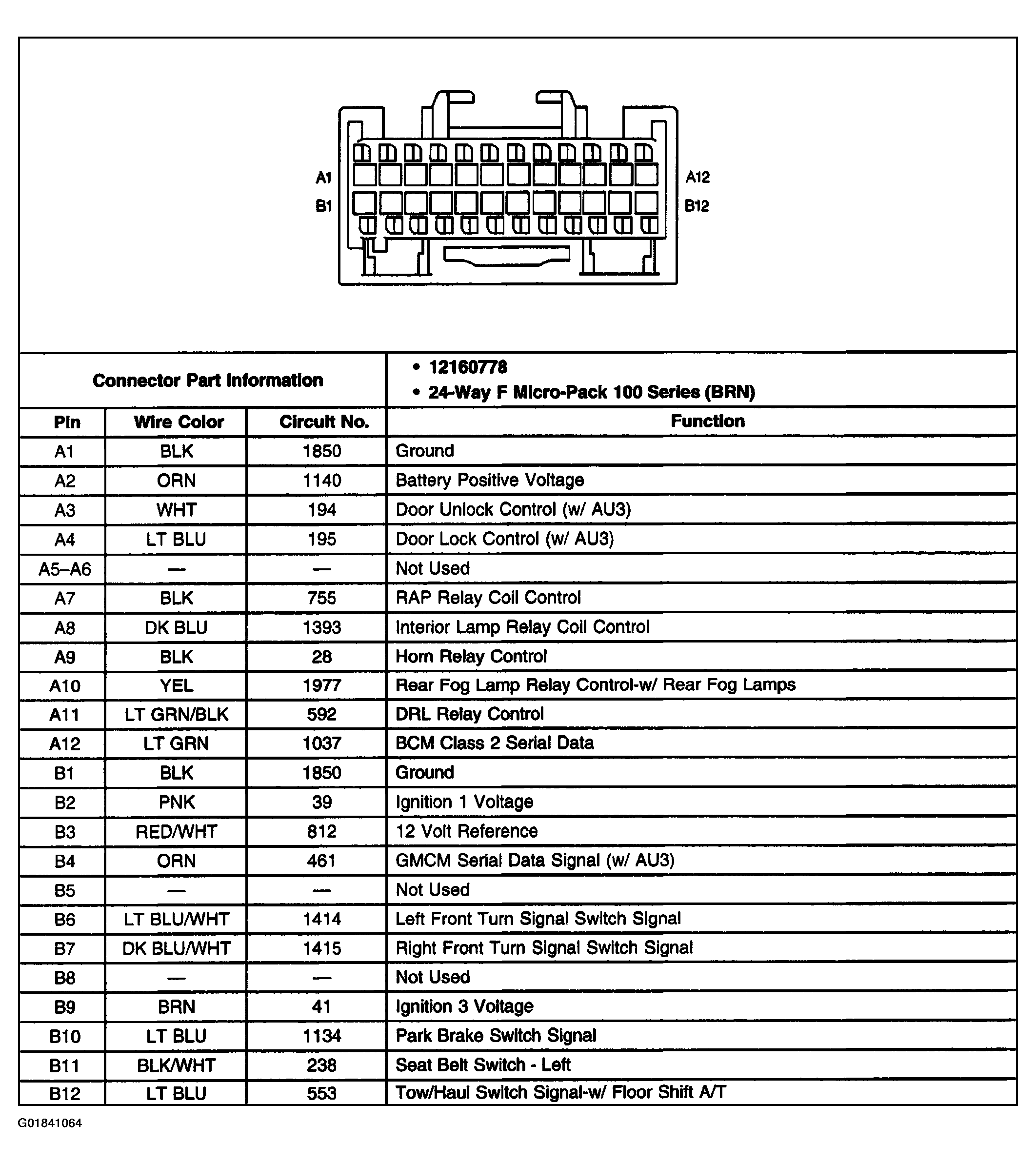

Fig 3: Body Control Module Connector C3

Courtesy of GENERAL MOTORS CORP.
