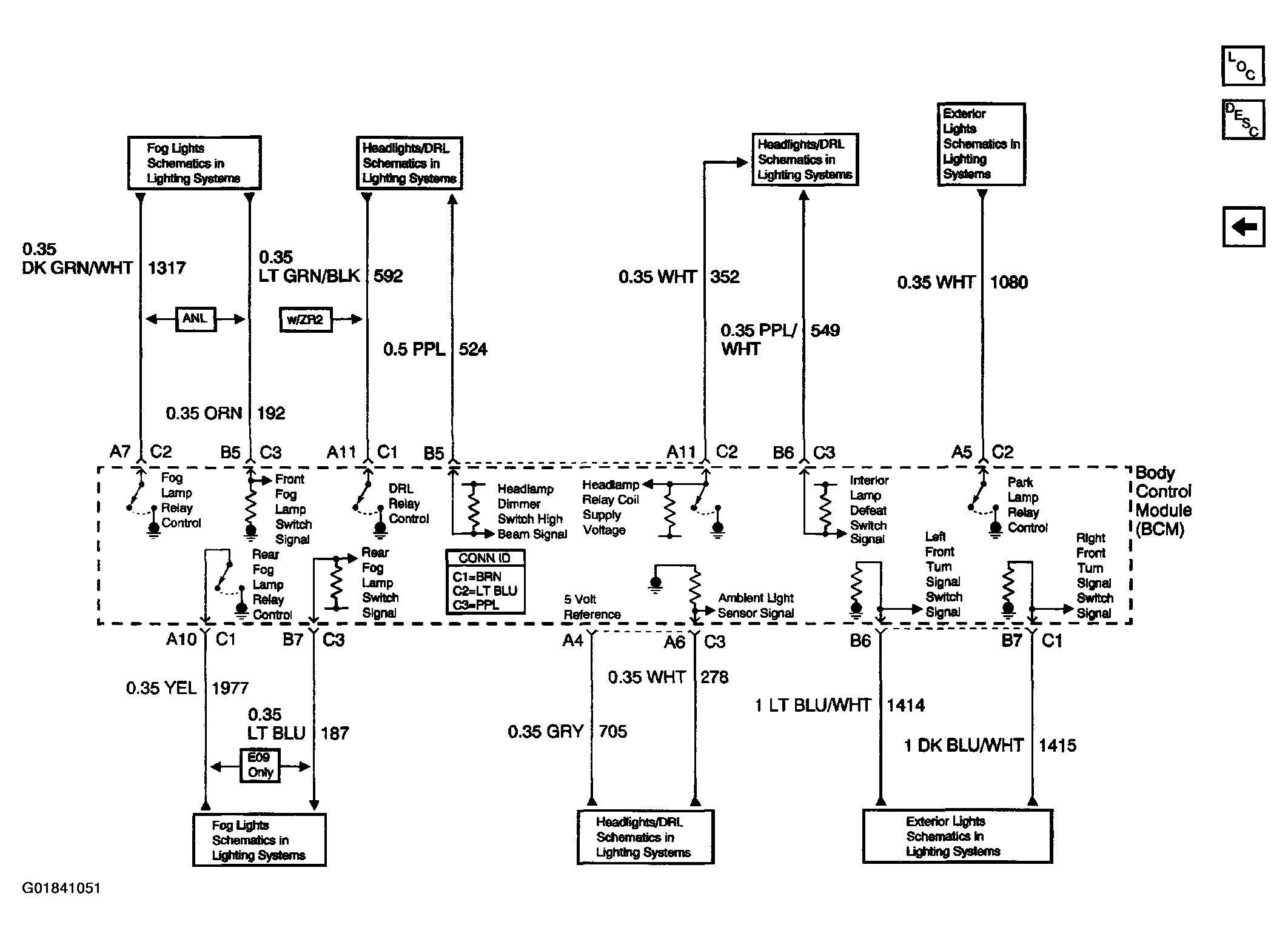

Home › GMC › 2002 › Jimmy 2D Utility, Part Time, Automatic › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Body Control System › Schematic & Routing Diagrams › Body Control Module Schematics › Exterior Lights References
