Keyless Entry Component Views

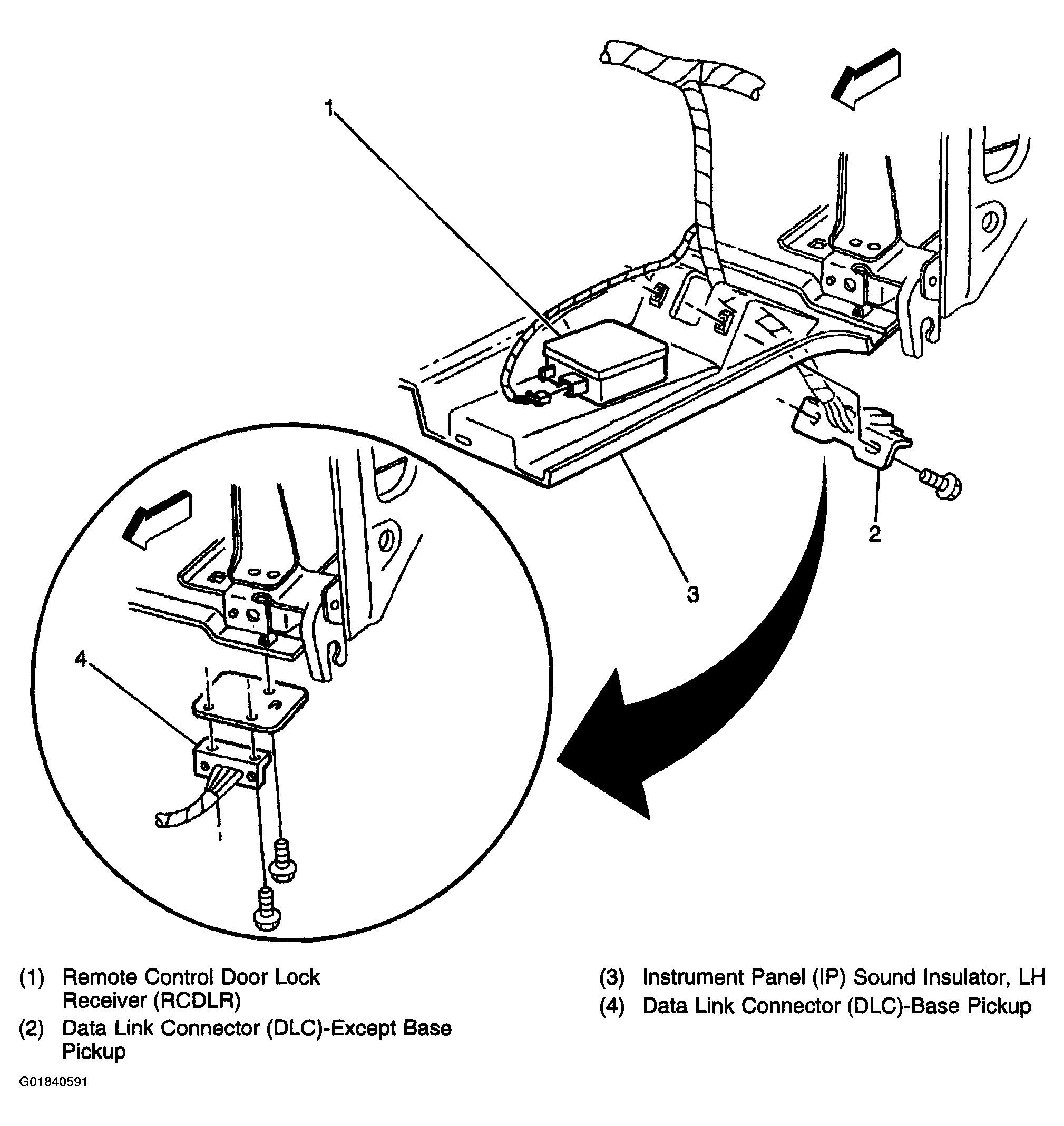

Fig 1: Body Wiring Harness, LH Instrument Panel and Remote Control Door Lock Receiver (RCDLR)
G01840591Courtesy of GENERAL MOTORS CORP.
