Installation Procedure

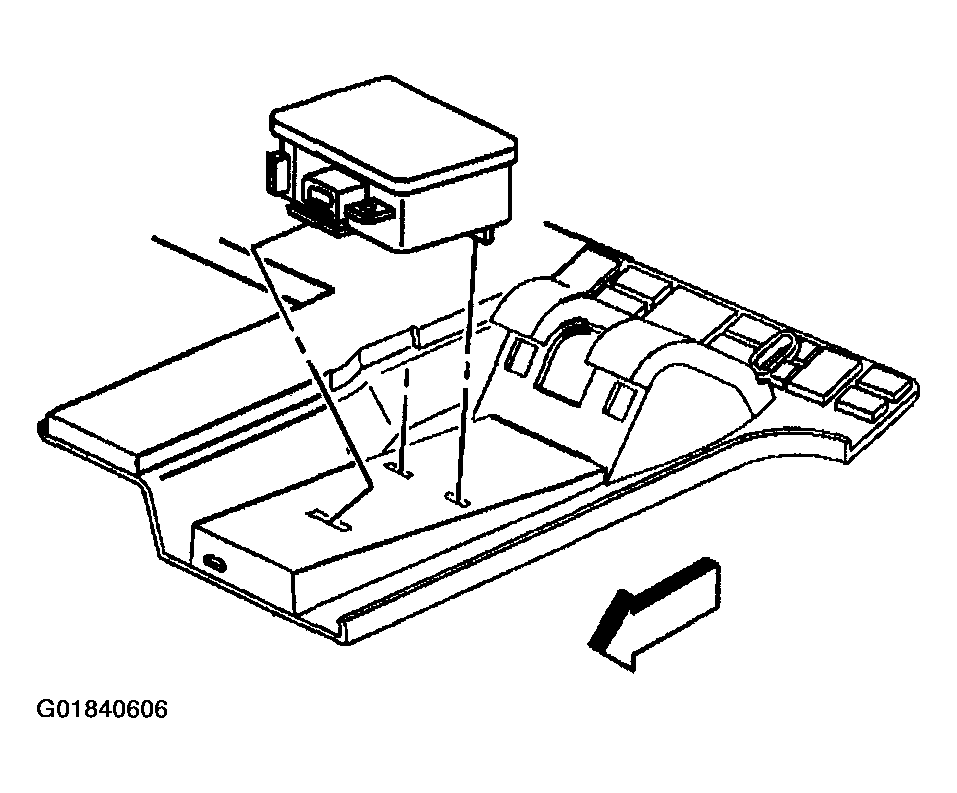

- Install the remote control door lock receiver from the instrument panel sound insulator by snapping it.
- Connect the electrical connector.
- Install the left side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
- Reprogram the transmitters. Refer to Transmitter Programming .
- Test the operation of the system.
