Removal Procedure

  1. Remove the left side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  2. Disconnect the electrical connector.
  3. Remove the remote control door lock receiver from the instrument panel sound insulator by unsnapping it.

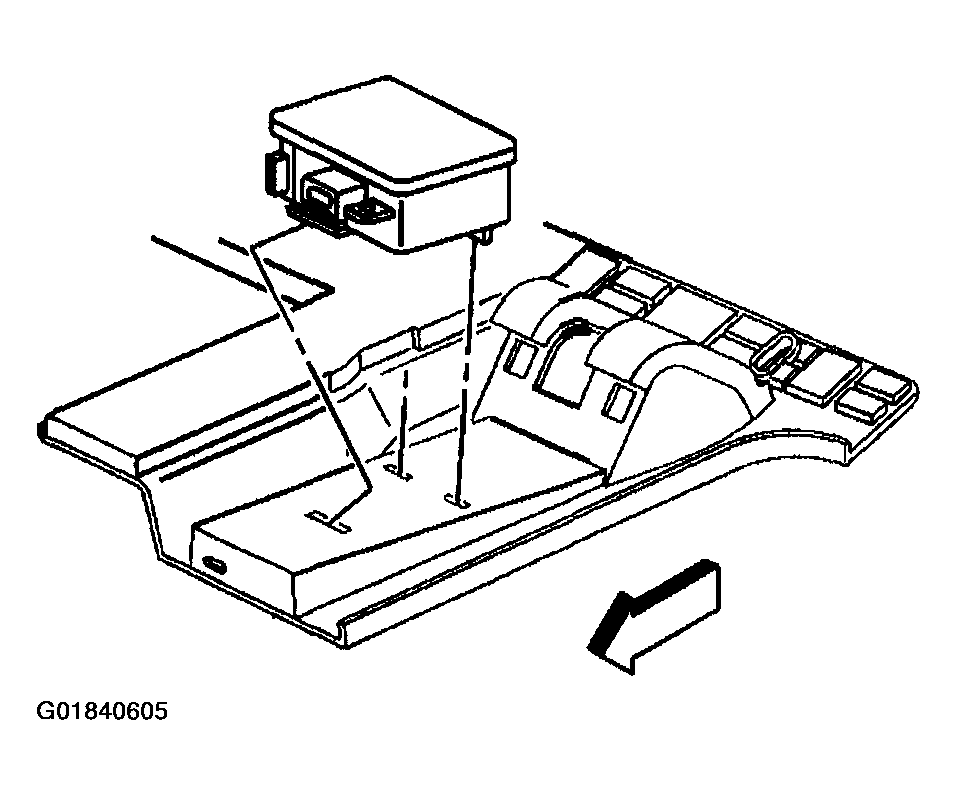

    Fig 1: Remove Remote Control Door Lock Receiver
    G01840605Courtesy of GENERAL MOTORS CORP.
