Schematic and Routing Diagrams

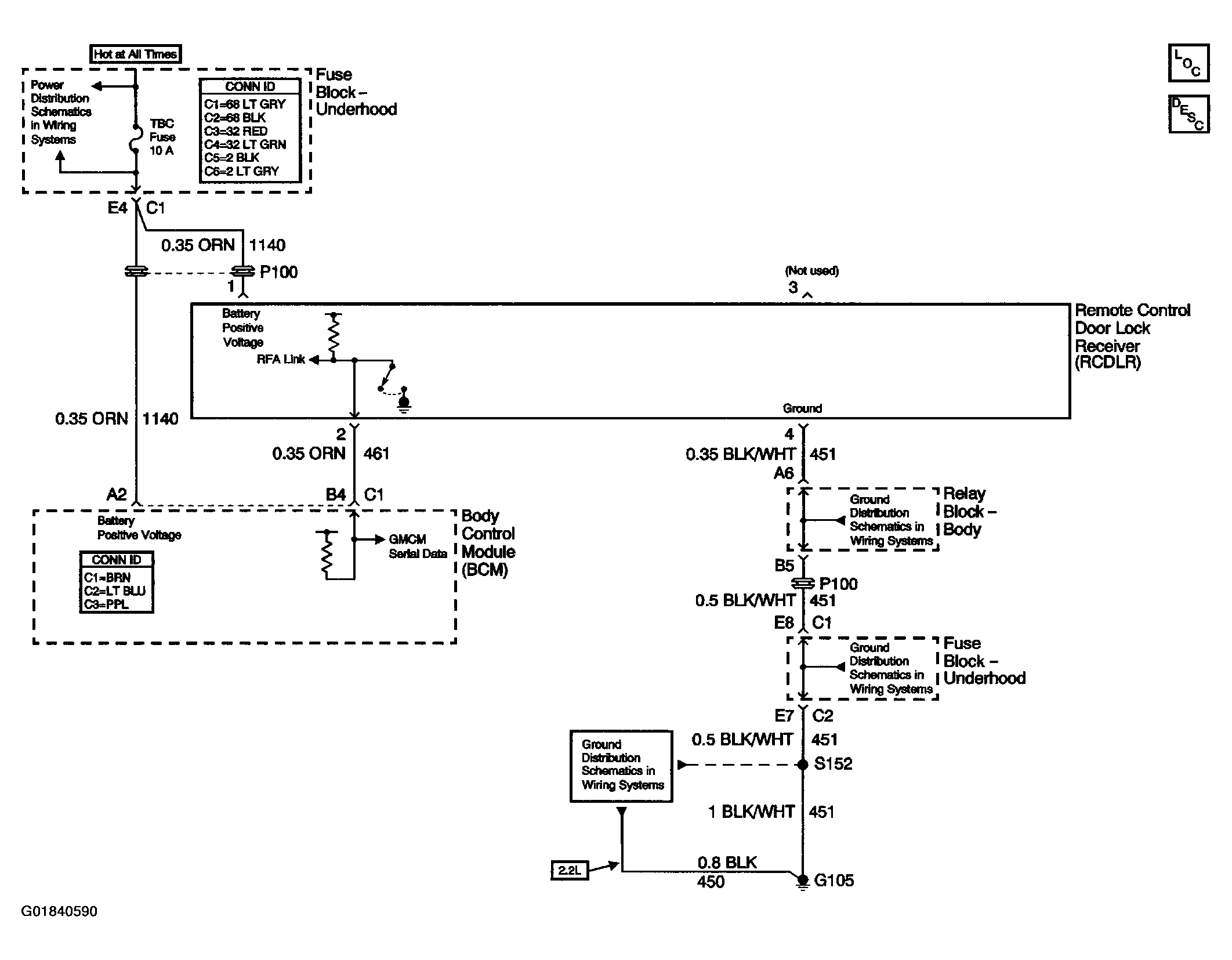

Fig 1: Keyless Entry Schematics
G01840590Courtesy of GENERAL MOTORS CORP.
