Theft Deterrent System Component Views

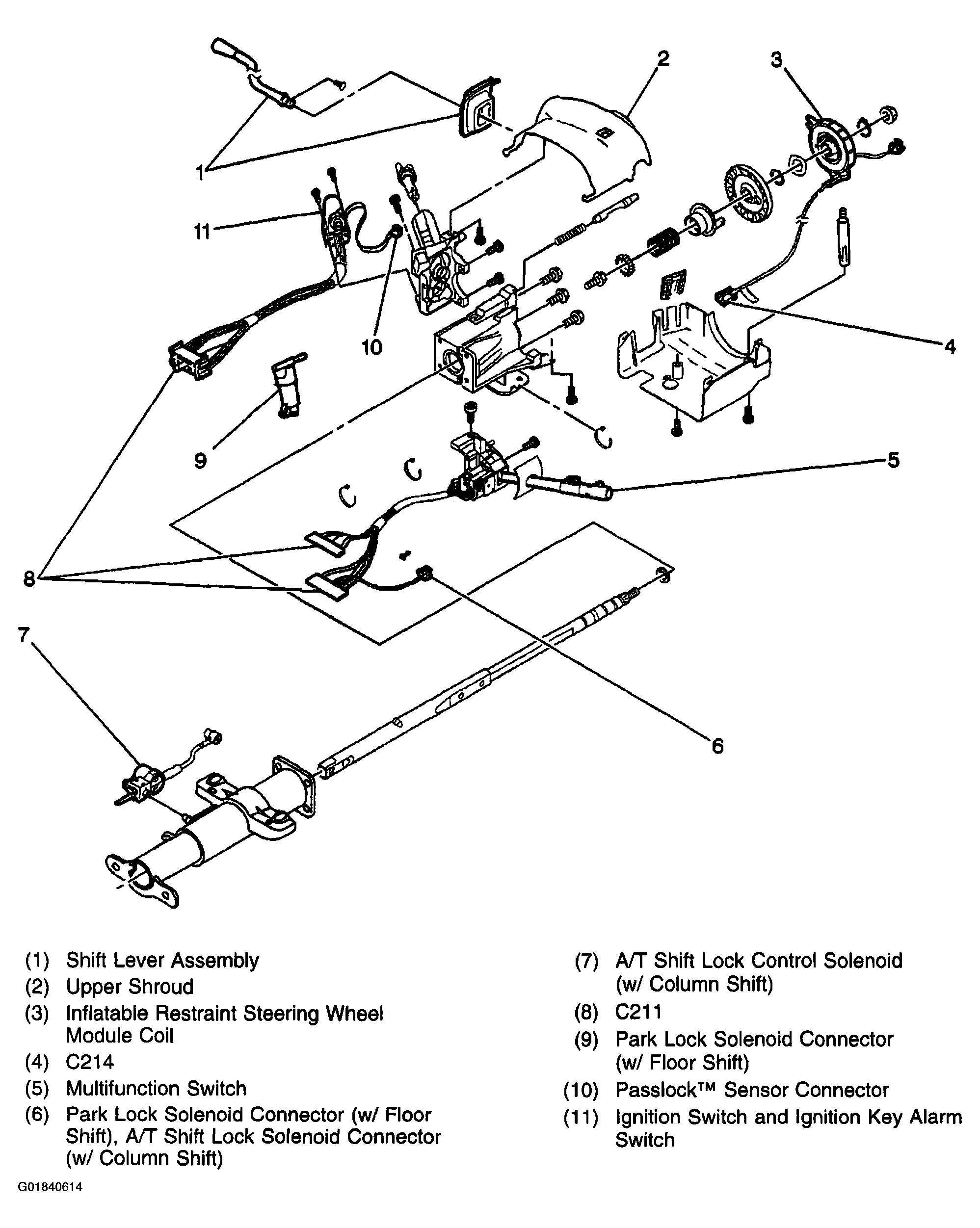

Fig 1: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

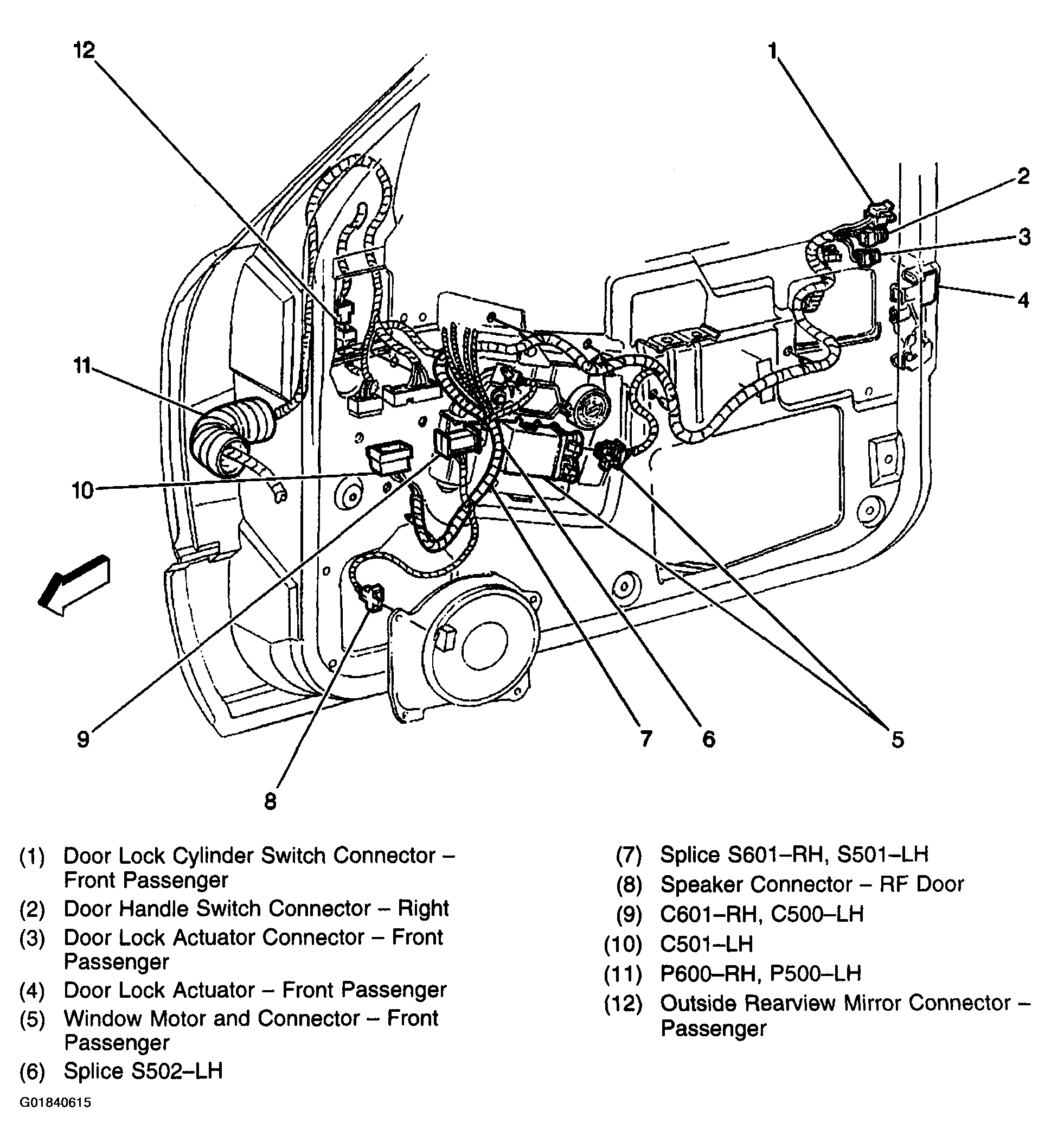

Fig 2: Front Door Components (Passenger Door Shown; Driver Similar)

Courtesy of GENERAL MOTORS CORP.
