Power Door Systems Component Views

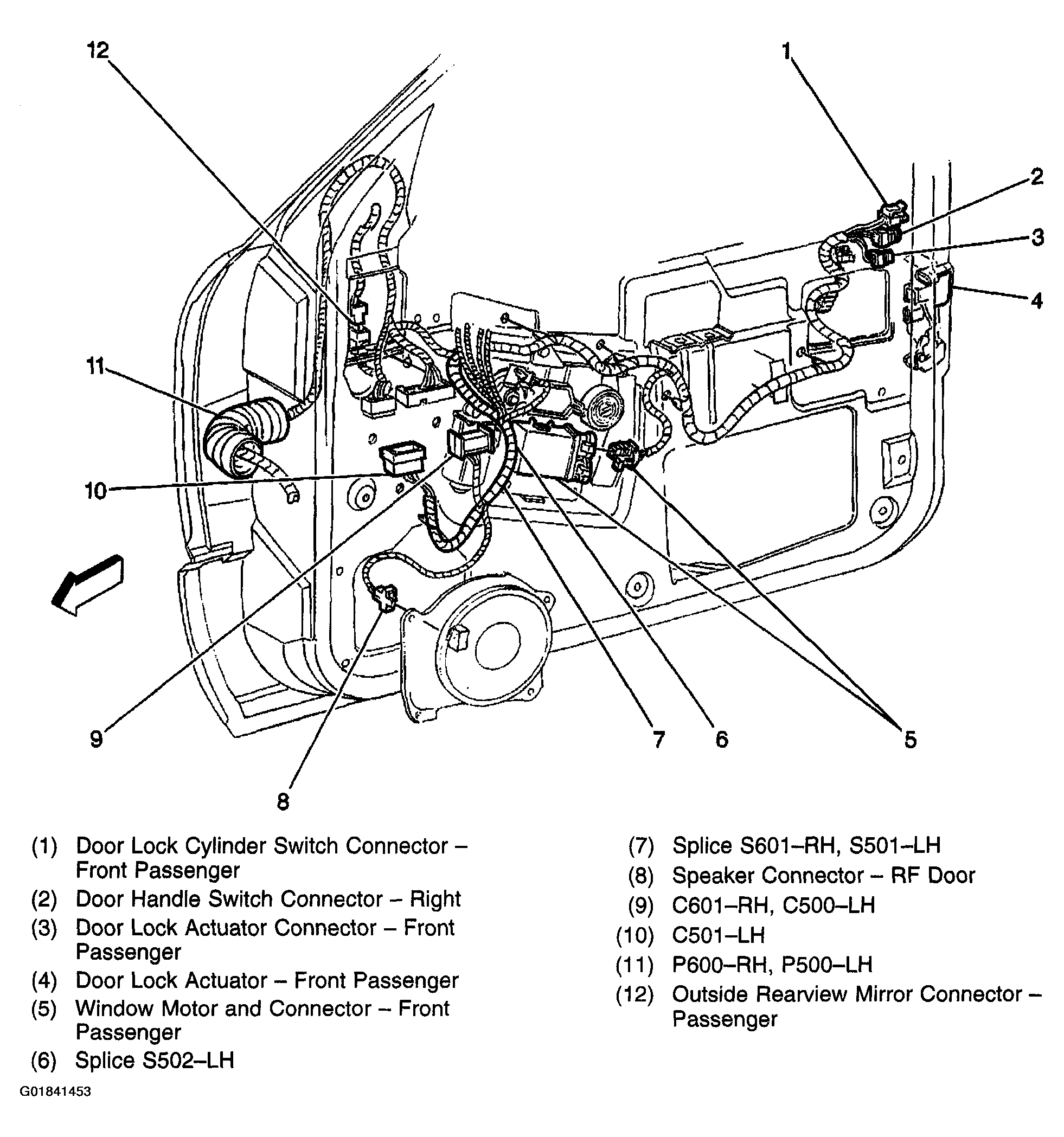

Fig 1: Front Passenger Door Shown, Driver Similar

Courtesy of GENERAL MOTORS CORP.

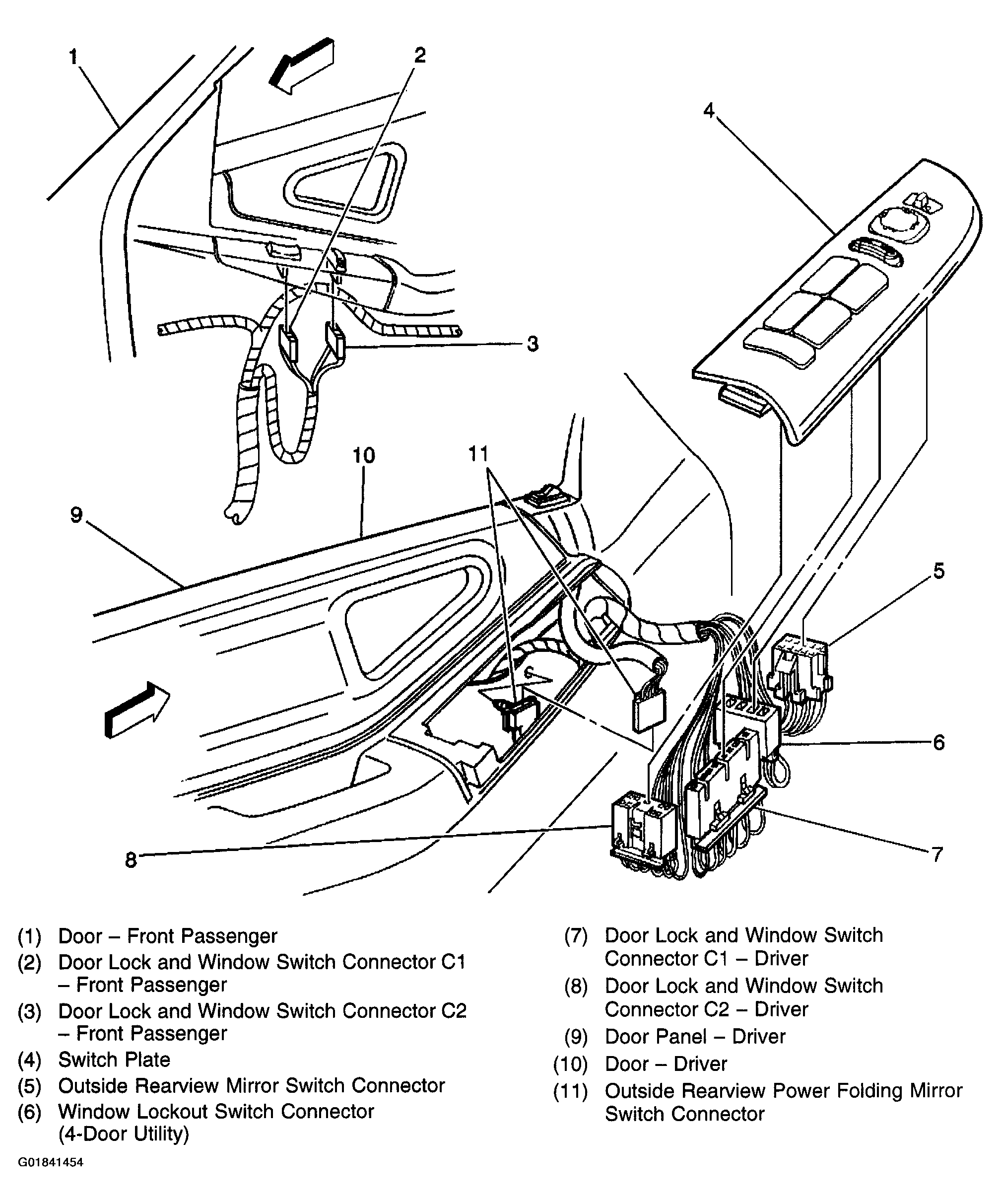

Fig 2: Door Harness Wiring Switches, Front

Courtesy of GENERAL MOTORS CORP.

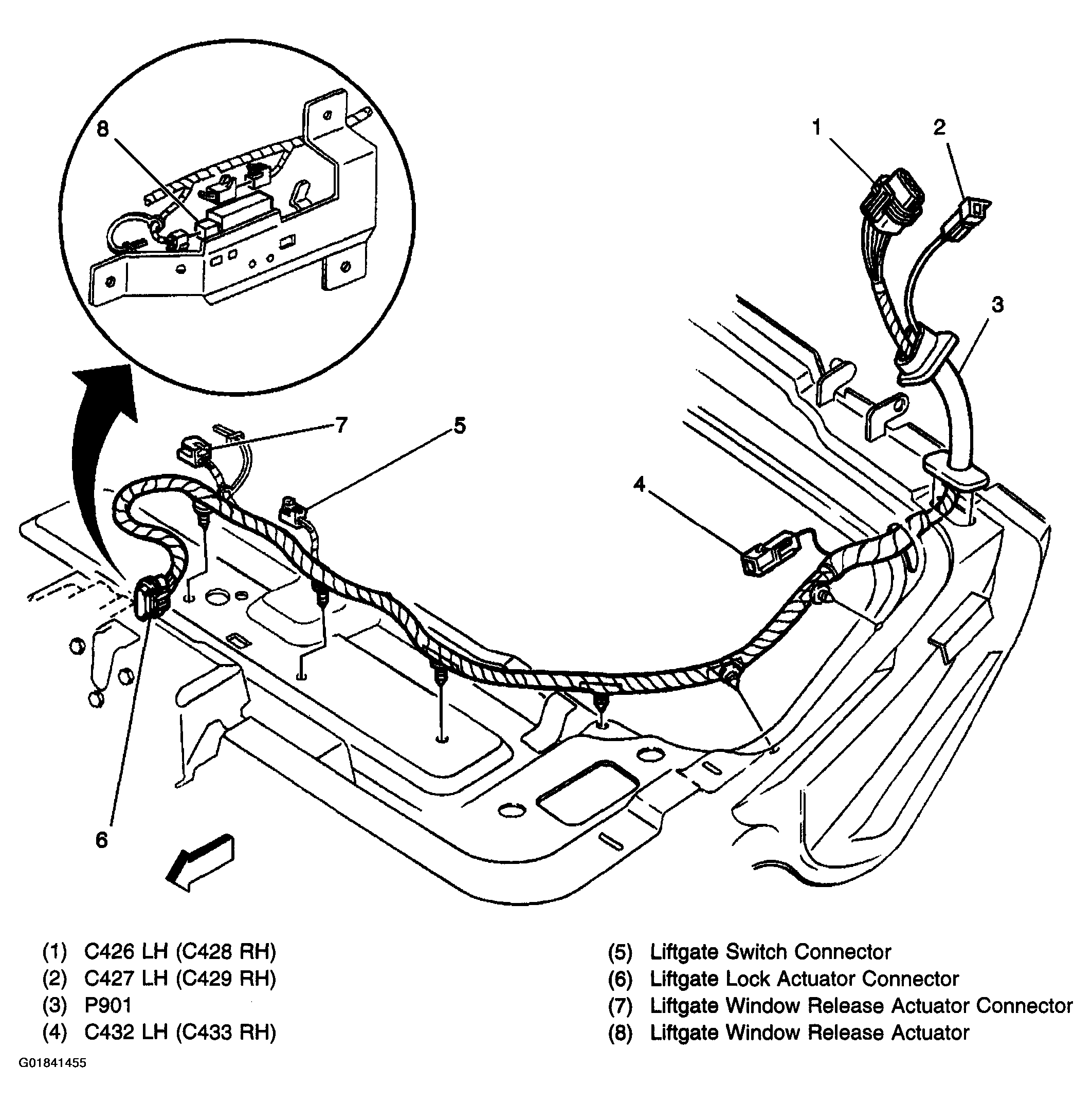

Fig 3: Liftgate LH (Utility)

Courtesy of GENERAL MOTORS CORP.

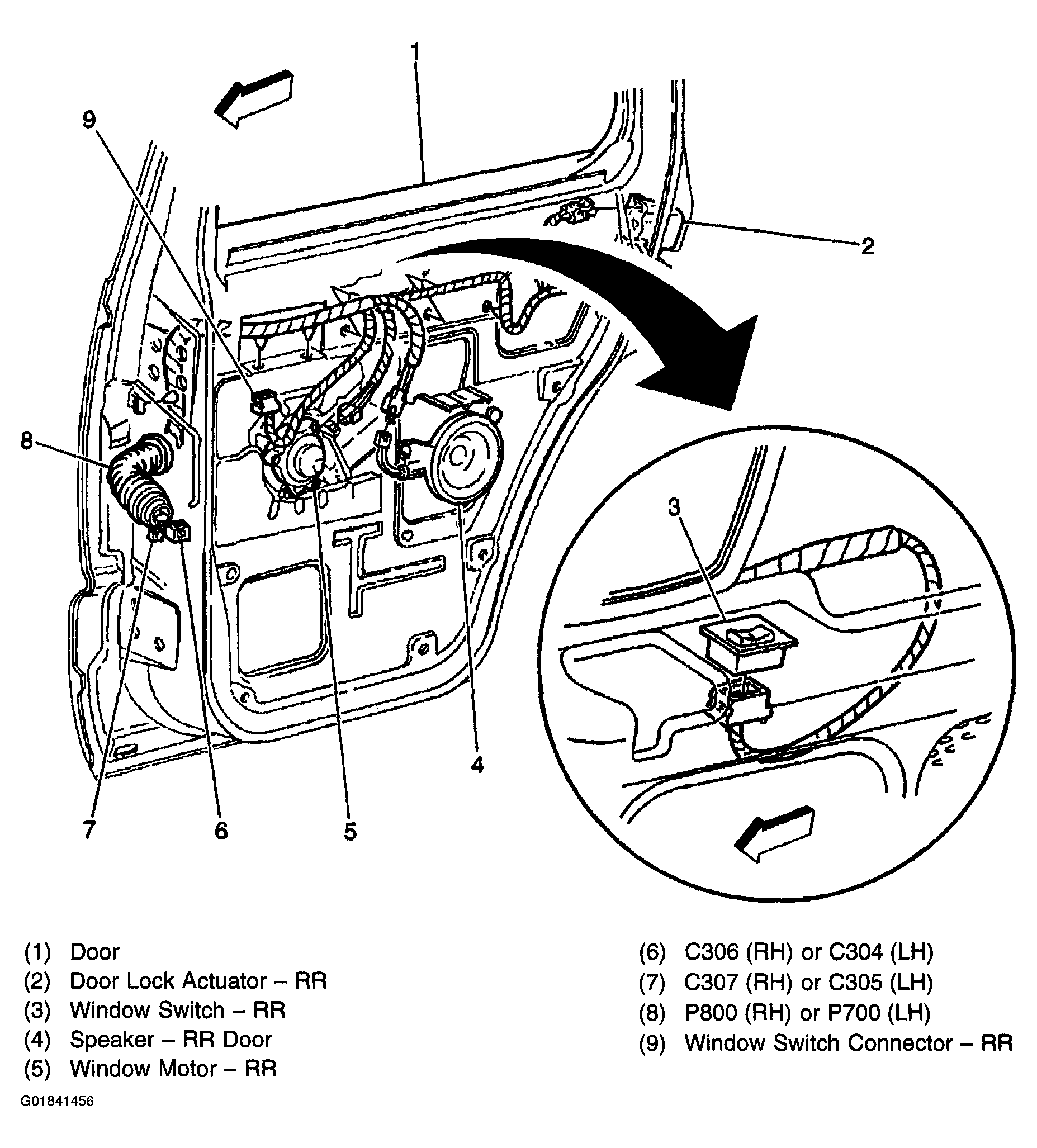

Fig 4: Door Wiring Harness (RR Shown, LR Similar)

Courtesy of GENERAL MOTORS CORP.

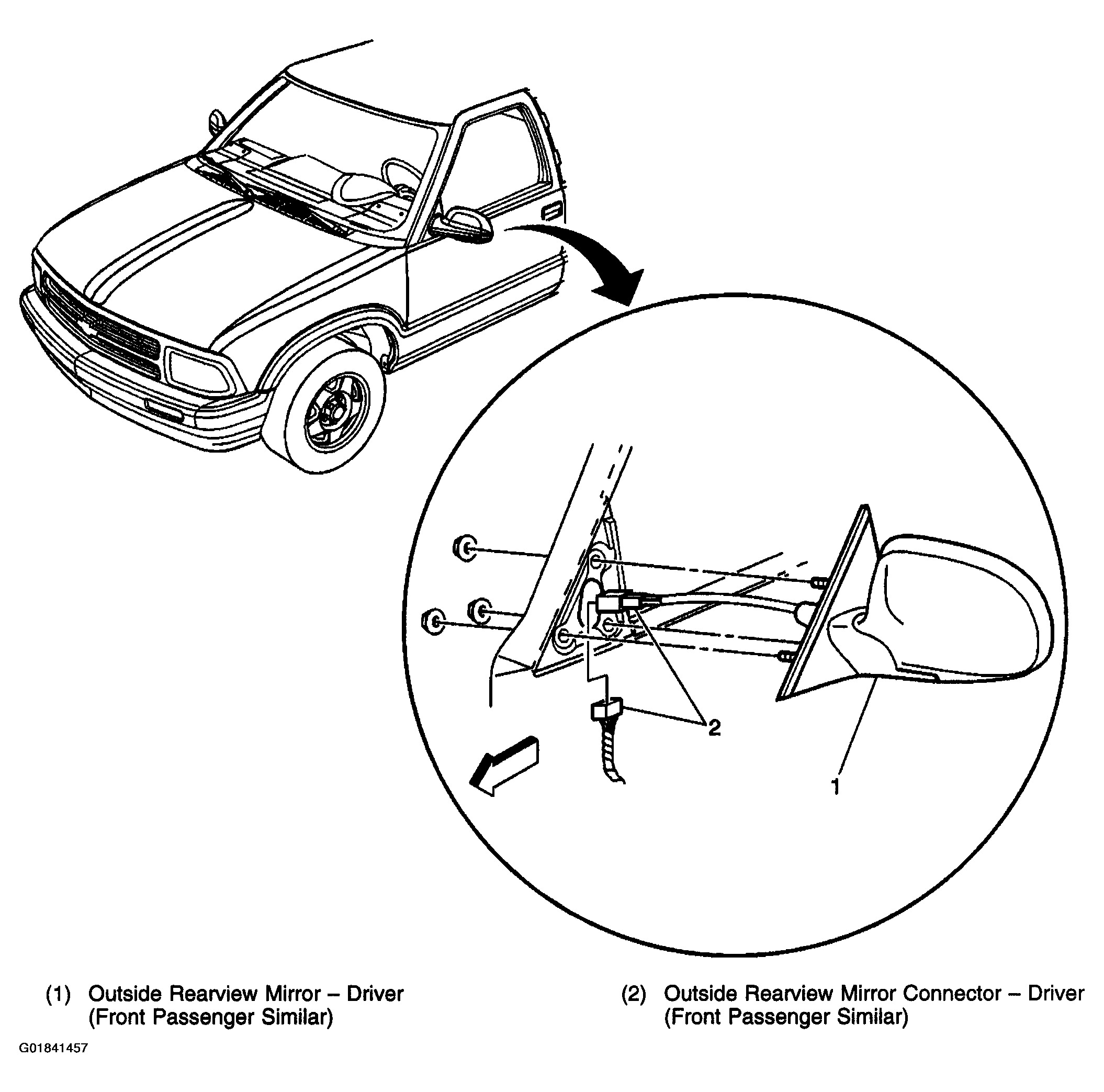

Fig 5: Outside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.
