Installation Procedure

Install the switch assembly to the trim panel by snapping the switch into the plastic retaining clips.

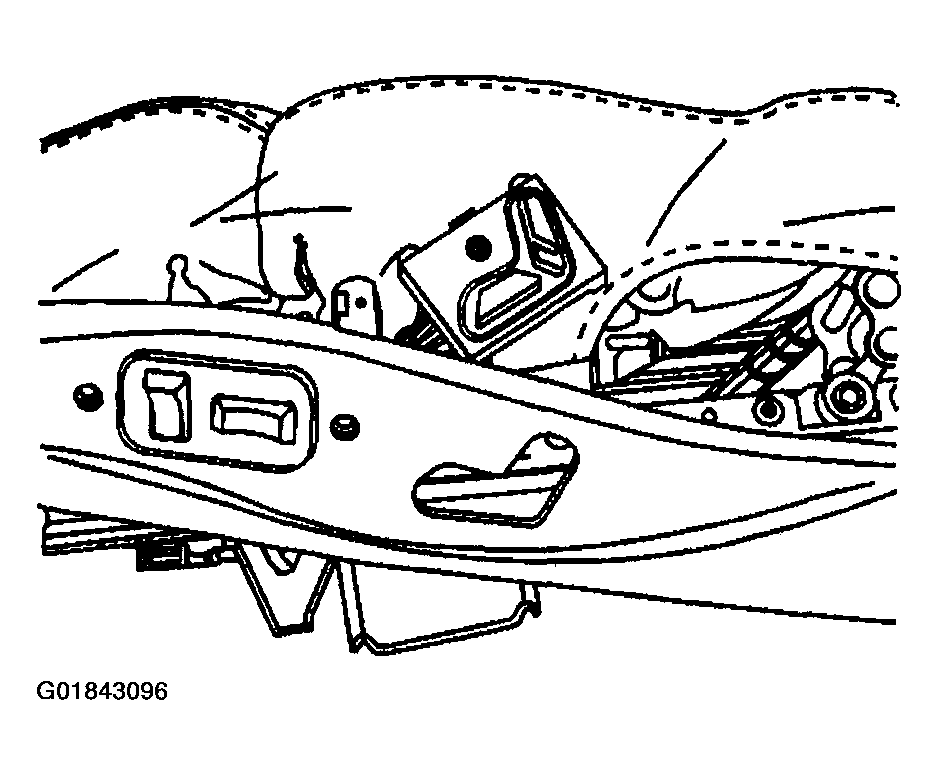

Fig 1: Locating Power Seat Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the switch.

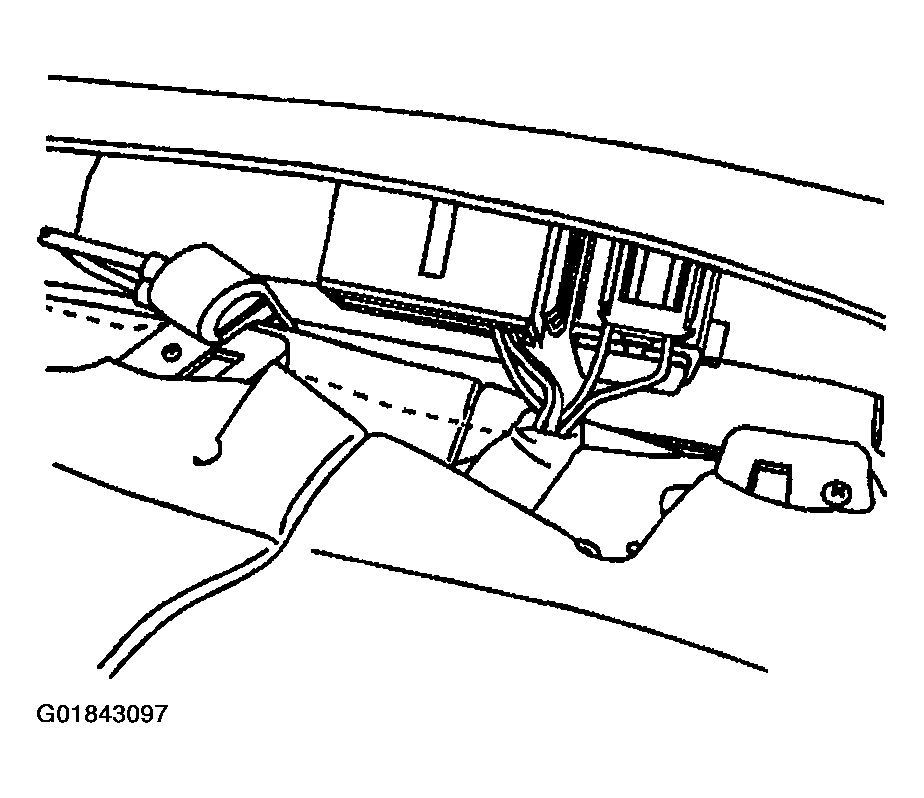

Fig 2: Locating Power Seat Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the trim panel to the seat with the 3 screws.
Install the seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET or SEAT REPLACEMENT - BENCH .

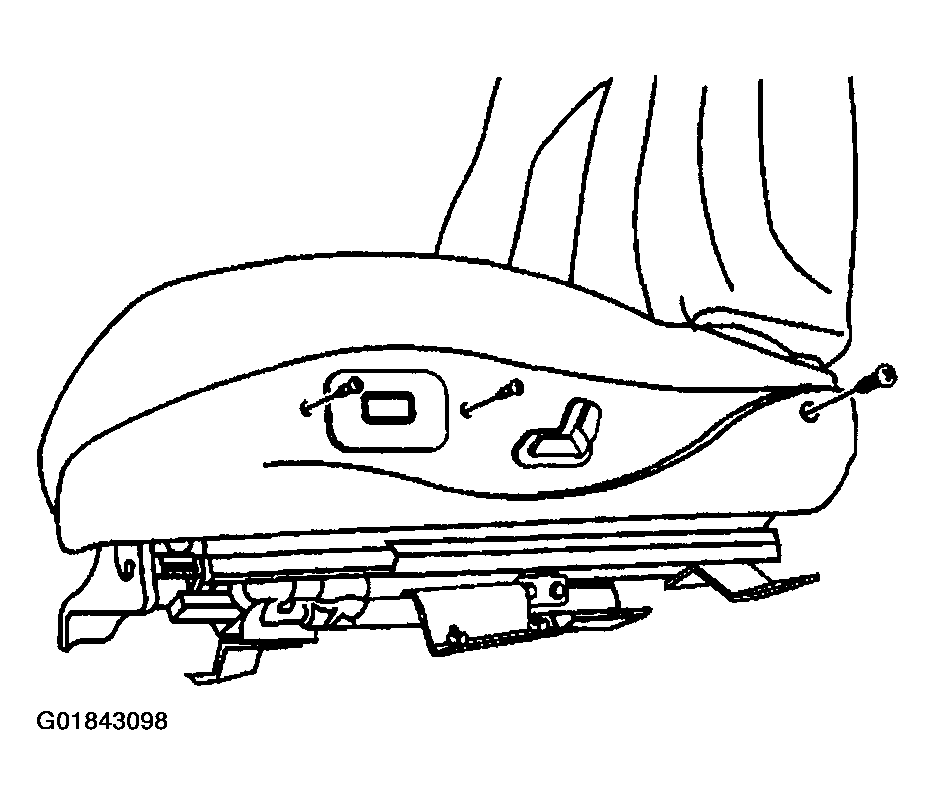

Fig 3: Locating Trim Plate
Courtesy of GENERAL MOTORS CORP.
