Jimmy 2D Utility, Part Time, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Door System, Mirror System & Window System
›
Diagnostic Information and Procedures
›
Scan Tool Output Controls
Scan Tool Output Controls

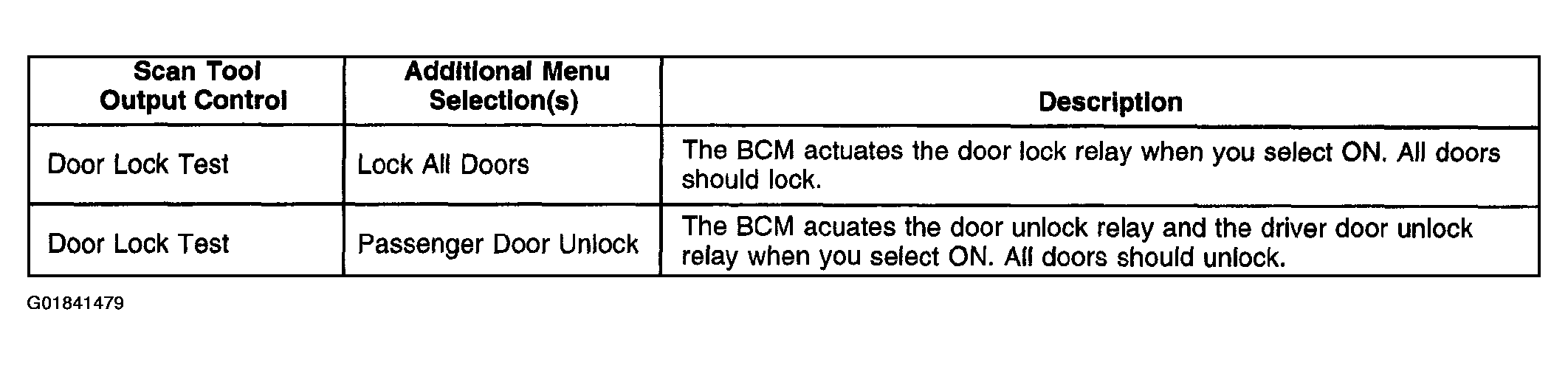

Fig 1: Body Control Module
Courtesy of GENERAL MOTORS CORP.

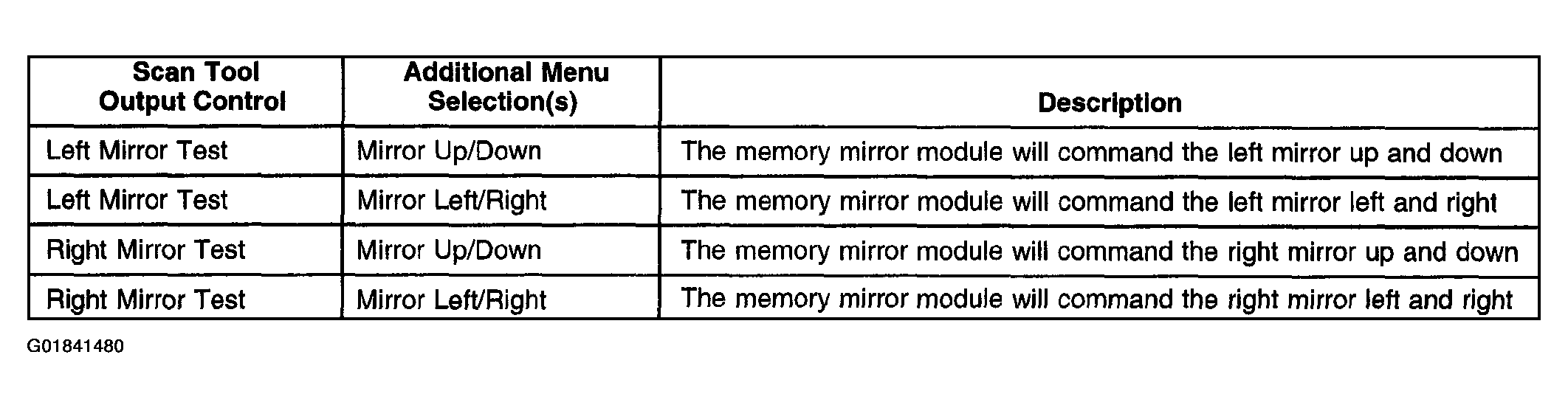

Fig 2: Memory Mirror Module
Courtesy of GENERAL MOTORS CORP.

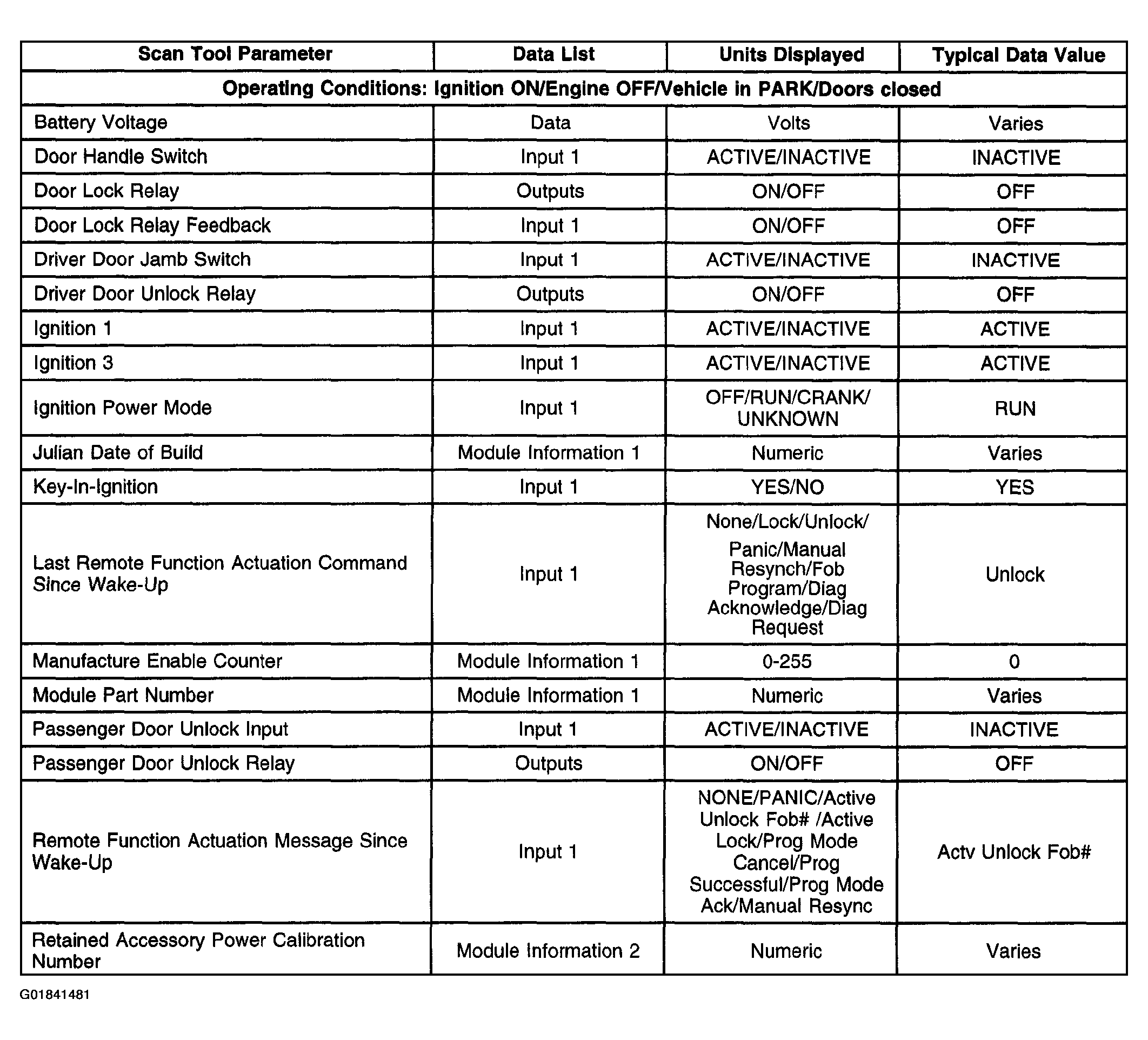

Fig 3: Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

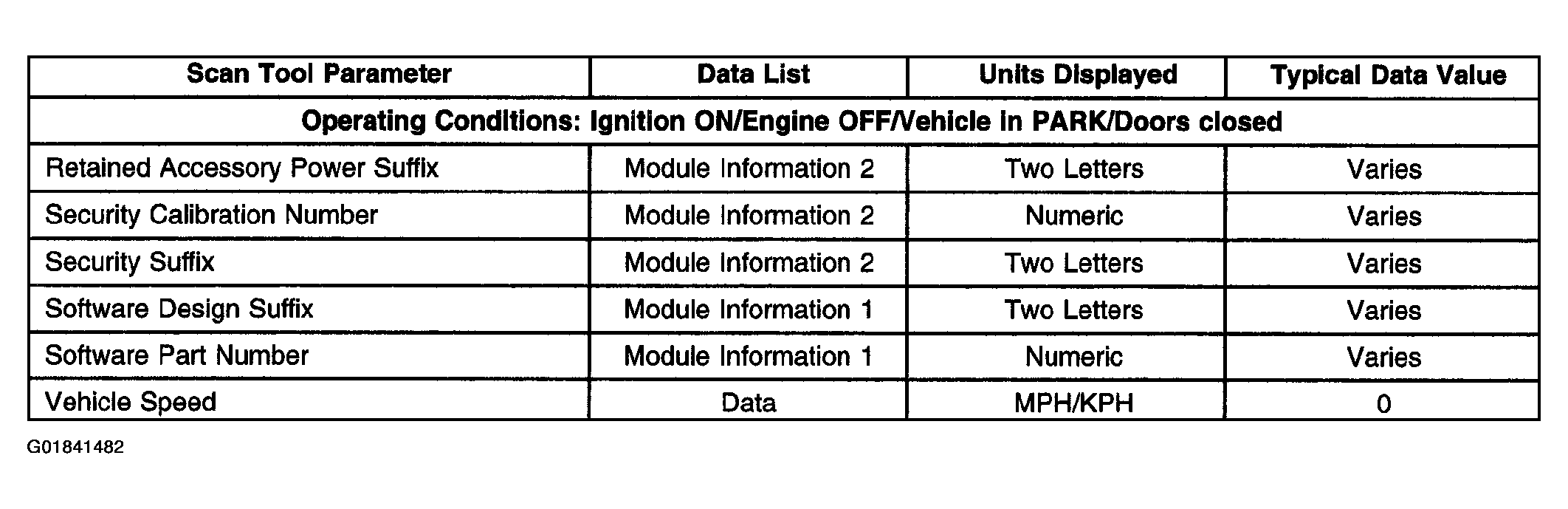

Fig 4: Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
