Installation Procedure

Route the inside door handle and the lock rod through the appropriate openings in the bezel.
Align the lock rod to the door lock knob.
Position the bezel and snap the bezel into place.
Install the rear inside door handle bezel to the door trim panel.

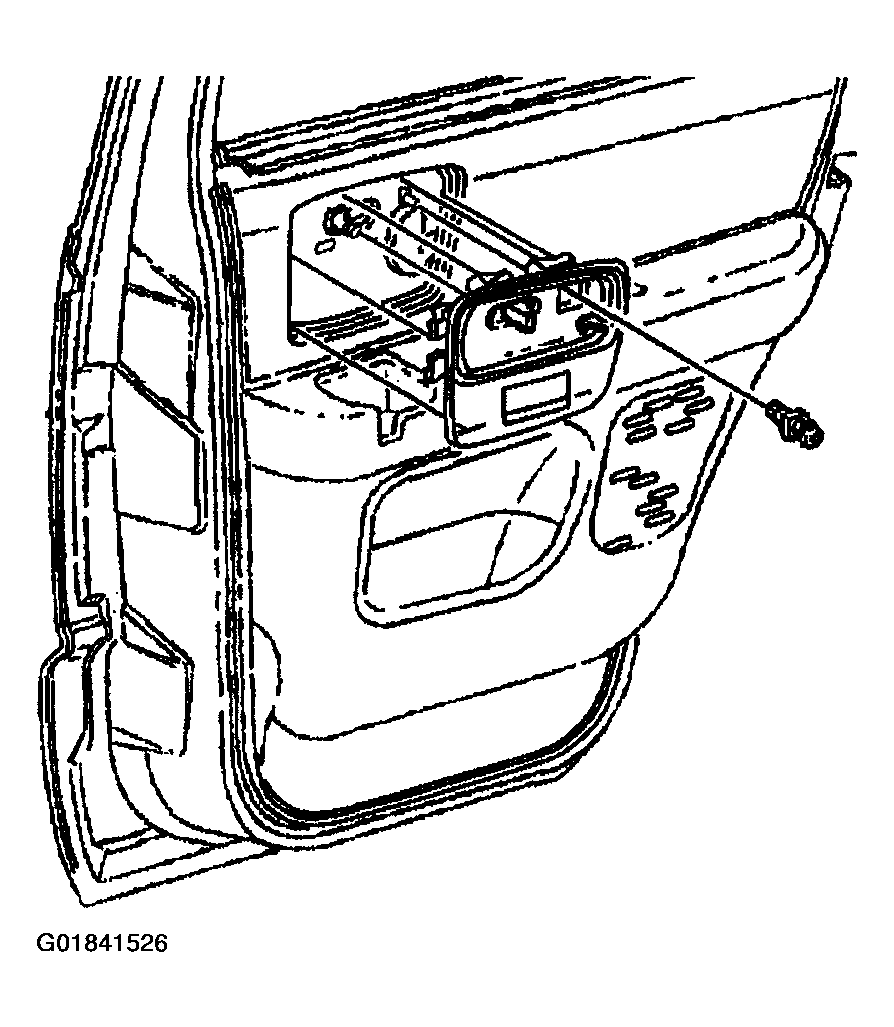

Fig 1: Installing Inside Door Handle Bezel To Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the front inside door bezel to the door trim panel.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Insert the screw that retains the inside door handle bezel to the door trim panel.
Tighten

Tighten the screw to 1.9 N.m (17 lb in).

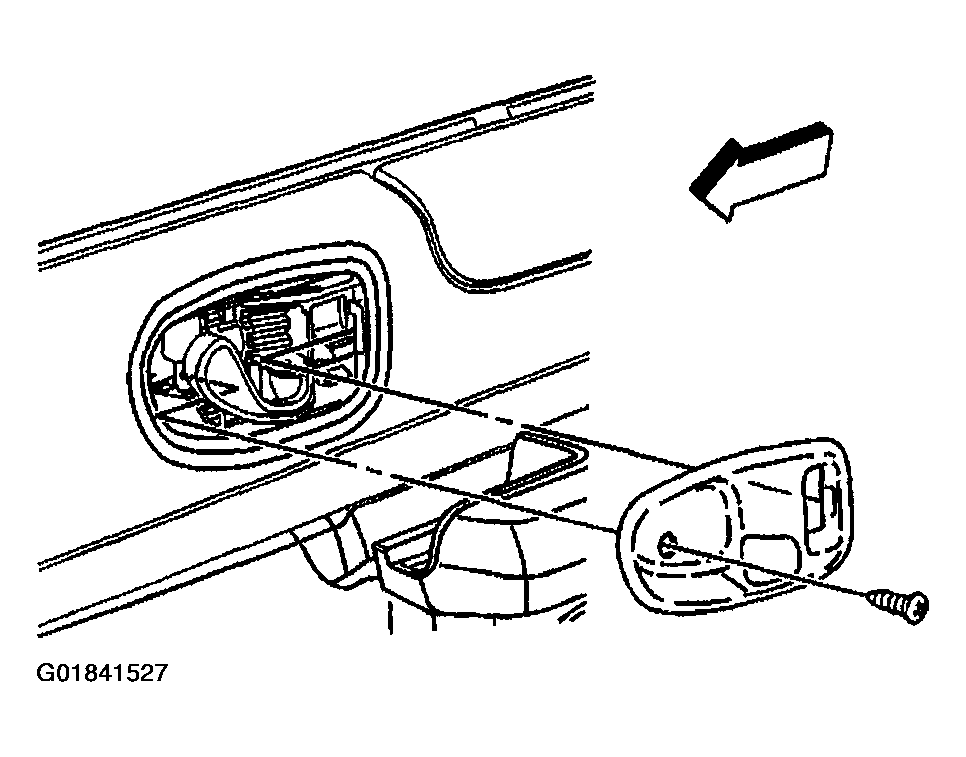

Fig 2: Inserting Screw That Retains Inside Door Handle Bezel To Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
