Installation Procedure

  1. Connect the electrical connector to the switch.

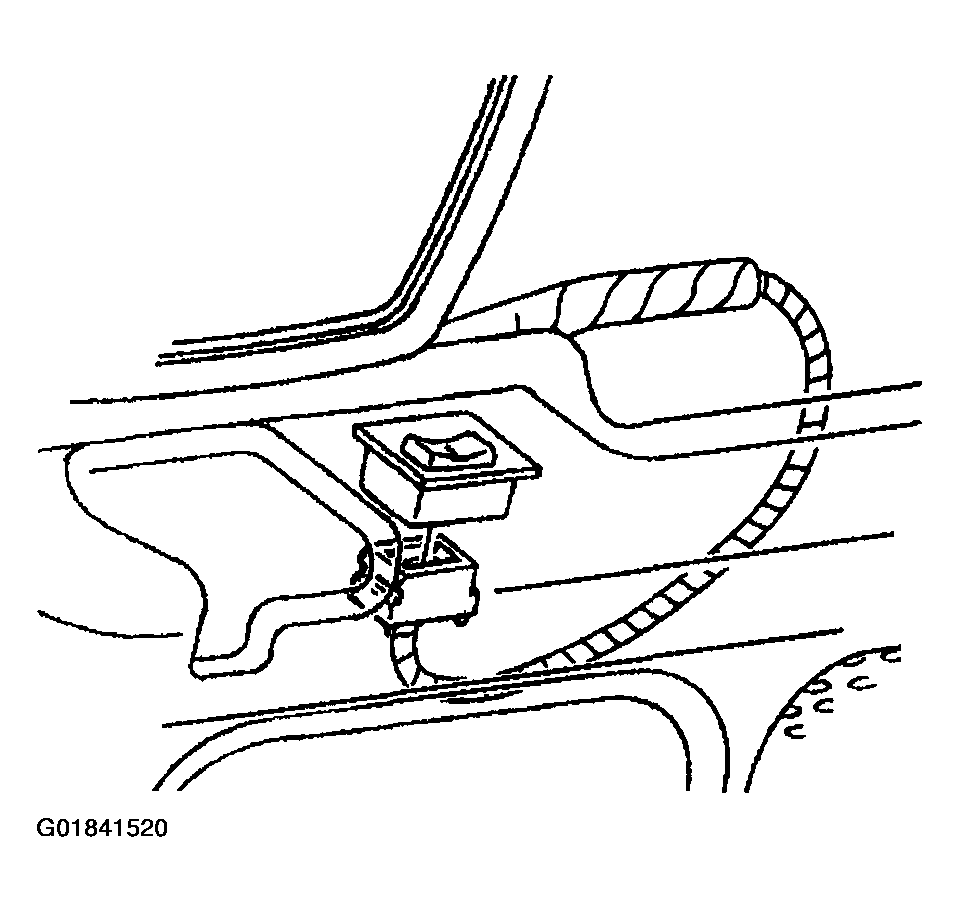

    Fig 1: Connecting Electrical Connector To Switch
    G01841520Courtesy of GENERAL MOTORS CORP.
  2. Install the power window switch to the trim panel by pressing down. Ensure that the retainers lock into place.

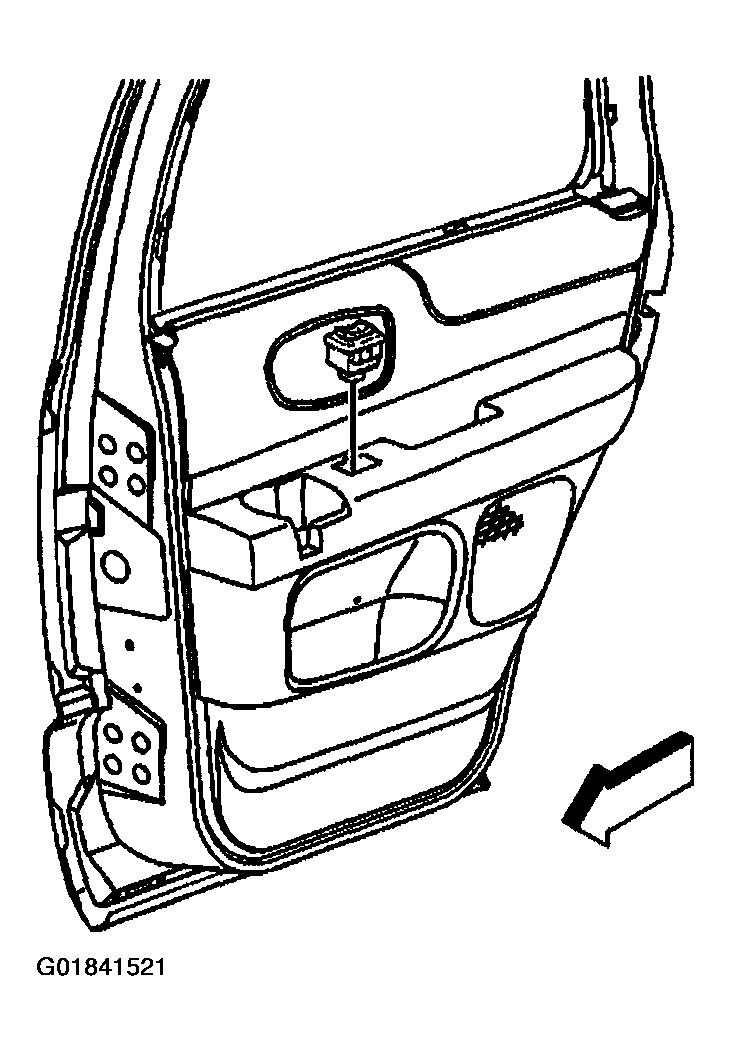

    Fig 2: Installing Power Window Switch To Trim Panel By Pressing Down
    G01841521Courtesy of GENERAL MOTORS CORP.
