Removal Procedure

  1. Open the window.
  2. Remove outer door weather strip from the door.

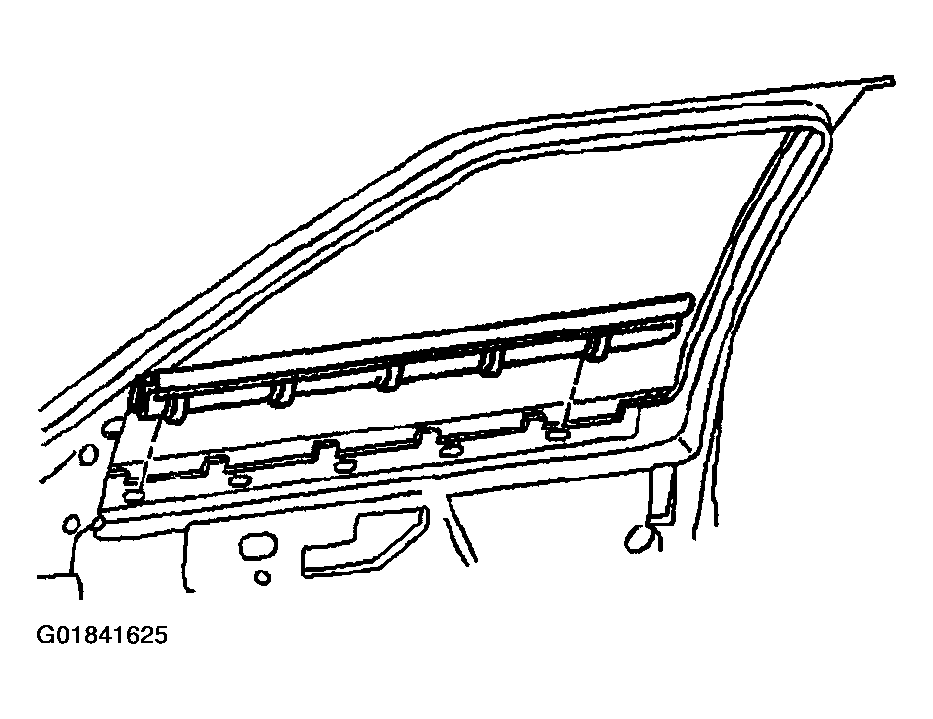

    Fig 1: Removing Outer Door Weather Strip From Door - Window
    G01841625Courtesy of GENERAL MOTORS CORP.
