Stationary Windows Component Views

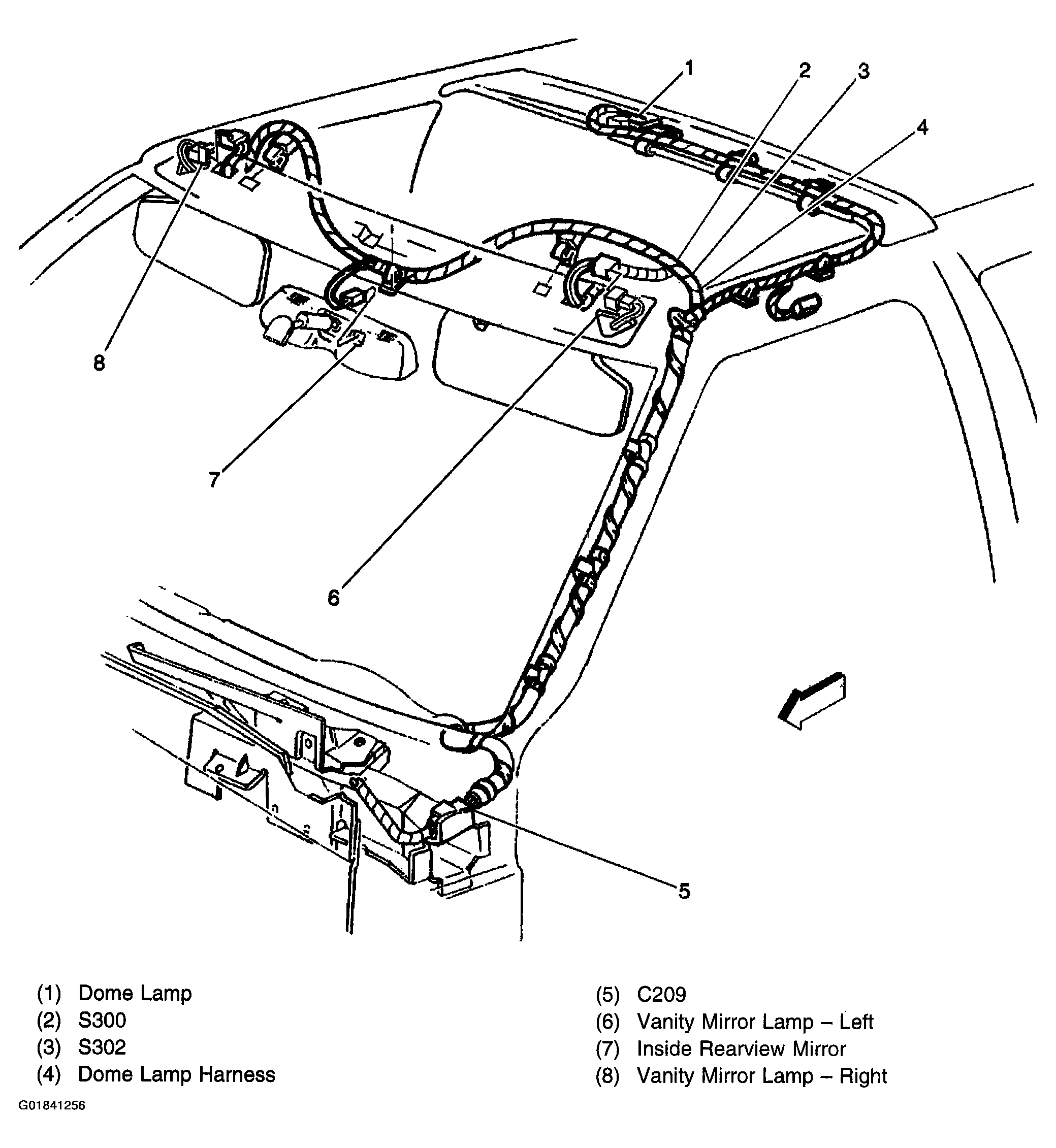

Fig 1: Dome Lamp Harness w/o Driver Information Center (DIC) - Utility

Courtesy of GENERAL MOTORS CORP.

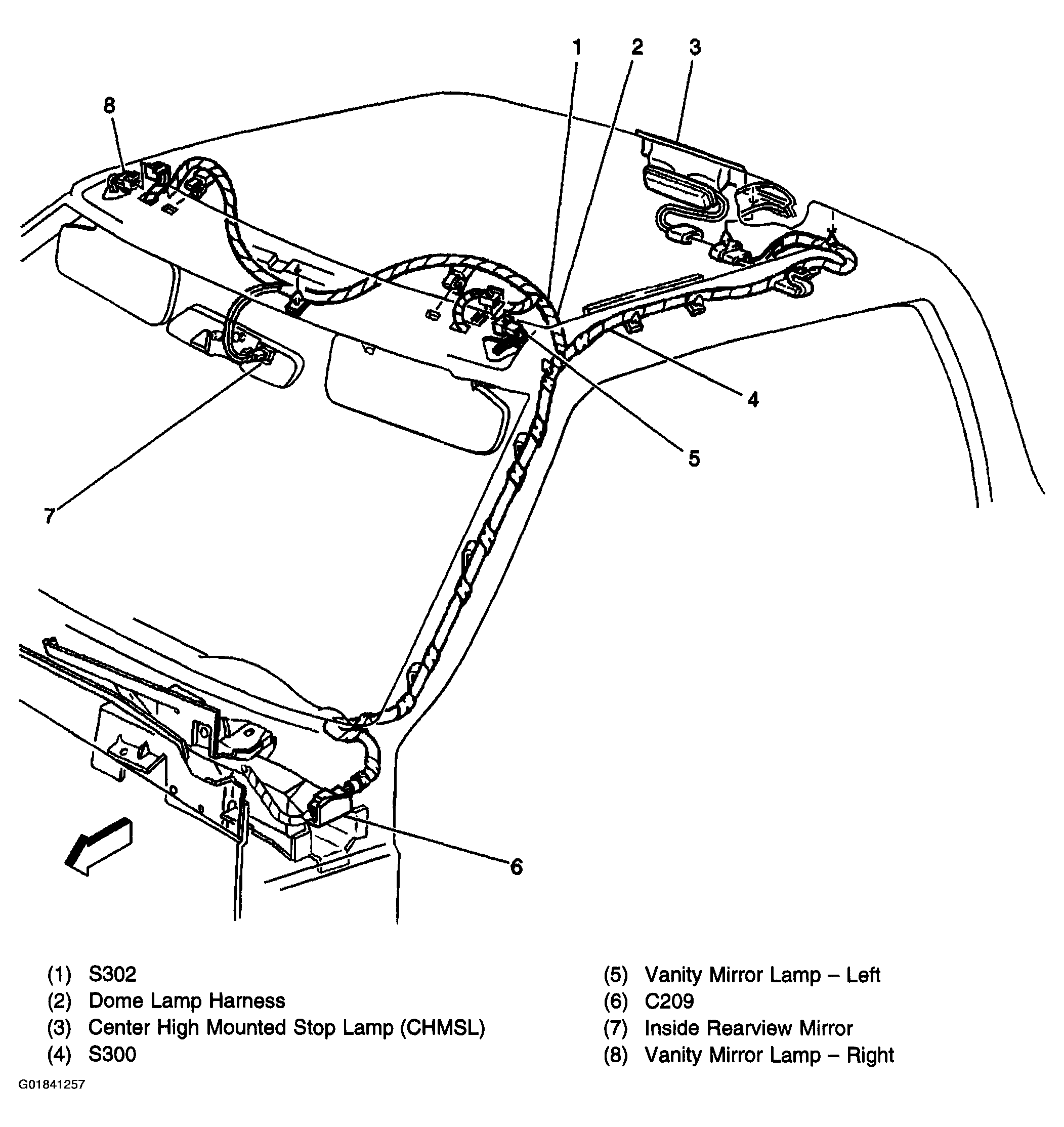

Fig 2: Dome Lamp Harness - Regular Cab Pickup

Courtesy of GENERAL MOTORS CORP.

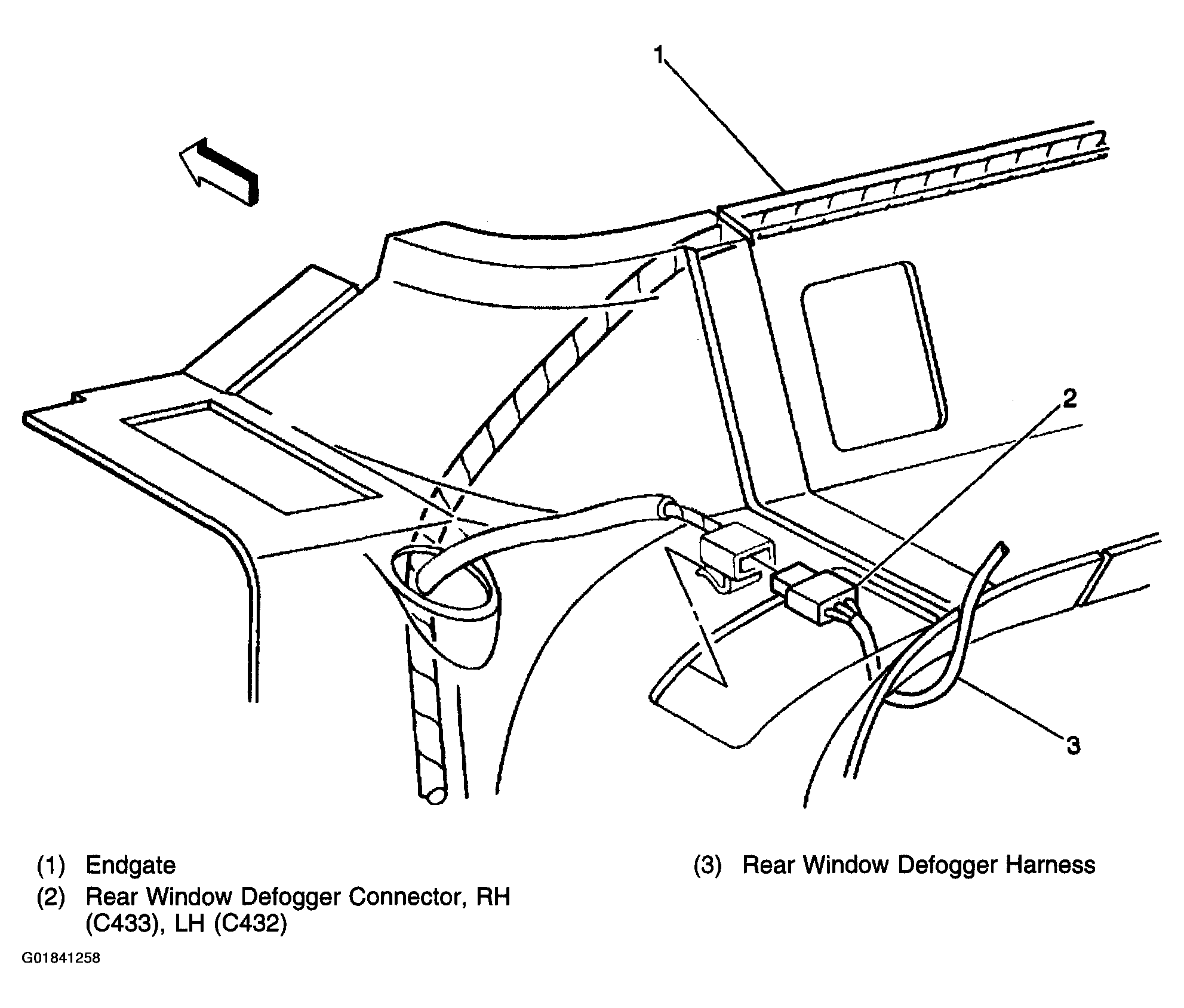

Fig 3: Body Opening Frame, Rear Window Defogger, Extension Harness

Courtesy of GENERAL MOTORS CORP.
