Horns Connector End Views

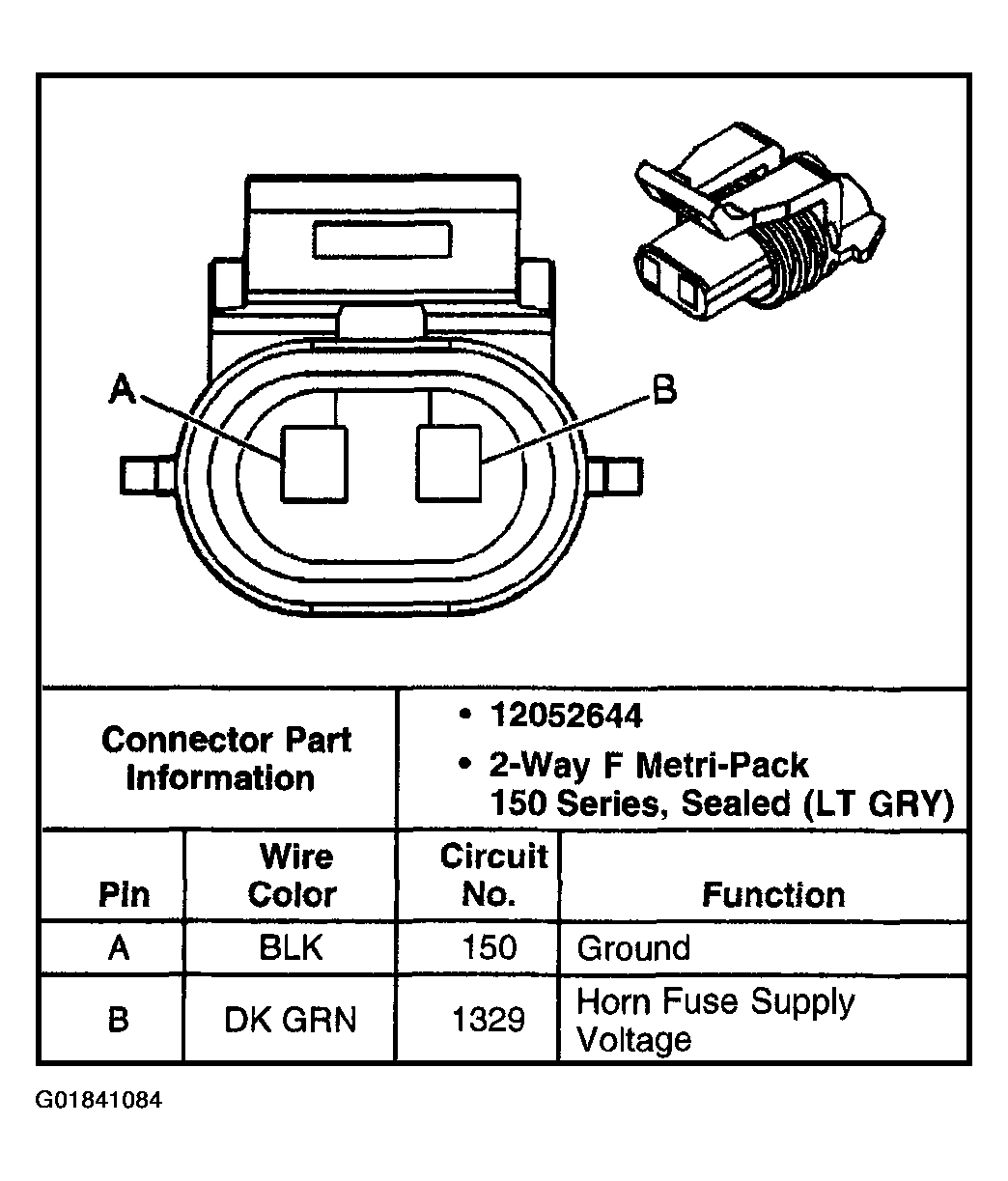

Fig 1: Horn Connector End View - Left
G01841084Courtesy of GENERAL MOTORS CORP.

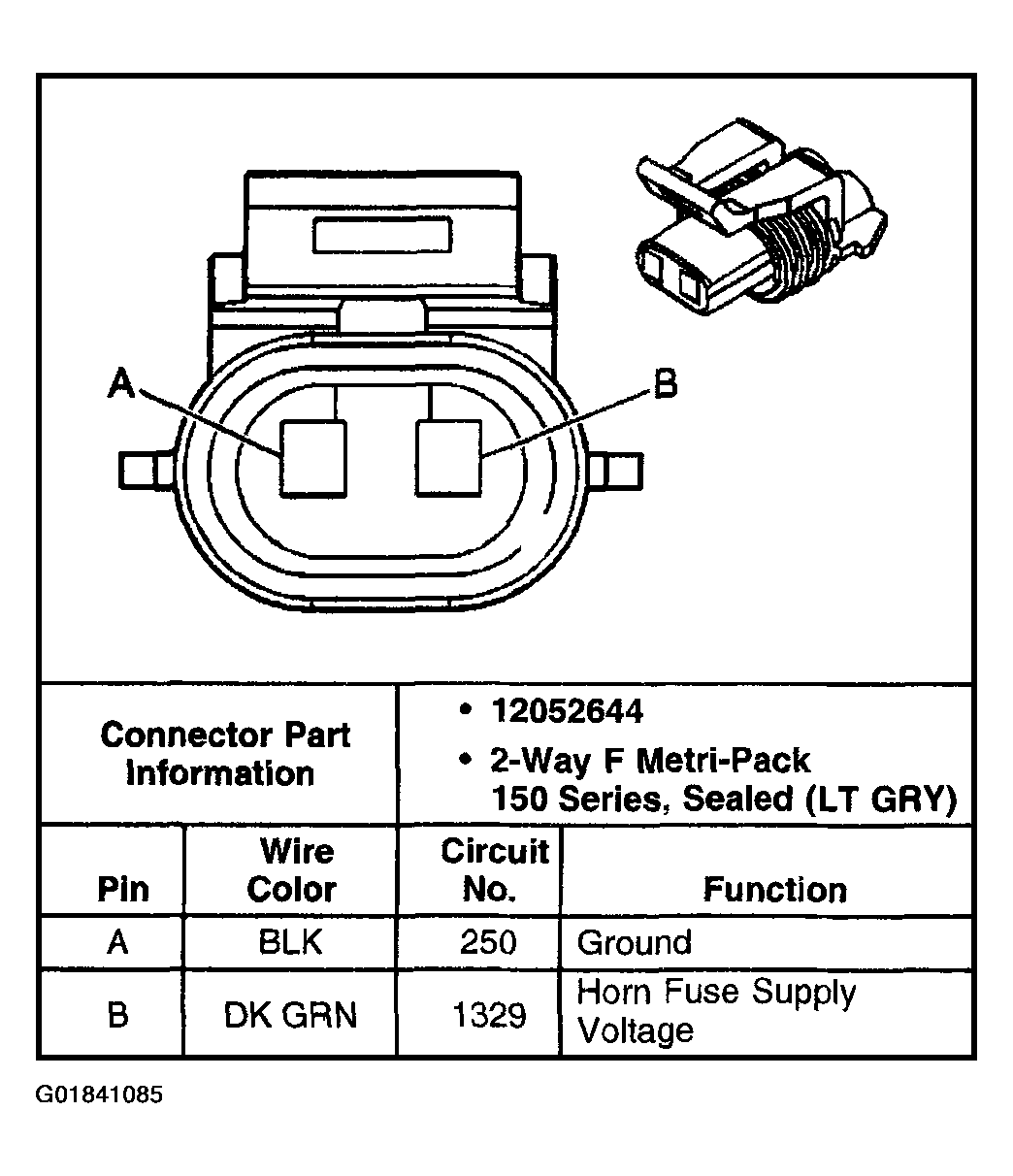

Fig 2: Horn Connector End View - Right
G01841085Courtesy of GENERAL MOTORS CORP.
