Powertrain Control Module (PCM)

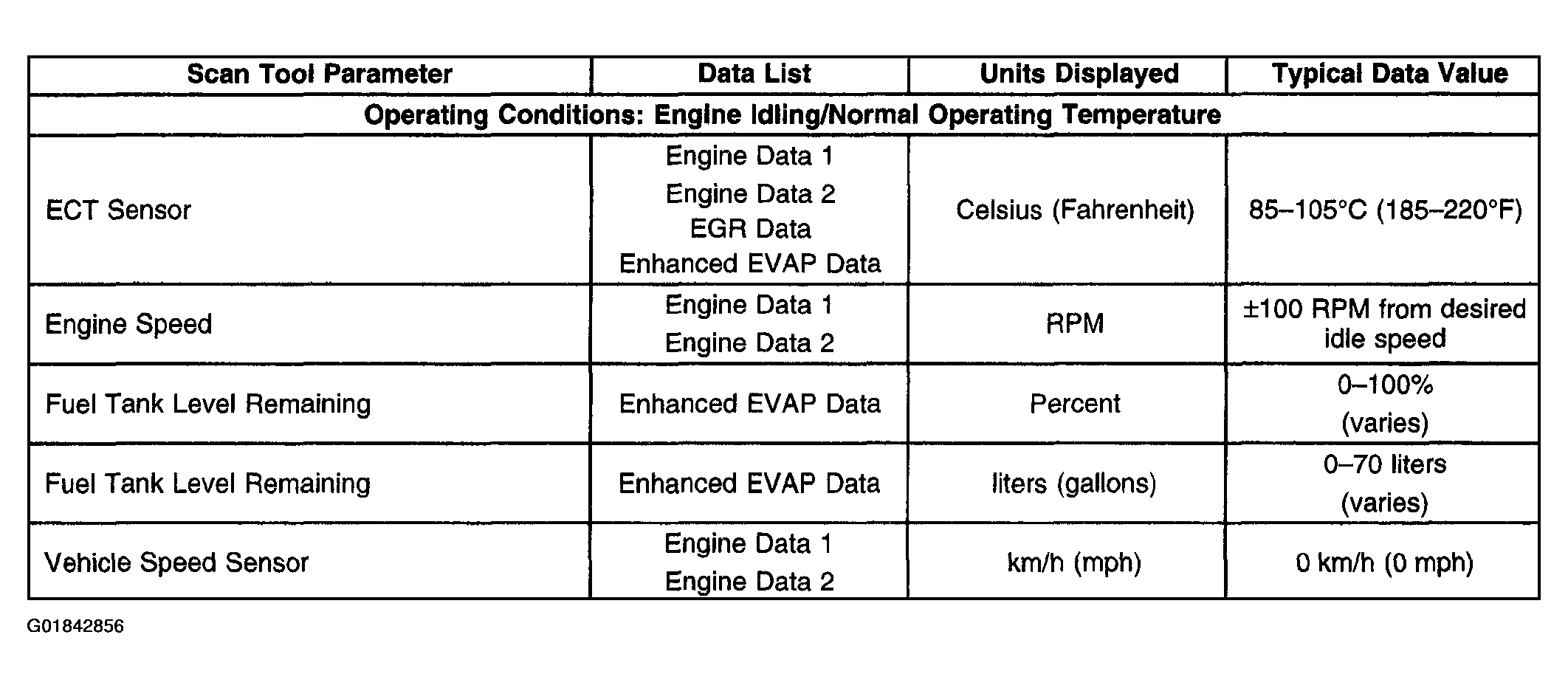

Fig 1: Powertrain Control Module Data Values (PCM)
G01842856Courtesy of GENERAL MOTORS CORP.
