Installation Procedure

  1. Install the compass sensor to the overhead console.
  2. Install the overhead console. Refer to DRIVER INFORMATION CENTER REPLACEMENT (WITHOUT SUNROOF)  or DRIVER INFORMATION CENTER REPLACEMENT (WITH SUNROOF) .
  3. Calibrate the compass. Refer to ELECTRONIC COMPASS CALIBRATION .

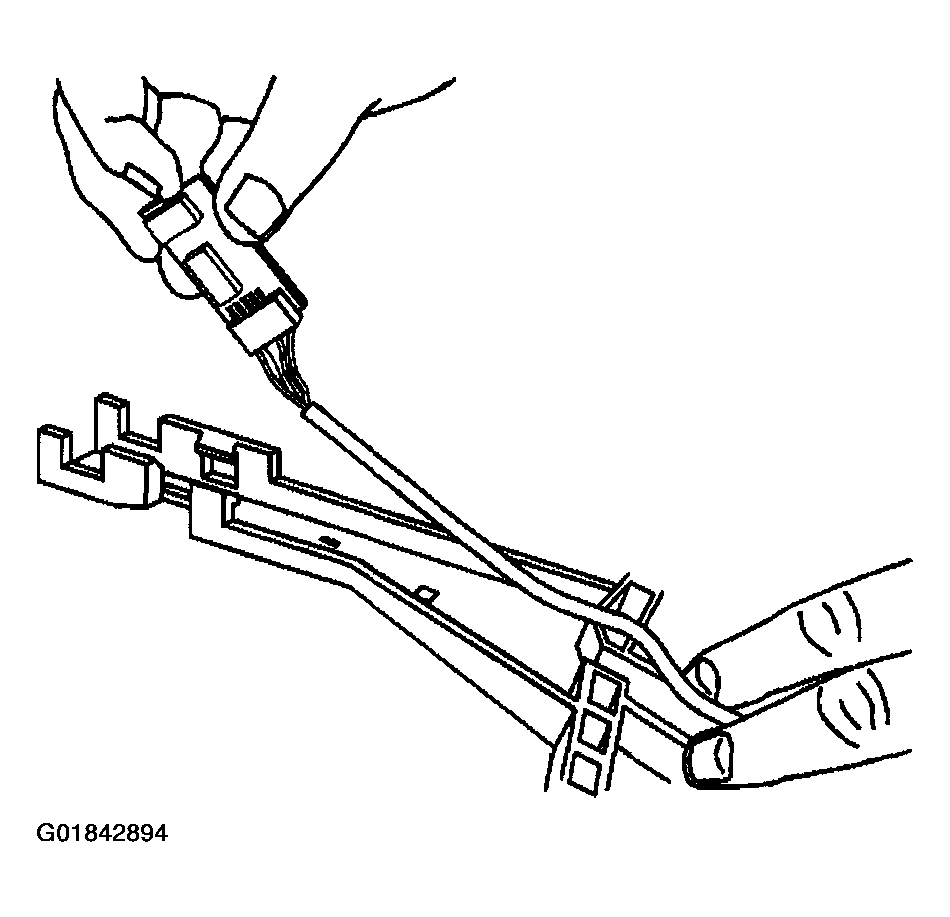

    Fig 1: Locating Compass Sensor In Overhead Console
    G01842894Courtesy of GENERAL MOTORS CORP.
