Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the battery hold down retainer (1), nut (3), and washer.
Tighten

Tighten the nut to 15 N.m (11 lb ft).

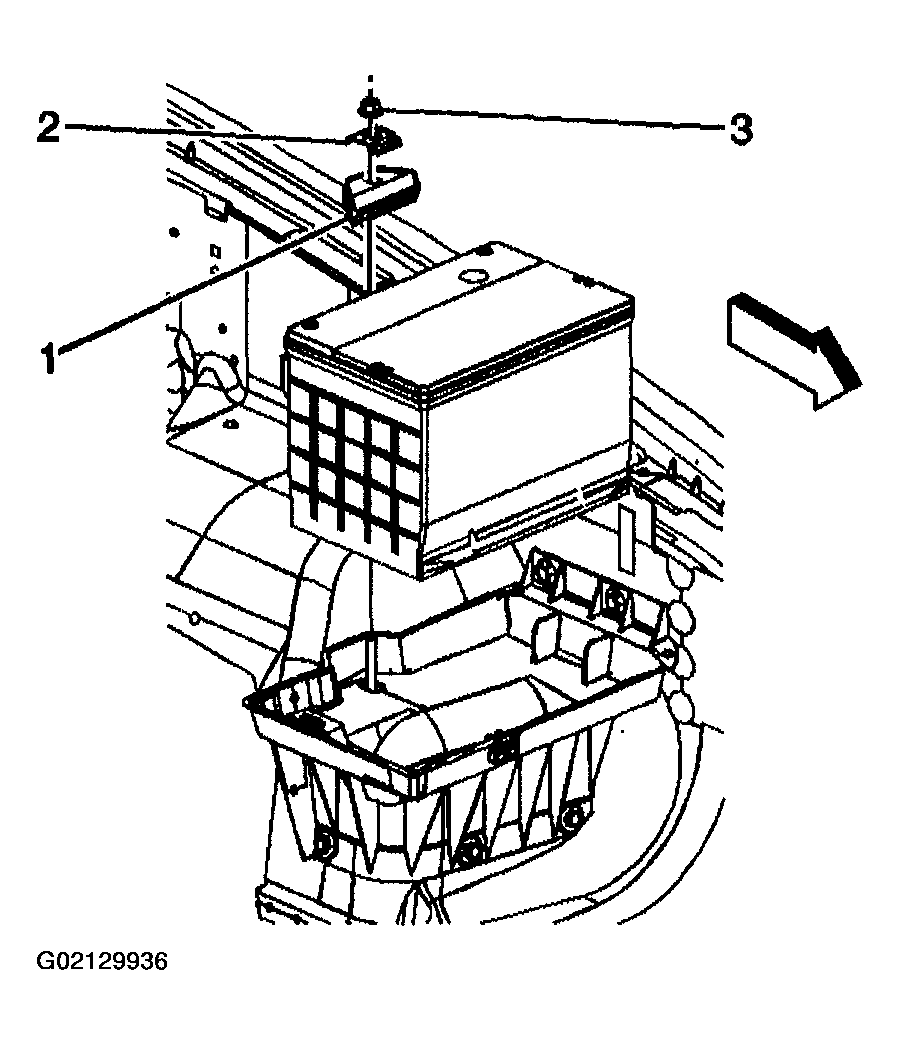

Fig 1: Installing Battery
Courtesy of GENERAL MOTORS CORP.
Install the battery cover.

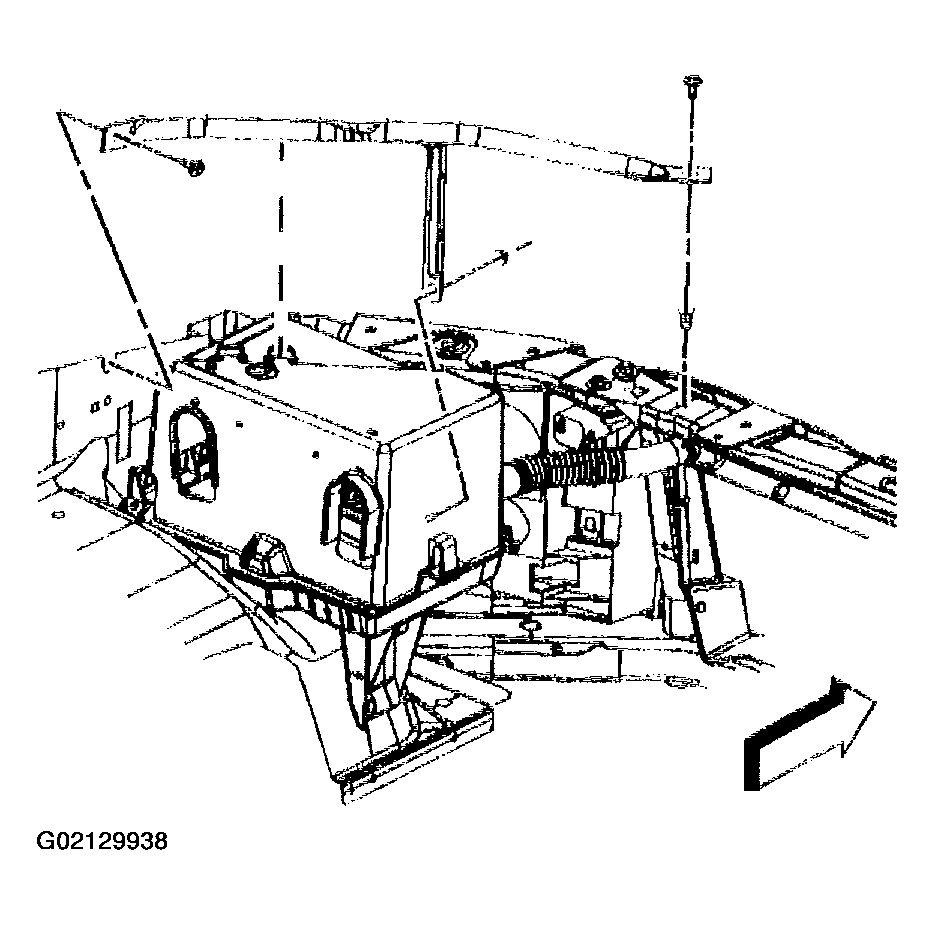

Fig 2: Installing Battery Cover
Courtesy of GENERAL MOTORS CORP.
Install the battery tray brace bolts/nut.
Tighten

Tighten the bolts/nut to 10 N.m (89 lb in).

Fig 3: Installing Battery Tray Brace Bolts/Nut
Courtesy of GENERAL MOTORS CORP.
Install the battery air duct to the battery cover.

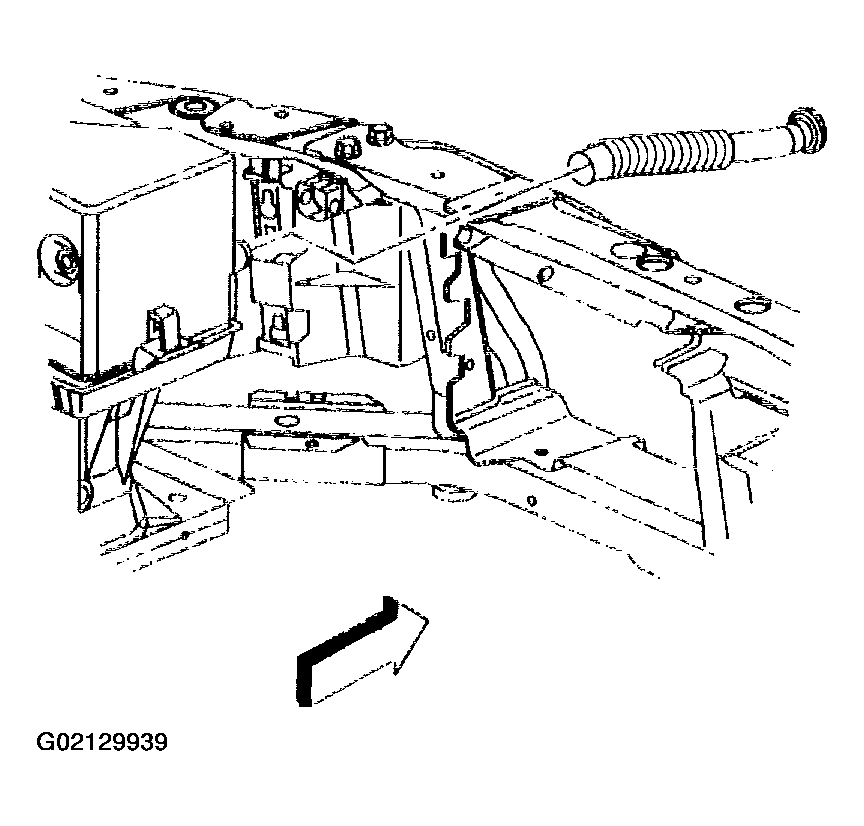

Fig 4: Installing Battery Air Duct To Battery Cover
Courtesy of GENERAL MOTORS CORP.
Install the coolant heater cord retainers (1) to the battery cover, if equipped.

Fig 5: Installing Coolant Heater Cord Retainers To Battery Cover
Courtesy of GENERAL MOTORS CORP.
Position the positive battery cable to the battery.
Tighten the positive battery cable bolt.
Tighten

Tighten the bolt to 15 N.m (11 lb ft).
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

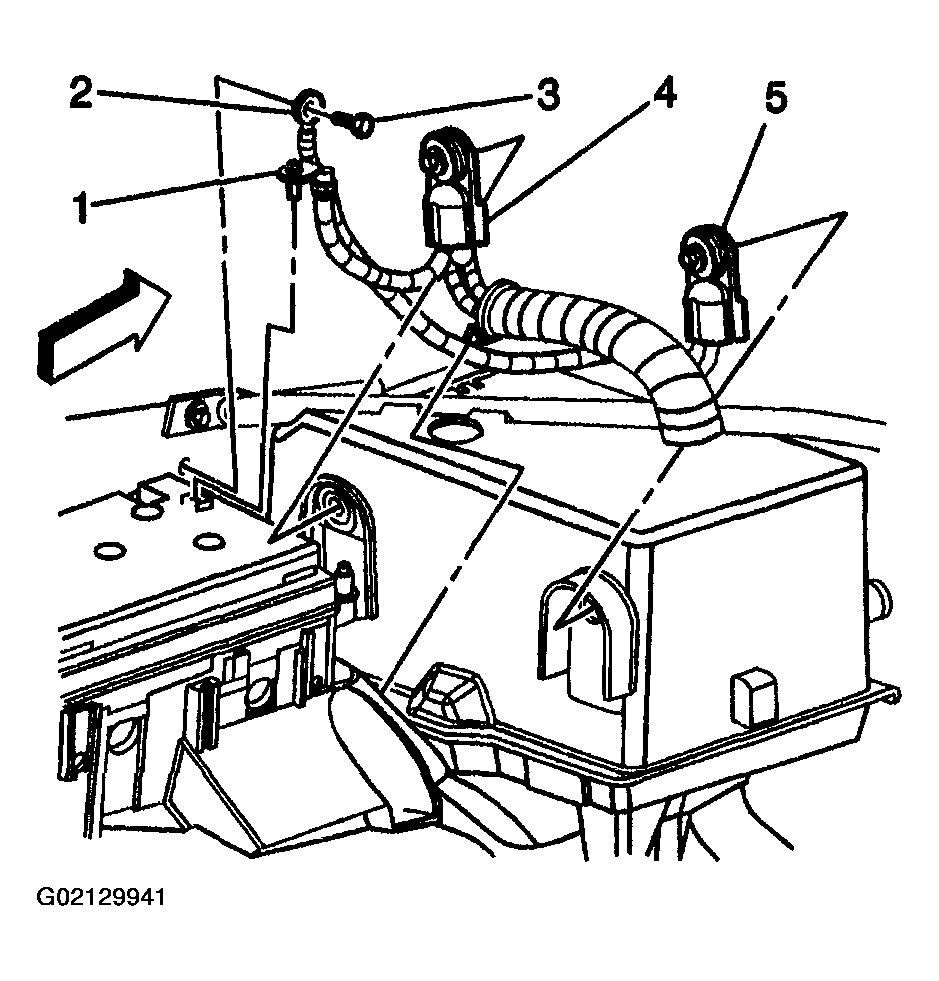

Fig 6: Positioning Positive Battery Cable To Battery
Courtesy of GENERAL MOTORS CORP.
