Removal Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

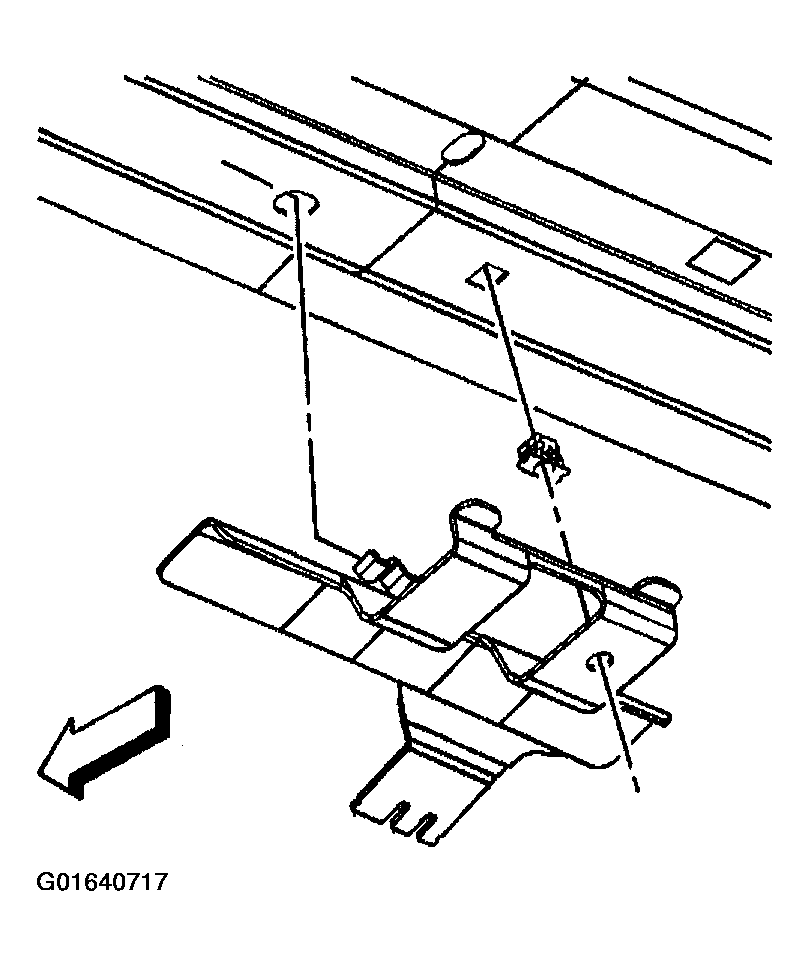

- Remove the navigation antenna. Refer to NAVIGATION ANTENNA REPLACEMENT
- Lower the front portion of the headliner in order to expose the antenna bracket. Refer to INTERIOR TRIM or INTERIOR TRIM
- Remove the retaining screw from the antenna bracket.
- Release the retaining clip from the roof panel.
- Remove the antenna bracket from the roof panel.
