Fog Lamp Switch Connector End View
Fog Lamp Switch Connector End View

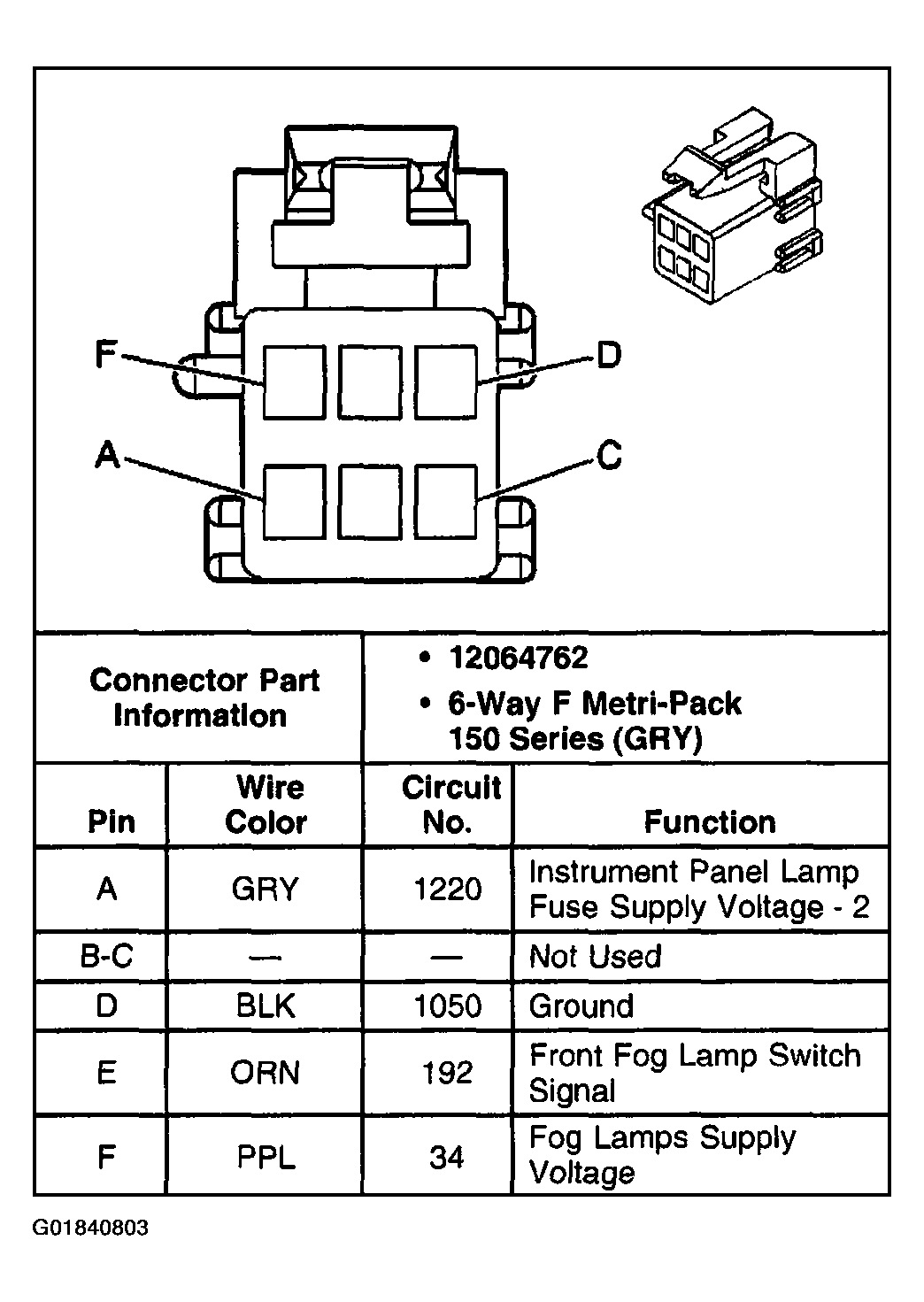

Fig 1: Fog Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
