Propshaft Speed Sensor Connector End View - Rear
Propshaft Speed Sensor Connector End View - Rear

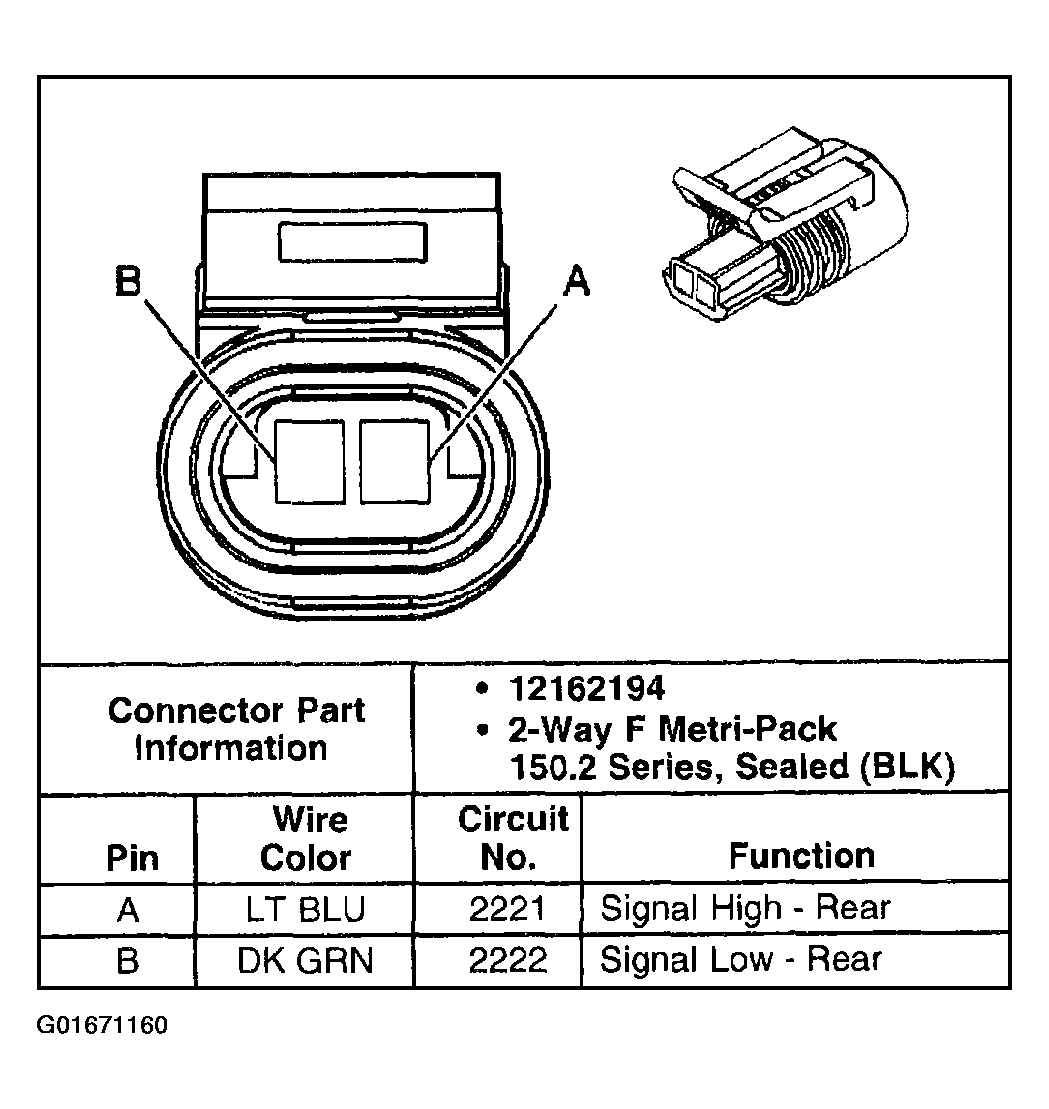

Fig 1: Propshaft Speed Sensor Connector End View - Rear
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
