Removal Procedure

  1. Remove the cargo tie down mounting bolt.
  2. Remove the cargo tie down loop.

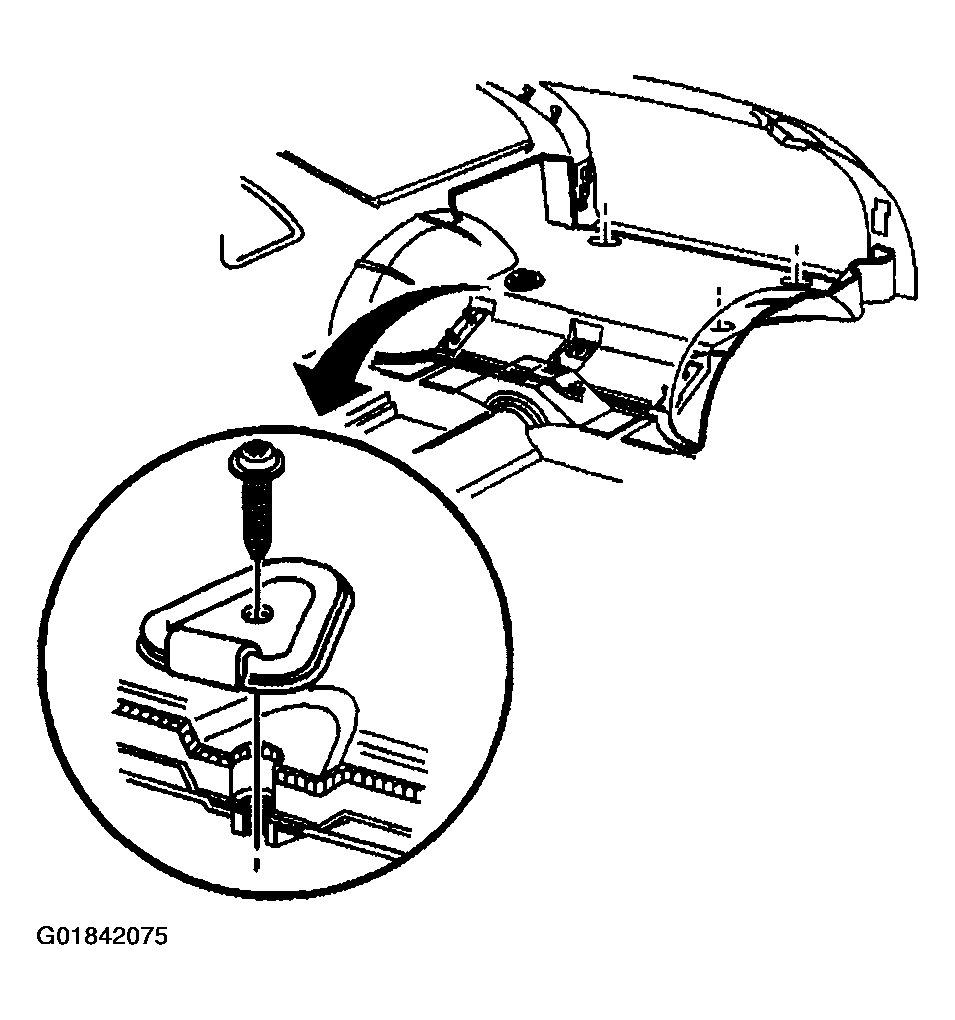

    3. Fig 1: Cargo Tie Down Loop
    G01842075Courtesy of GENERAL MOTORS CORP.
