Installation Procedure

  1. Install the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

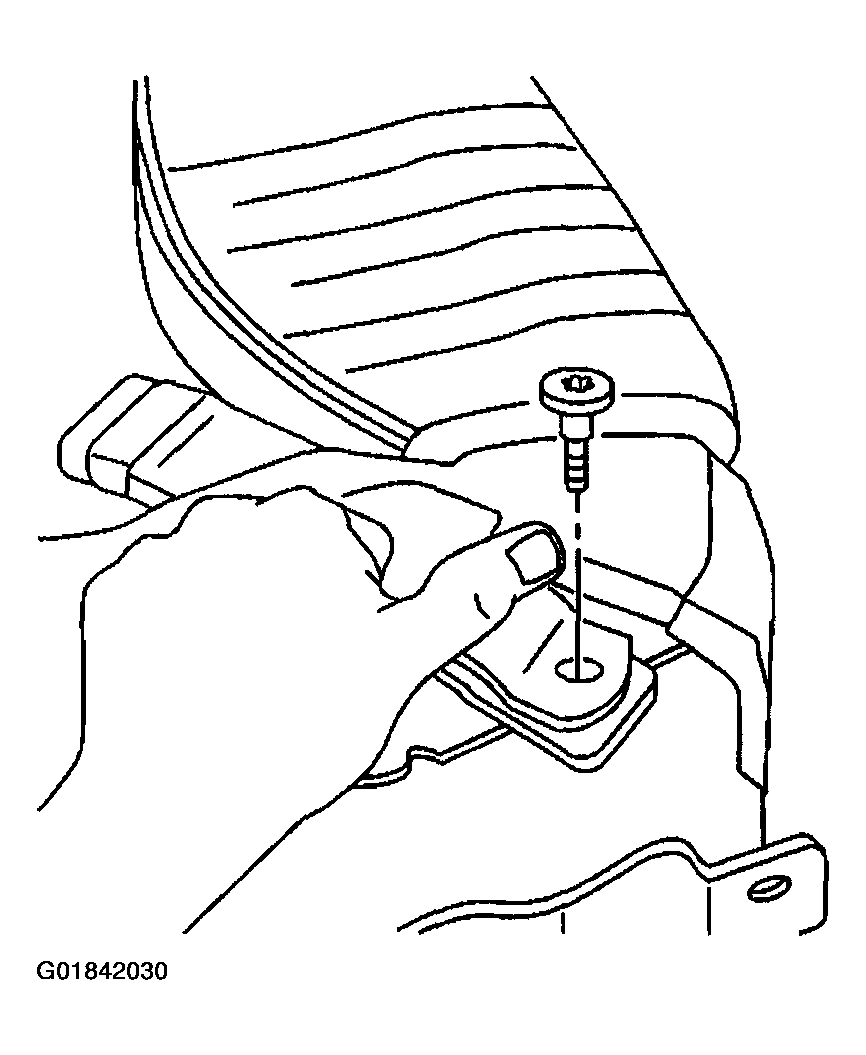

    2. Fig 1: Passenger-Side Seat Belt Buckle
    G01842030Courtesy of GENERAL MOTORS CORP.
  2. Install the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.

    Tighten

    Tighten the seat belt buckle or buckle and belt assembly bolt to 70 N.m (52 lb ft).

  3. Install the driver-side seat belt buckle or buckles to the seat.

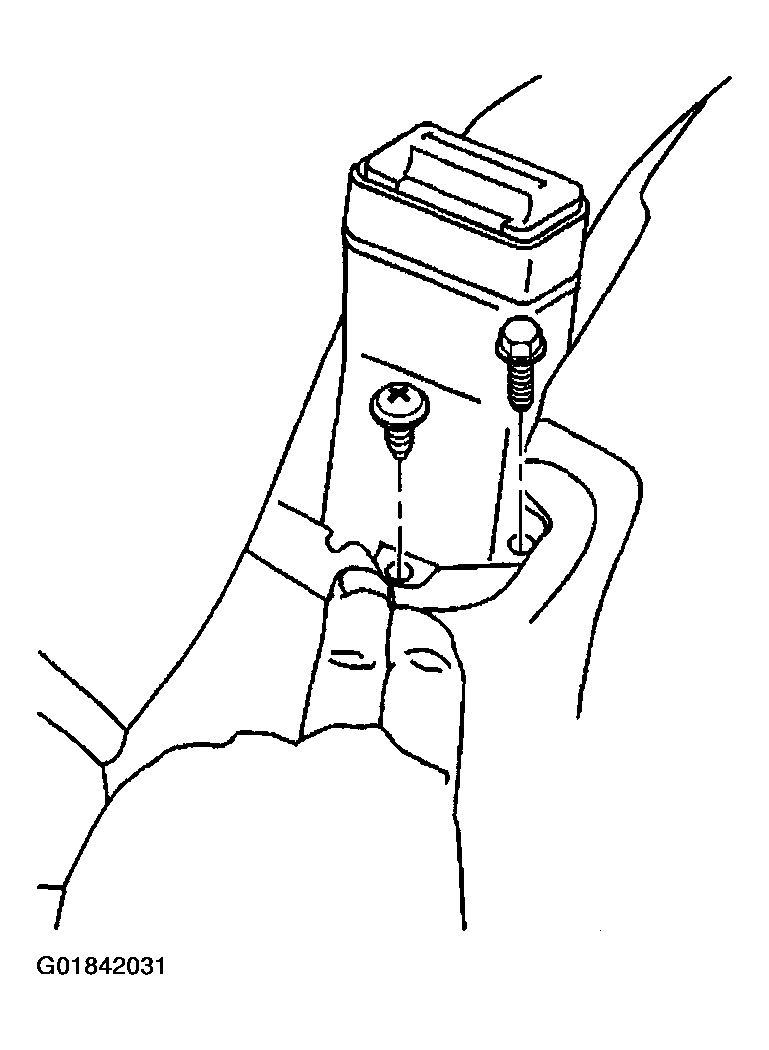

    4. Fig 2: Driver-Side Seat Belt Buckle
    G01842031Courtesy of GENERAL MOTORS CORP.
  4. Install the bolt that retains the driver-side seat belt buckle or buckles to the seat.

    Tighten

    Tighten the seat belt buckle or buckles bolt to 70 N.m (52 lb ft).

  5. Connect the driver-side seat belt buckle electrical connector.

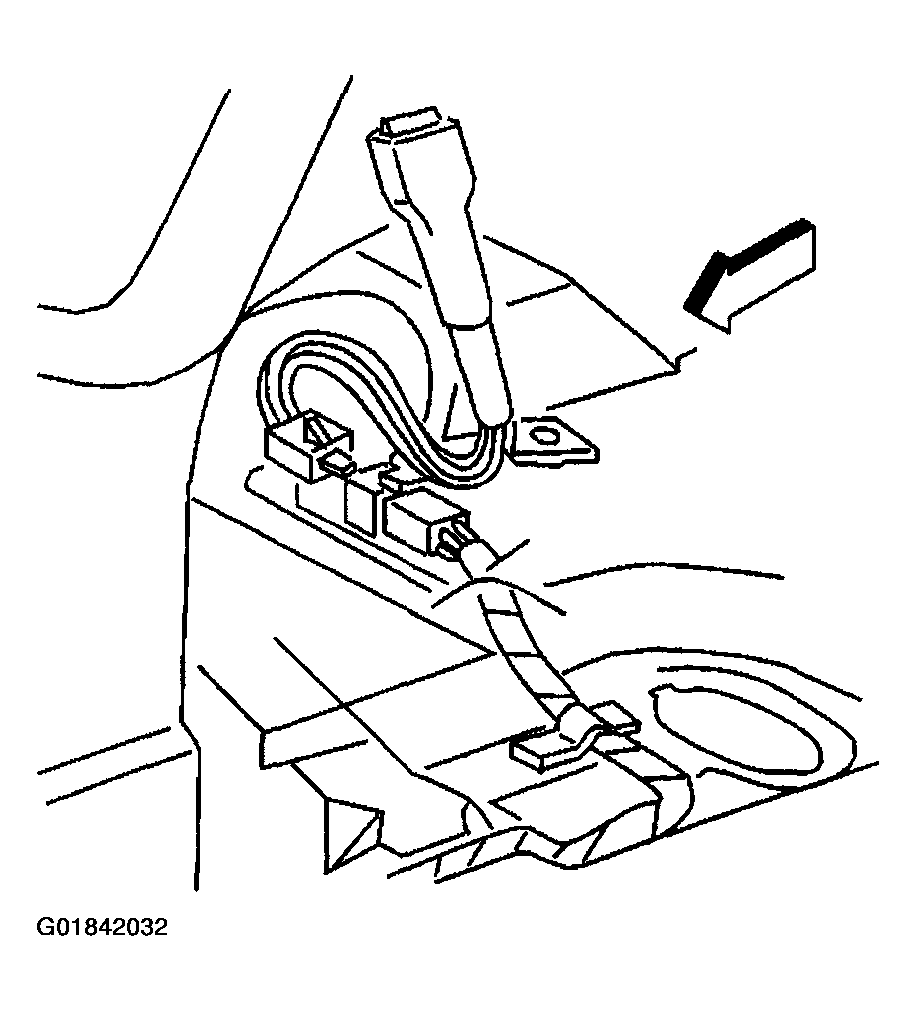

    6. Fig 3: Driver-Side Seat Belt Buckle Electrical Connector
    G01842032Courtesy of GENERAL MOTORS CORP.
