FixVault
Home
›
GMC
›
2002
›
Jimmy 2D Utility, Part Time, Standard
›
Repair and Diagnosis
›
Accessories & Equipment
›
Headlights
›
Lighting Systems
›
Component Locator
›
Lighting Systems Component Views
›
Front Door
Front Door

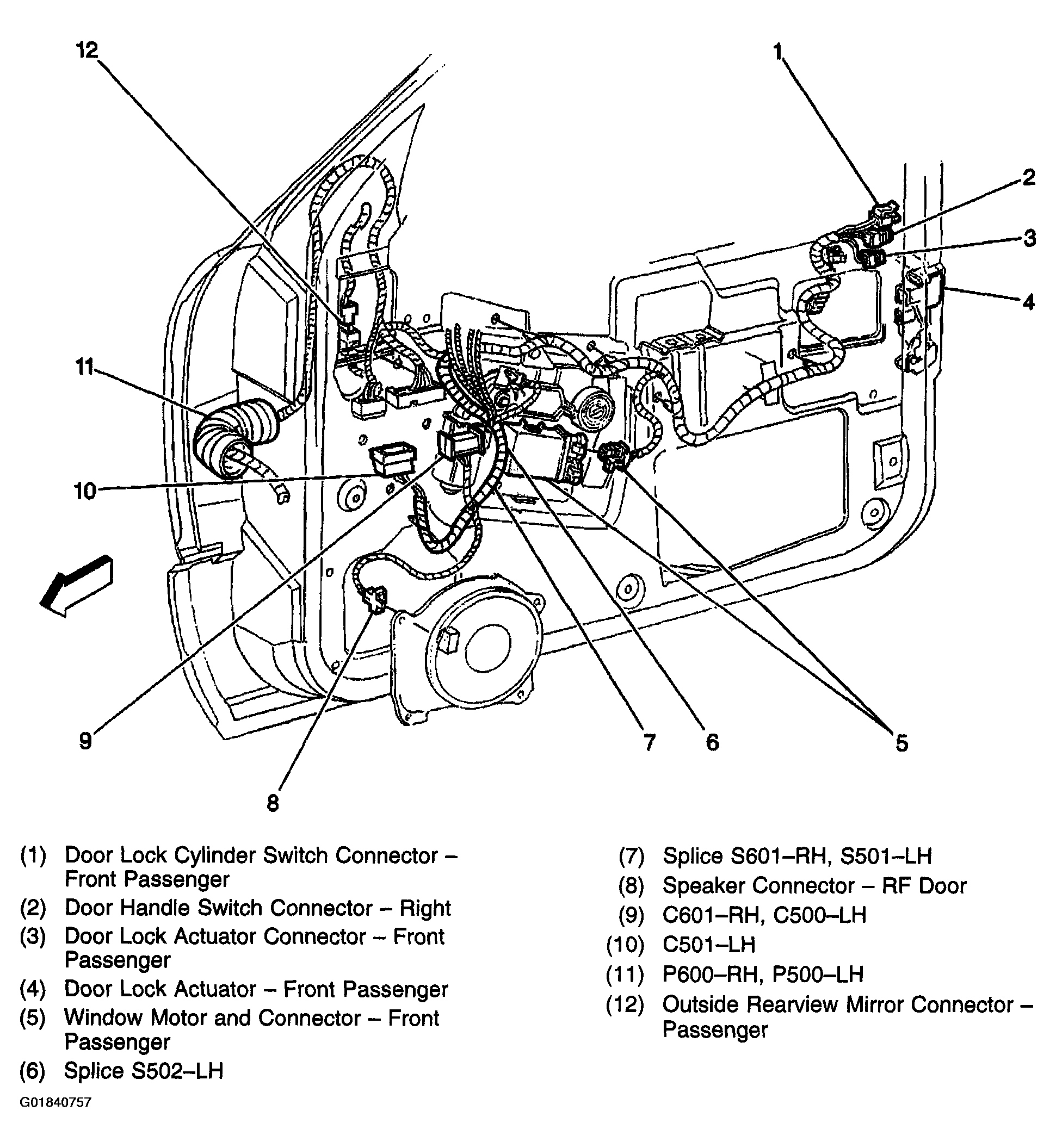

Fig 1: Front Door (Passenger Shown; Driver Similar)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
