Instrument Panel

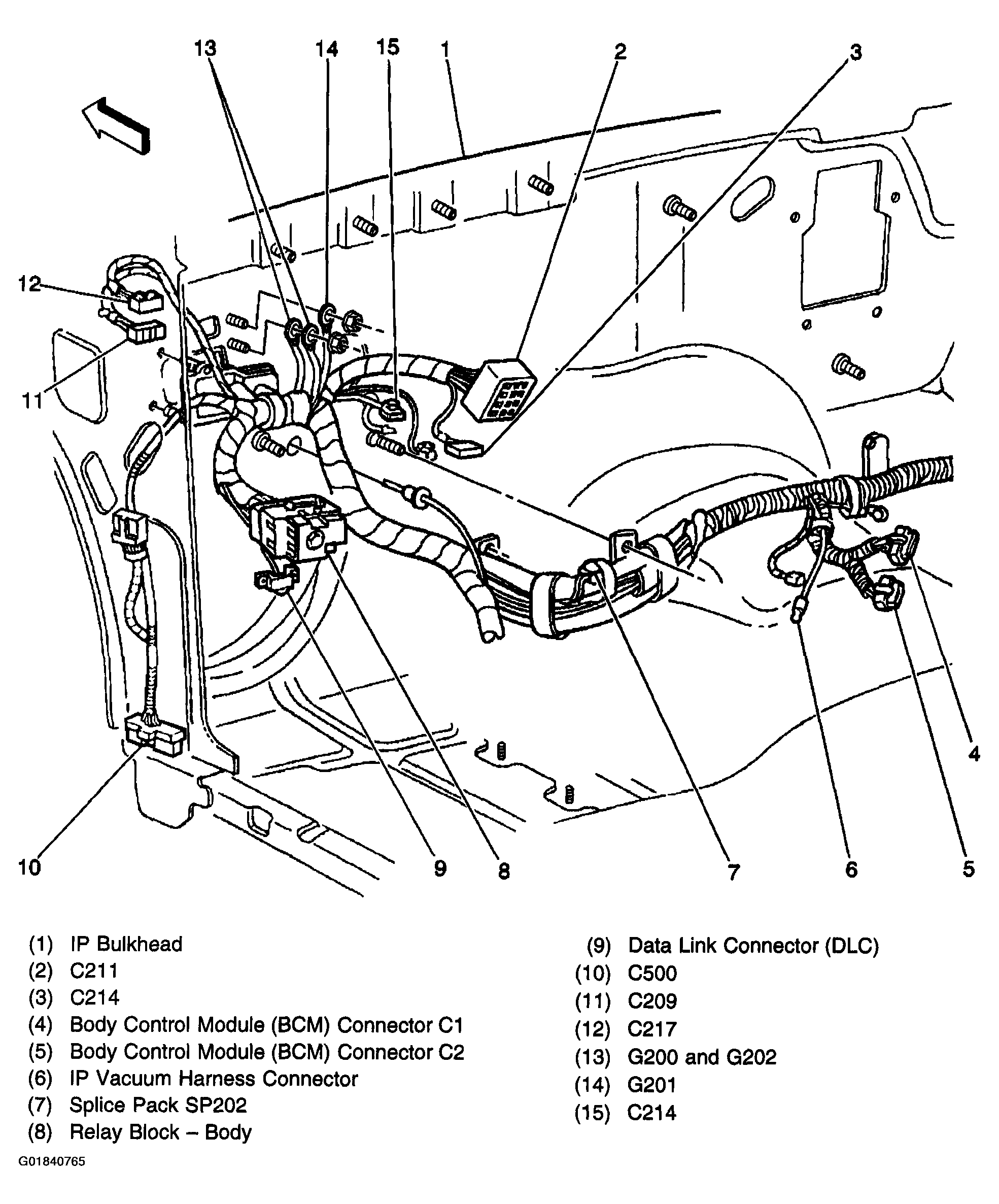

Fig 1: Instrument Panel (Left Front)
G01840765Courtesy of GENERAL MOTORS CORP.

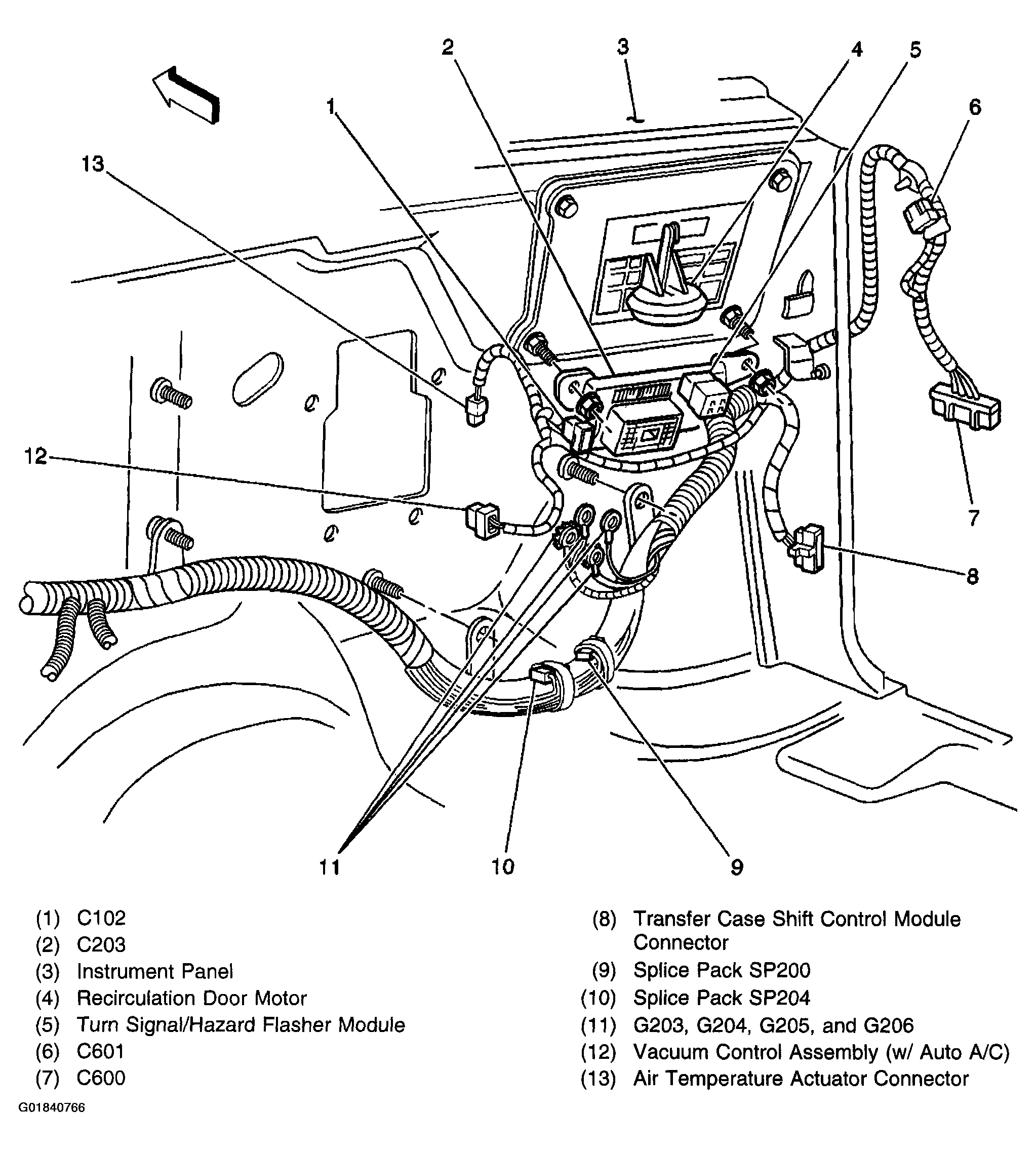

Fig 2: Instrument Panel (Right Front)
G01840766Courtesy of GENERAL MOTORS CORP.
