Installation Procedure

Install the electrical connector.
Install the remote cassette player to the console, by sliding the unit into place between the retaining tabs.

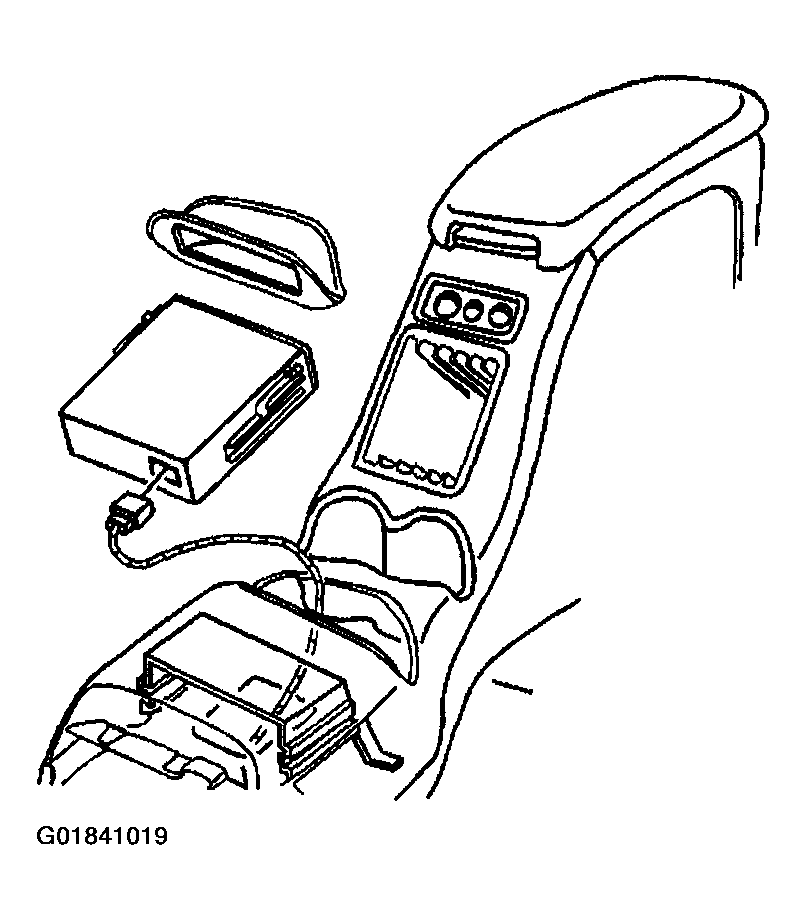

Fig 1: Locating Remote Cassette Player
Courtesy of GENERAL MOTORS CORP.
Install the remote cassette player tray, ensuring the unit locks into place.
Install the negative battery cable.
