Wiper/Washer System Component Views

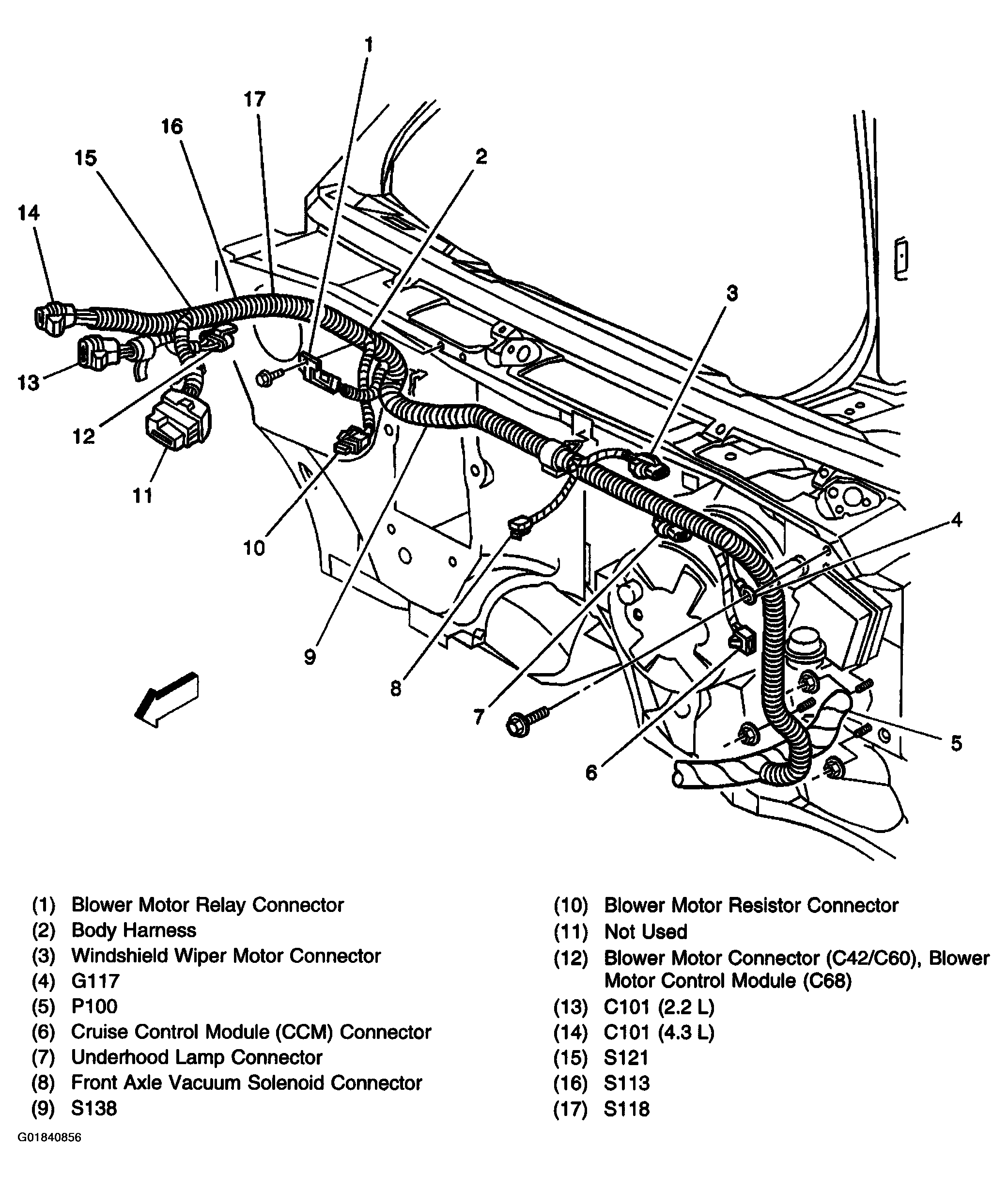

Fig 1: Body Harness To Cowl

Courtesy of GENERAL MOTORS CORP.

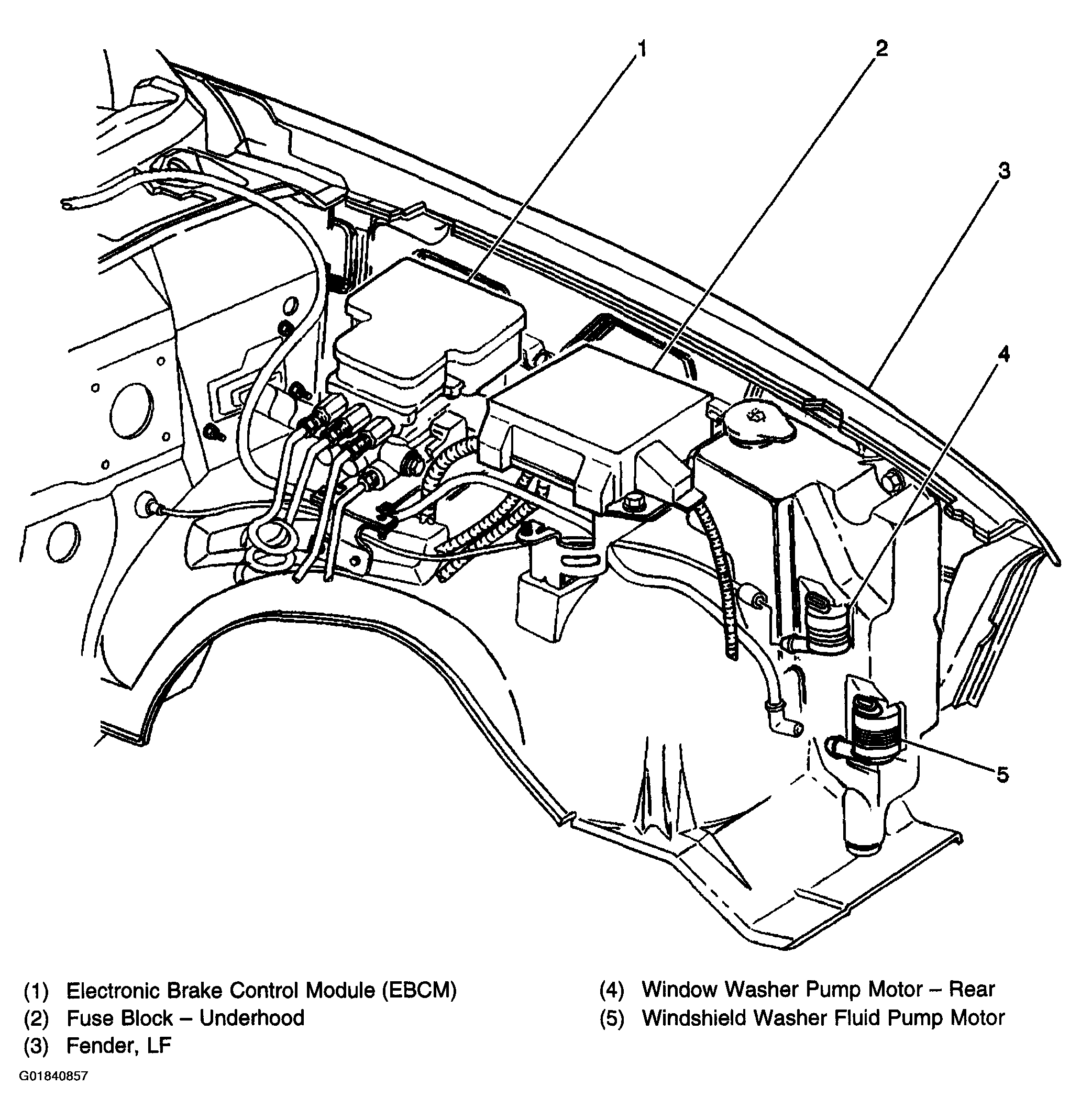

Fig 2: Body Wiring Harness, Washer Pump Motor

Courtesy of GENERAL MOTORS CORP.

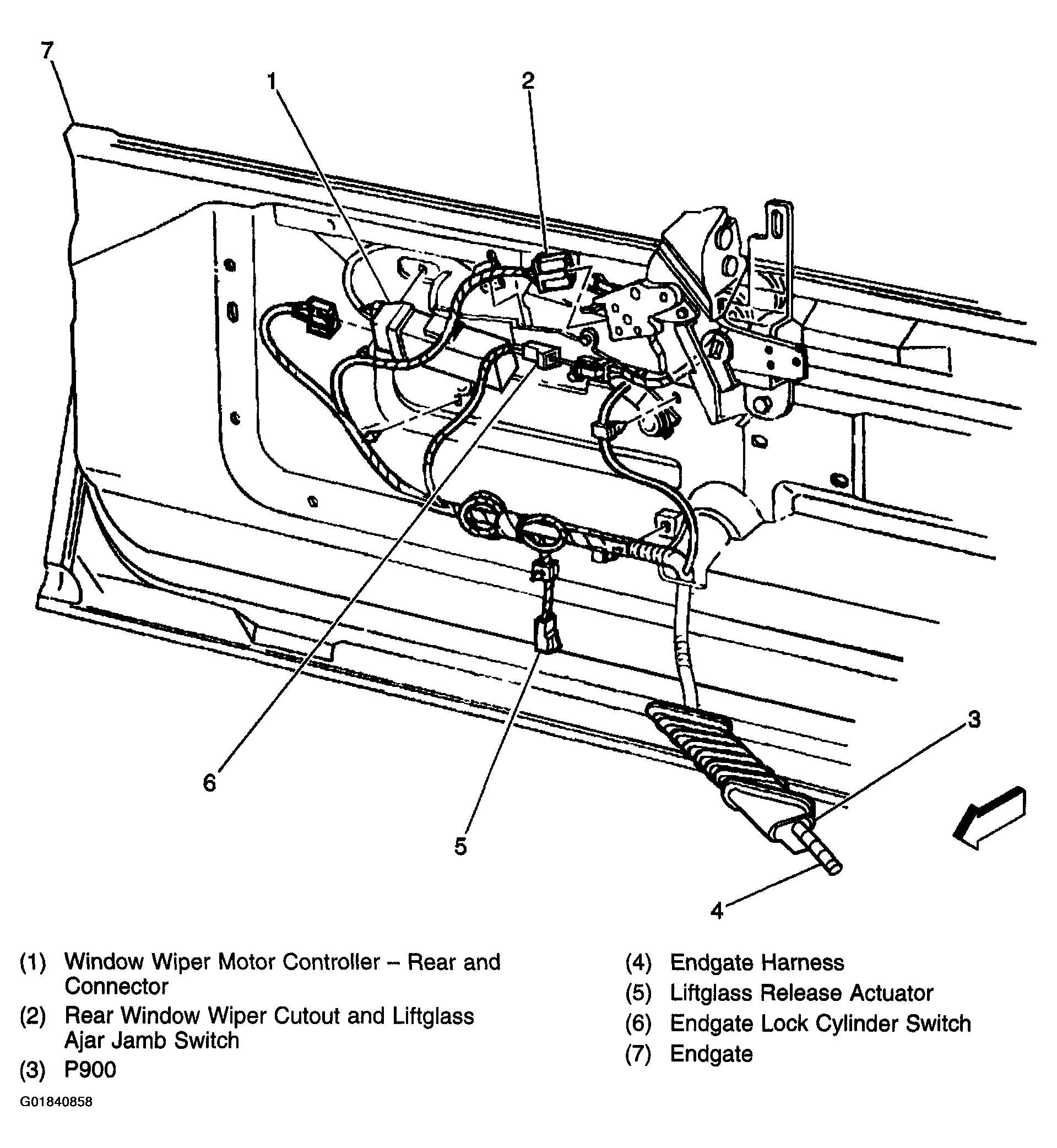

Fig 3: Endgate Harness Routing Views

Courtesy of GENERAL MOTORS CORP.
