Door Unlock Function Inoperative with Transmitter
Door Unlock Function Inoperative with Transmitter

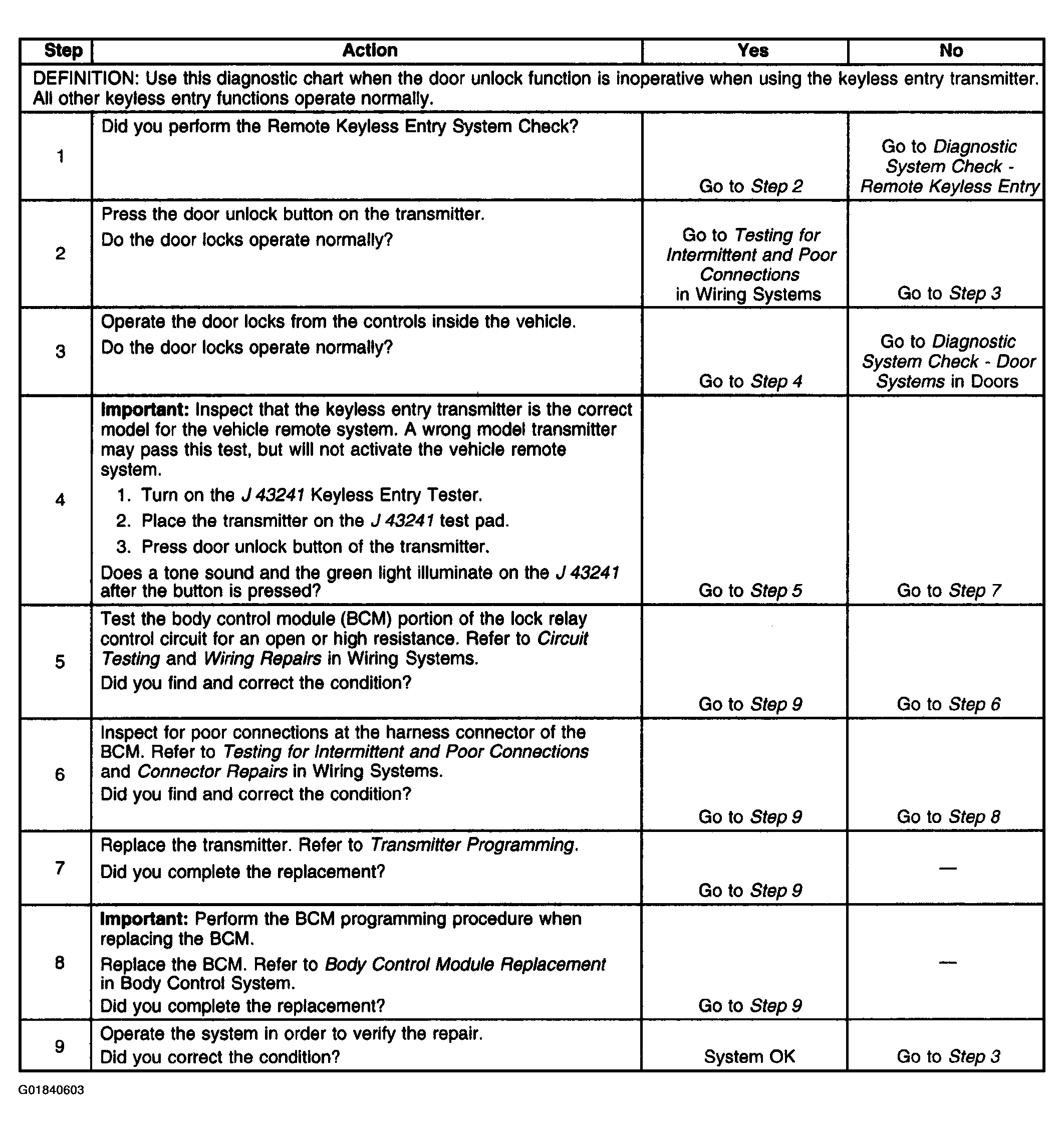

Fig 1: Door Unlock Function Inoperative With Transmitter
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
