Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the inside door handle rods.
  3. Remove the inside door handle retaining rivets.
  4. Remove the inside door handle from the door by sliding the handle rearward.

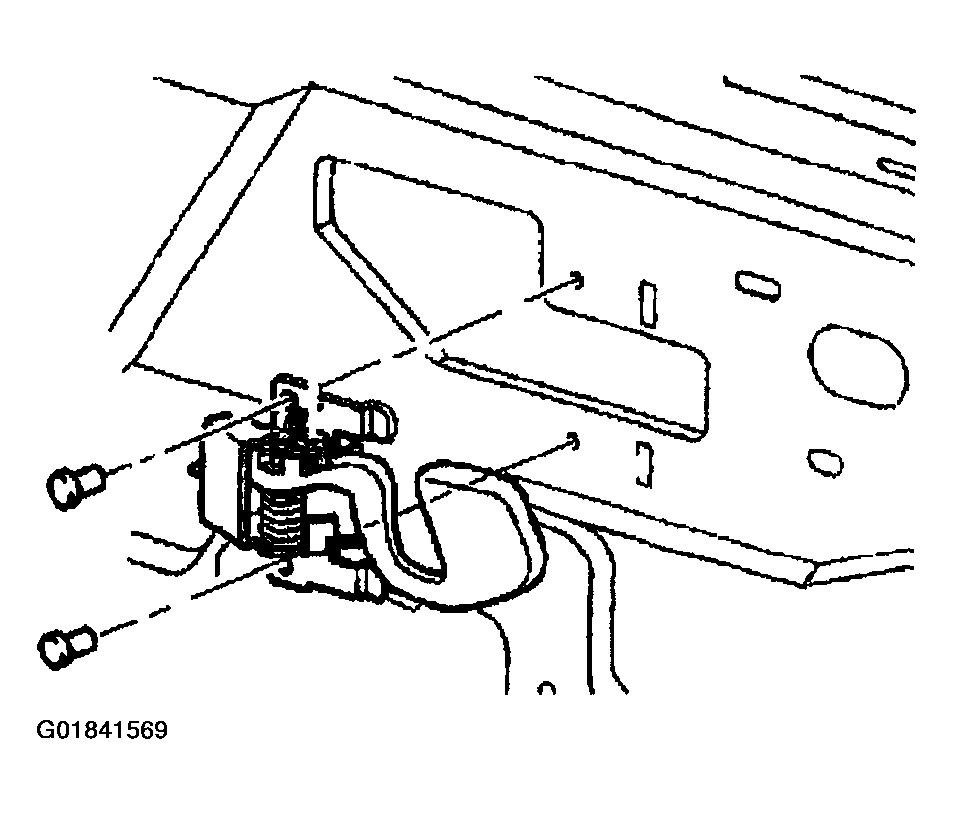

    Fig 1: Removing Inside Door Handle Retaining Rivets - Front Inside
    G01841569Courtesy of GENERAL MOTORS CORP.
