Removal Procedure

CAUTION: To prevent personal Injury, gloves should be worn when removing broken glass.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Utility)  or Trim Panel Replacement - Side Rear Door (Extended Cab P/U Only) .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Door .
  3. Remove the stationary window assembly. Refer to REAR WINDOW REPLACEMENT in Stationary Windows.
  4. Remove the weatherstrip. Refer to Weatherstrip Replacement - Rear Door Window .
  5. Remove the rear window run channel. Refer to Window Run Channel Replacement .

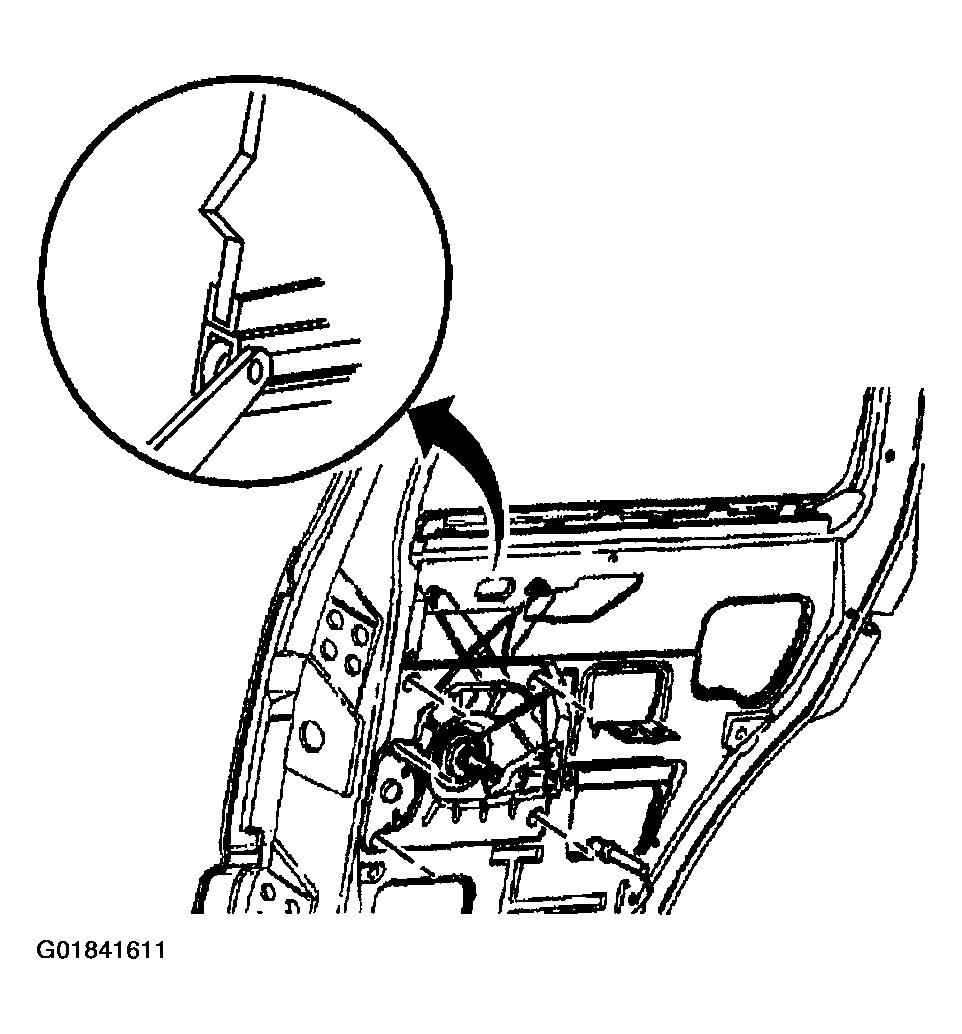

    Fig 1: Removing Stationary Window Assembly - Rear Door
    G01841611Courtesy of GENERAL MOTORS CORP.
  6. Push the window rearward.
  7. Rotate the window in order to release the window sash channel from the regulator rollers.
  8. Remove the window from the regulator.
  9. Remove the window from the door.
