Installation Procedure
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
.
NOTE:
Refer to FASTENER NOTICE
.
Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

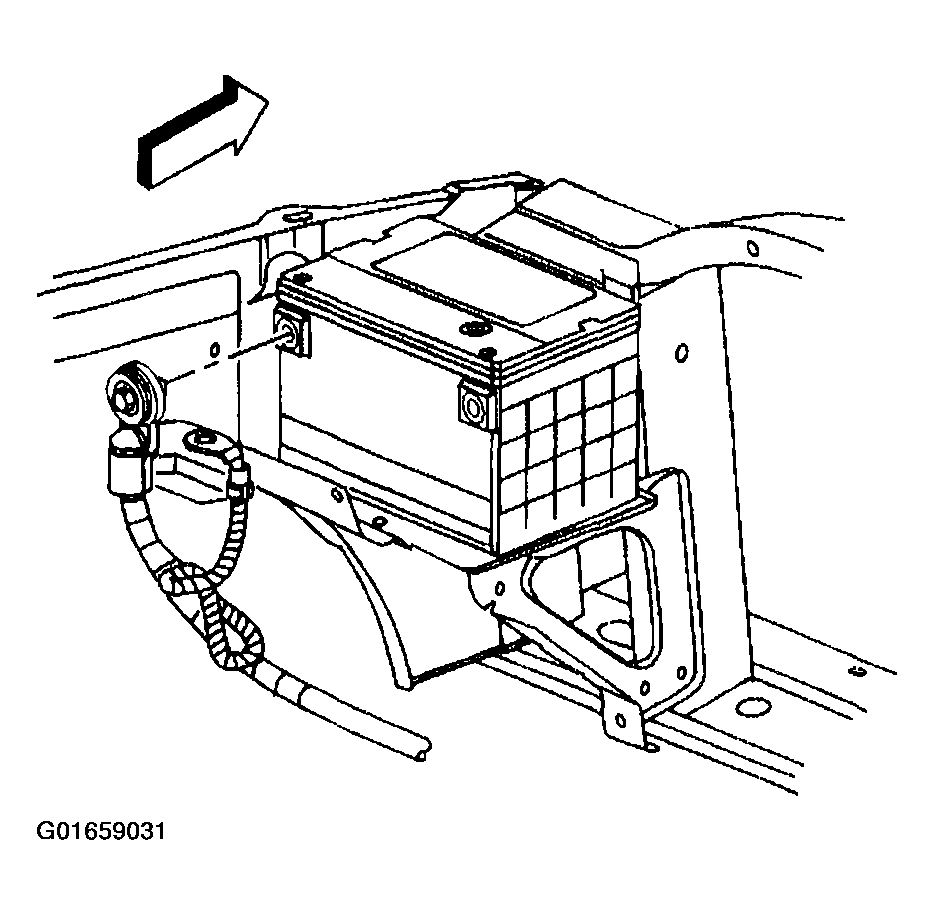

Install the battery ground negative cable and bolt to the battery.
Tighten
Tighten the battery terminal bolt to 15 N.m (11 lb ft).
