Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the negative battery cable bolt from the frame.
    Fig 1: Negative Battery Cable Bolt At Frame (4.3L)
    G01659040Courtesy of GENERAL MOTORS CORP.
  4. Remove the negative battery cable bolt from the radiator support.

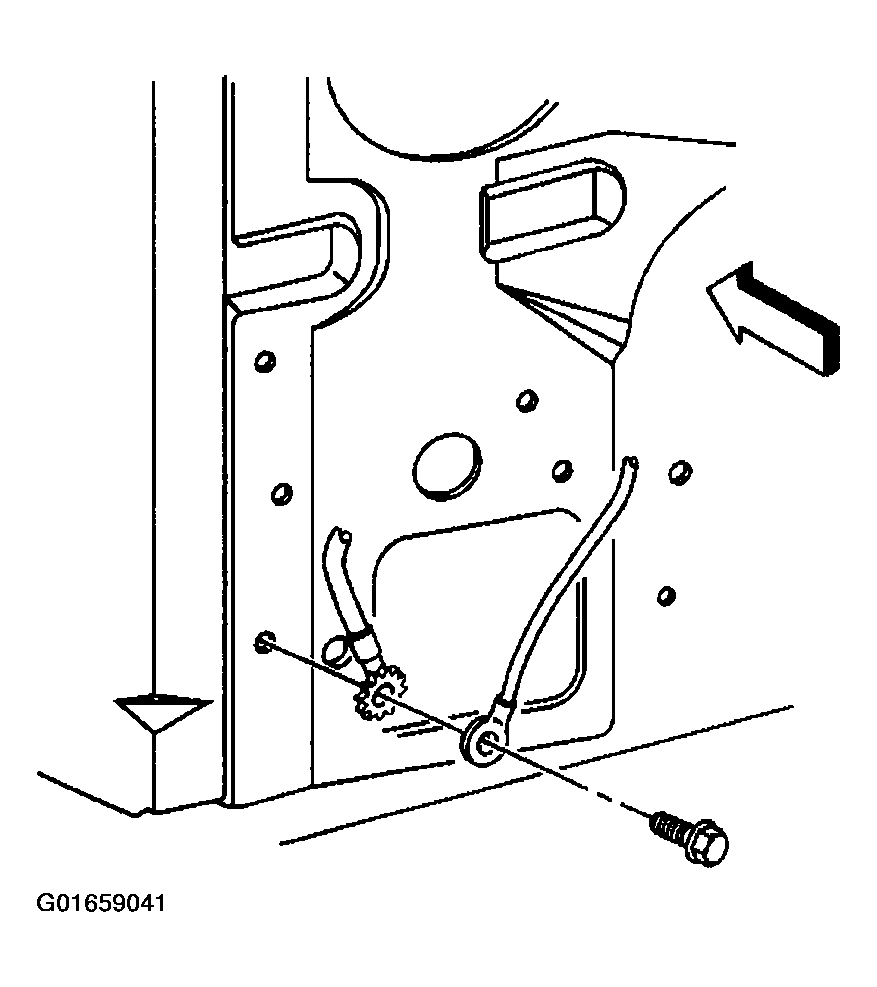

    Fig 2: Negative Battery Cable Bolt At Radiator Support (4.3L)
    G01659041Courtesy of GENERAL MOTORS CORP.
  5. Remove the negative battery cable bolt from the block.
  6. Remove the negative battery cable.

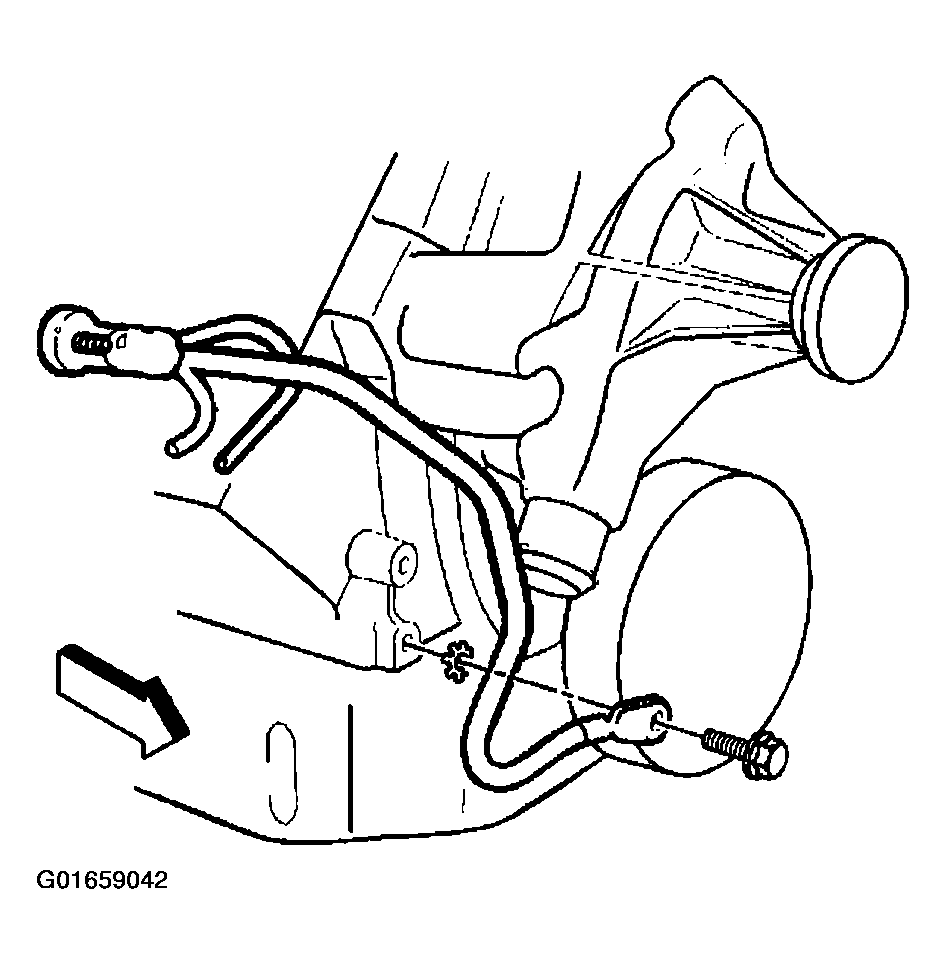

    Fig 3: Negative Battery Cable Bolt At Block (4.3L)
    G01659042Courtesy of GENERAL MOTORS CORP.
