Removal Procedure

Additional ground straps are used to connect the body and the frame to the engine and the transmission. Always connect all ground straps in order to ensure a good ground path to the battery for all electrical components.

1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
2. Remove the ground strap nut and bolt from the engine.
3. Lower the vehicle.

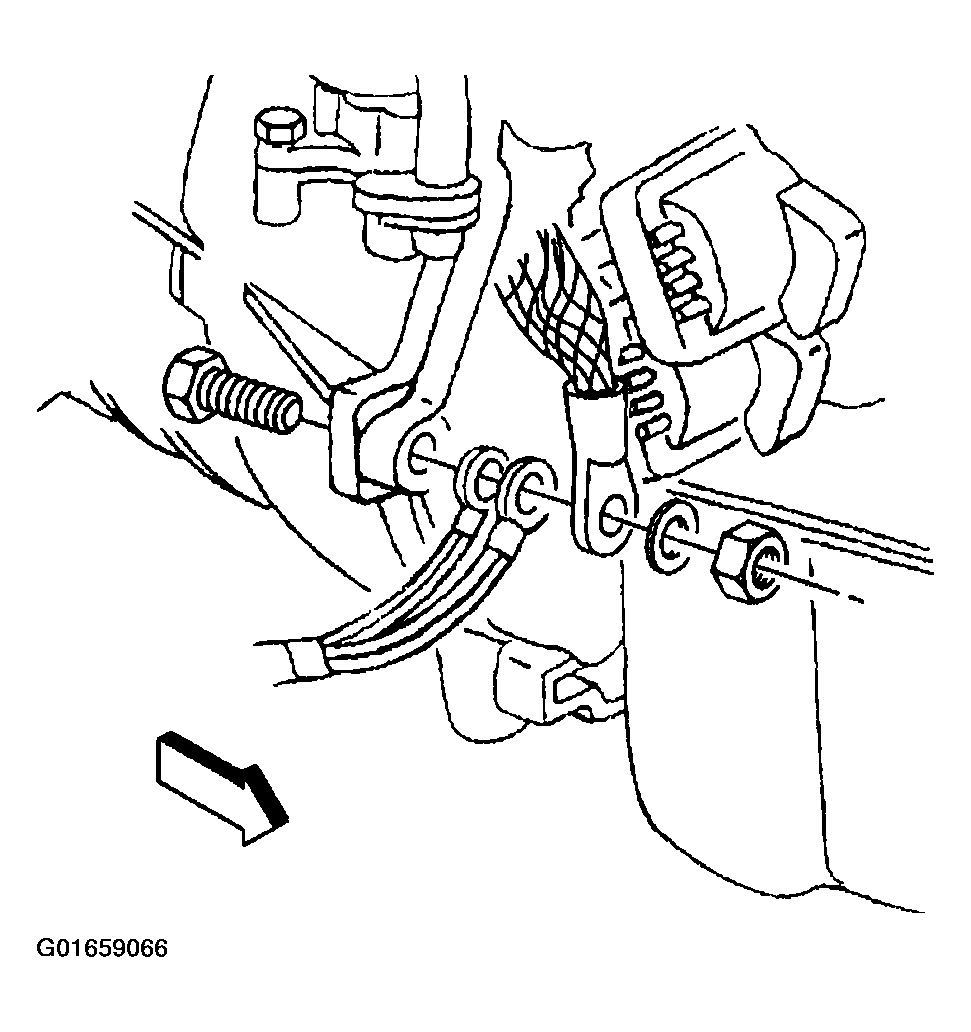

   Fig 1: Ground Strap To Engine Nut & Bolt (2.2L)

   Courtesy of GENERAL MOTORS CORP.
4. Remove the ground strap bolt from the cowl.
5. Remove the ground strap.

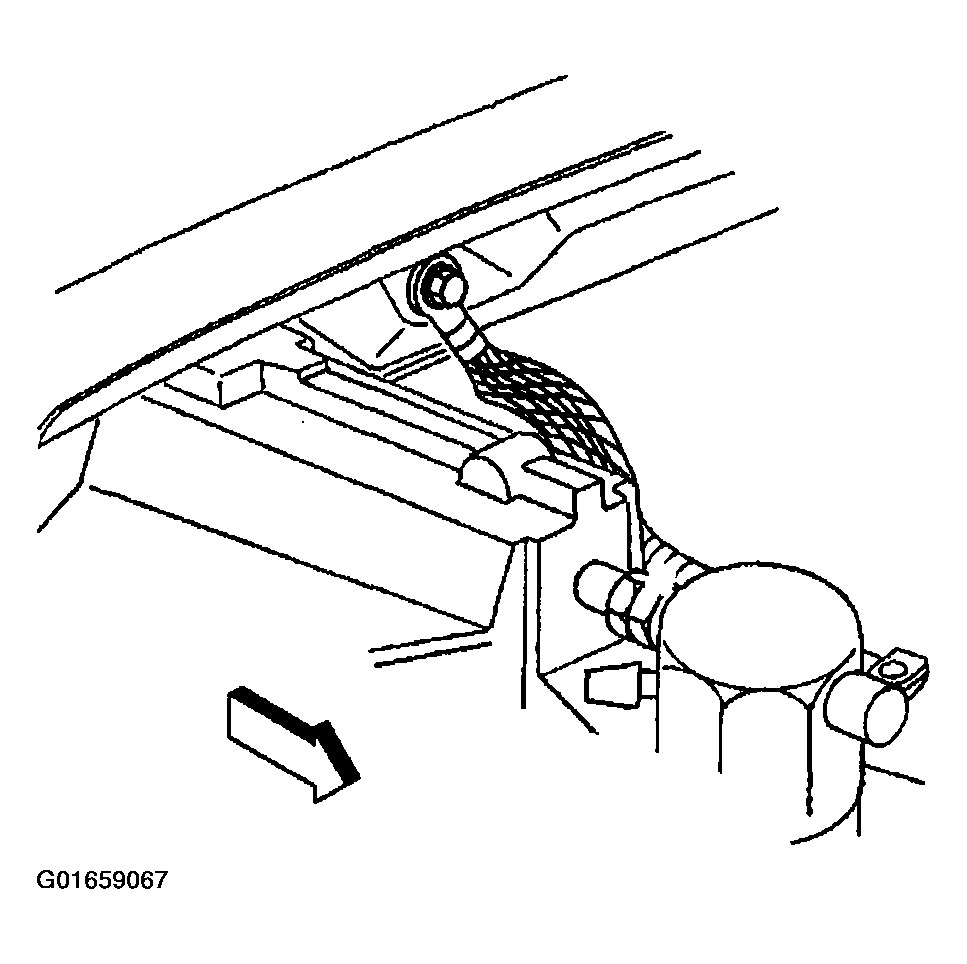

   Fig 2: Ground Strap To Cowl Bolt (2.2L)

   Courtesy of GENERAL MOTORS CORP.
