Body Control Module (BCM)

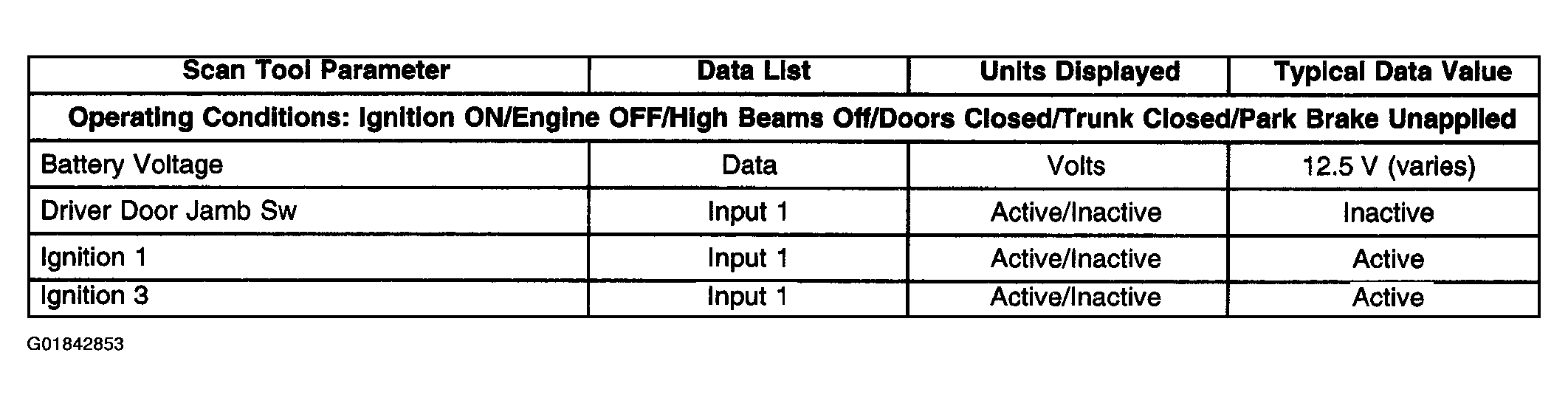

Fig 1: Body Control Module (BCM) Data Values (1 Of 2)
G01842853Courtesy of GENERAL MOTORS CORP.

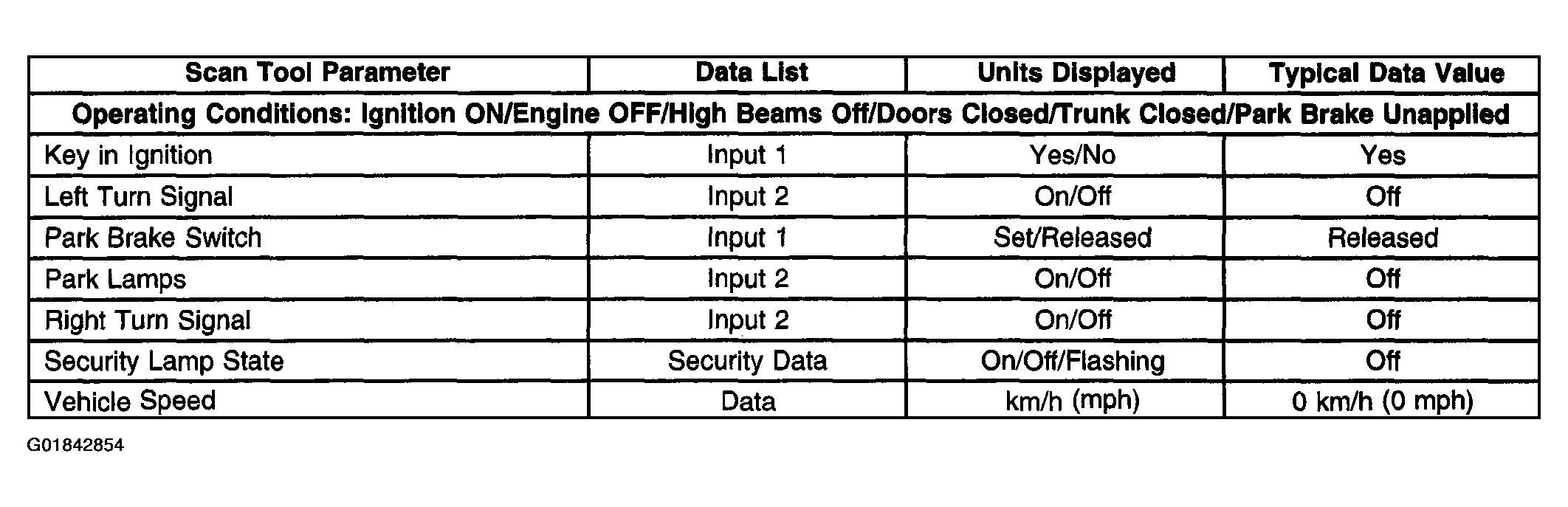

Fig 2: Body Control Module (BCM) Data Values (2 Of 2)
G01842854Courtesy of GENERAL MOTORS CORP.
