Ambient Air Temperature Sensor Resistance Specifications
Ambient Air Temperature Sensor Resistance Specifications

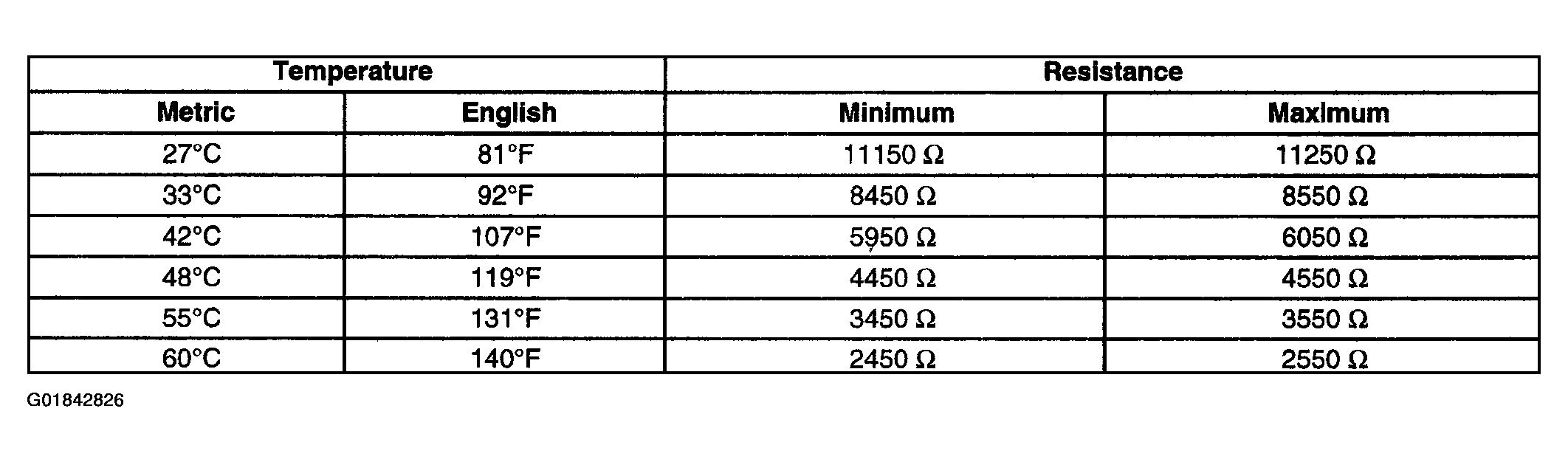

Fig 1: Ambient Air Temperature Sensor Resistance
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
