Disassembled Views

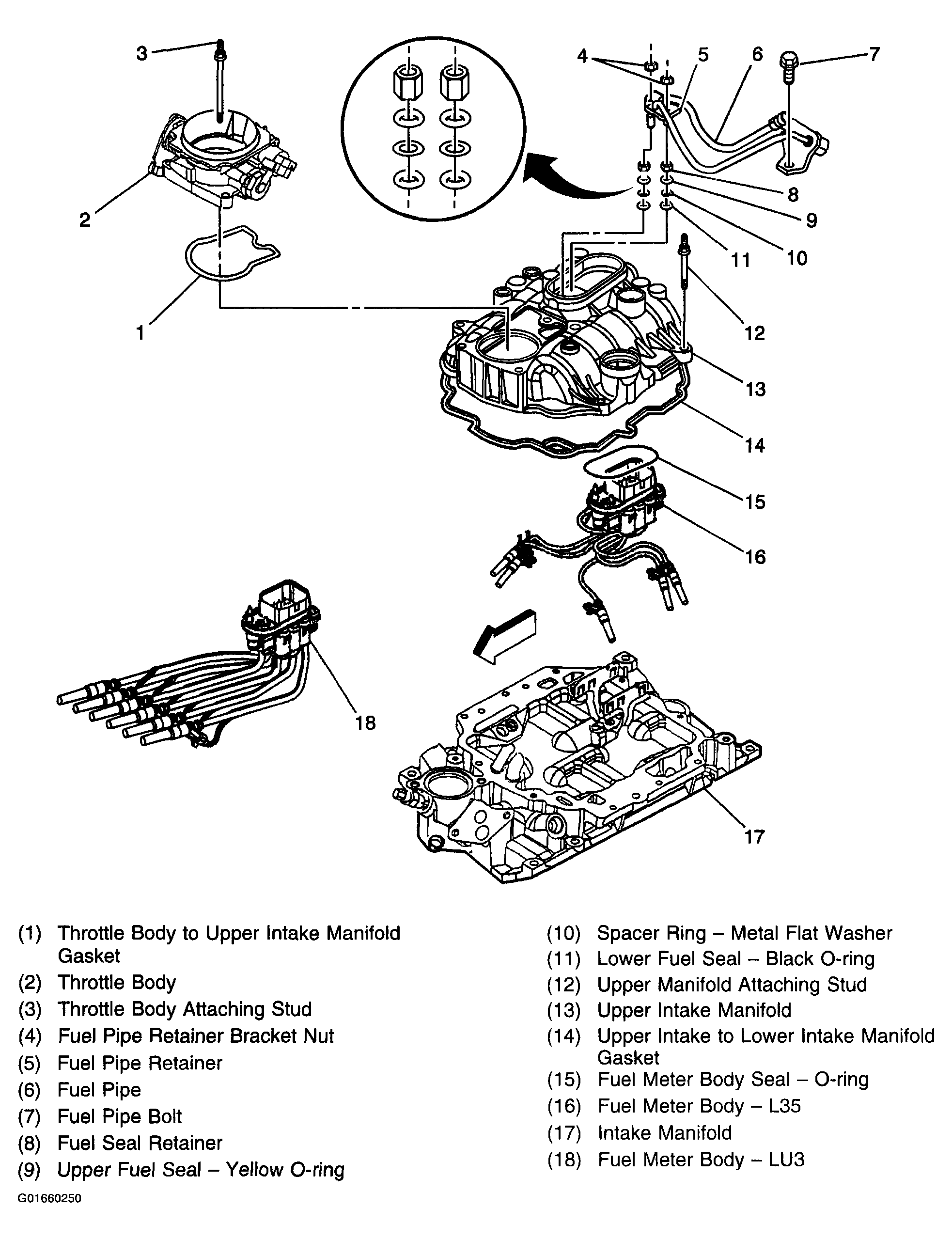

Fig 1: Upper and Lower Intake Manifold View
G01660250Courtesy of GENERAL MOTORS CORP.

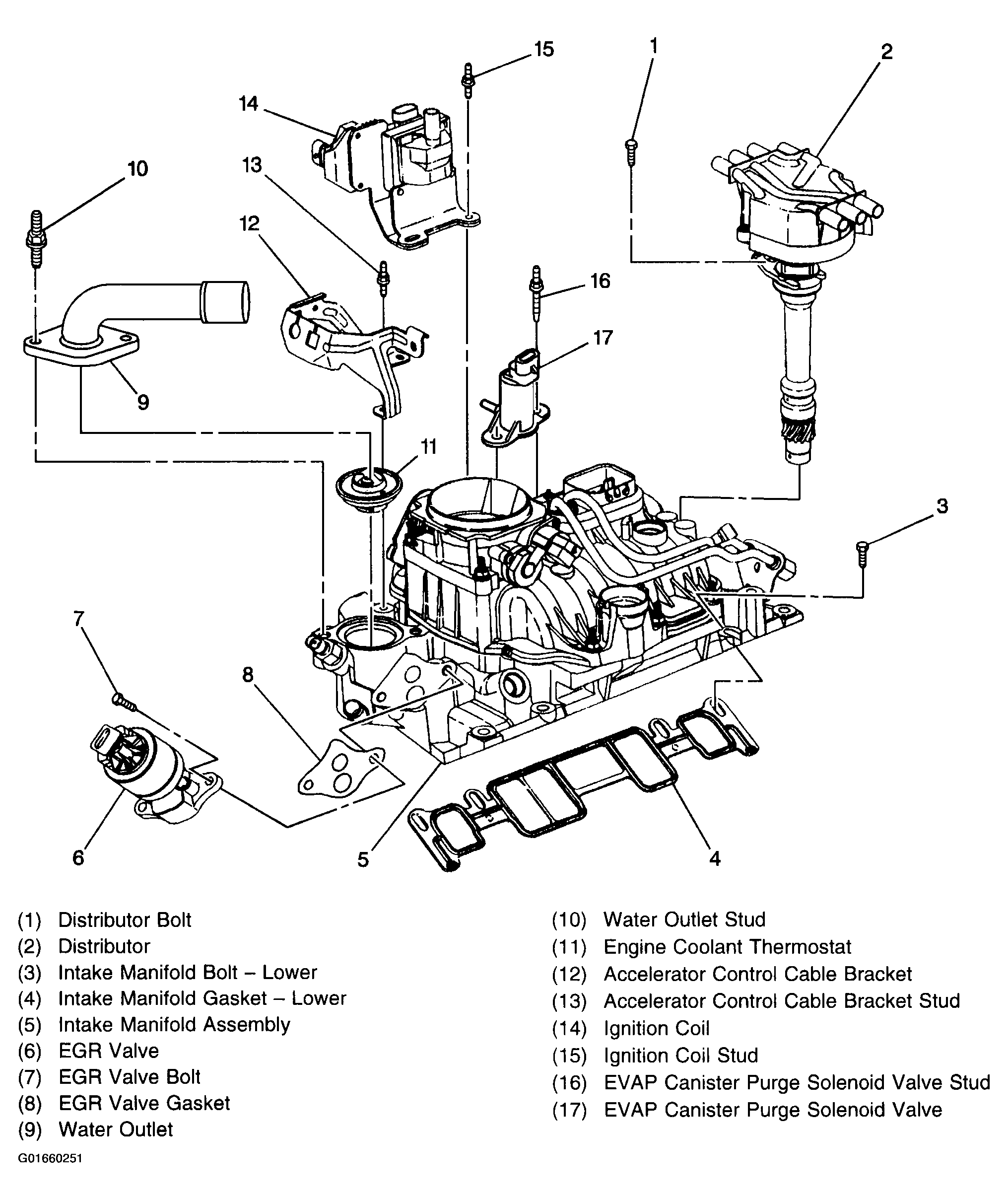

Fig 2: Upper Engine View 1
G01660251Courtesy of GENERAL MOTORS CORP.

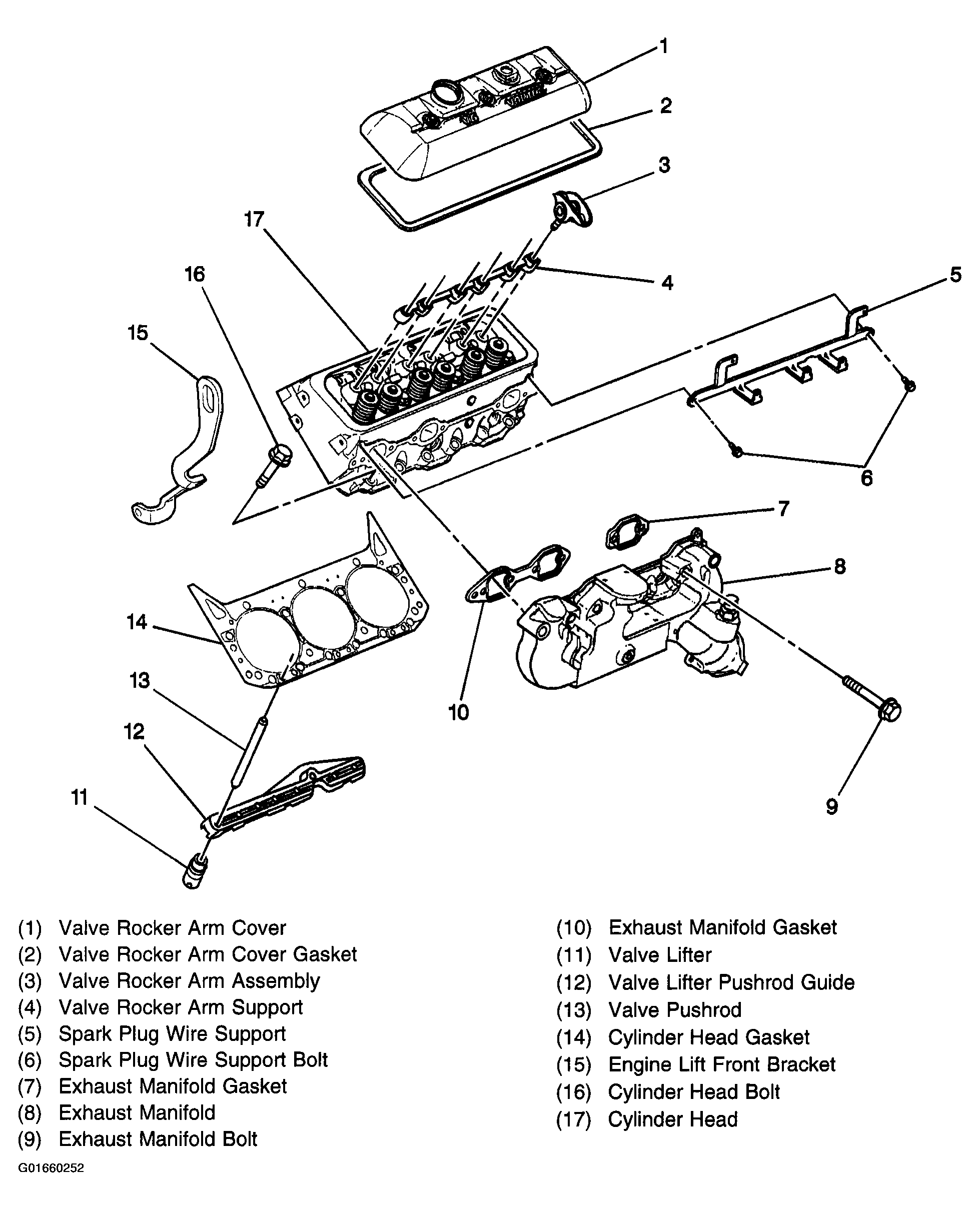

Fig 3: Upper Engine View 2
G01660252Courtesy of GENERAL MOTORS CORP.

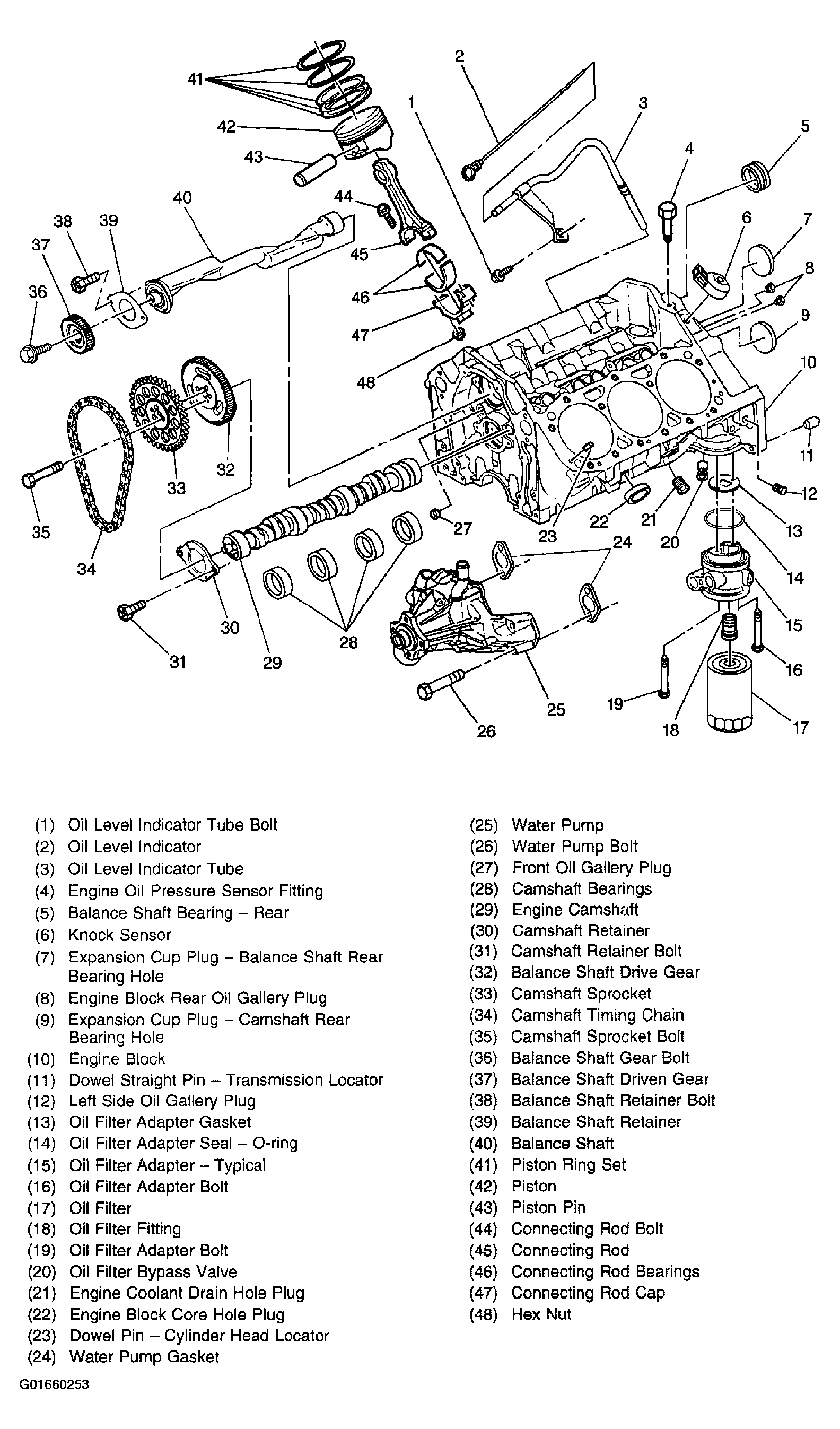

Fig 4: Lower Engine View 1
G01660253Courtesy of GENERAL MOTORS CORP.

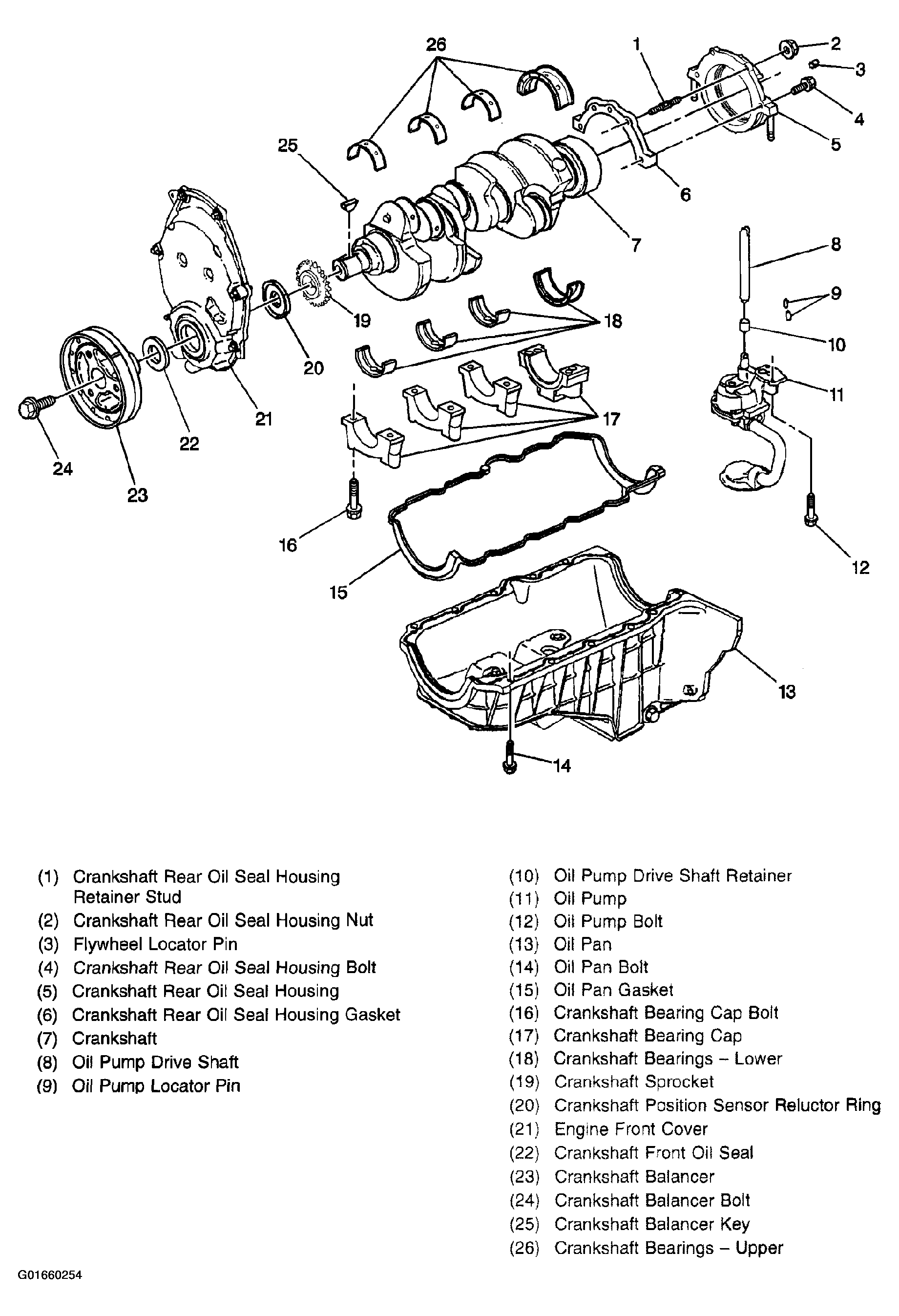

Fig 5: Lower Engine View 2
G01660254Courtesy of GENERAL MOTORS CORP.
