HVAC Component Views

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

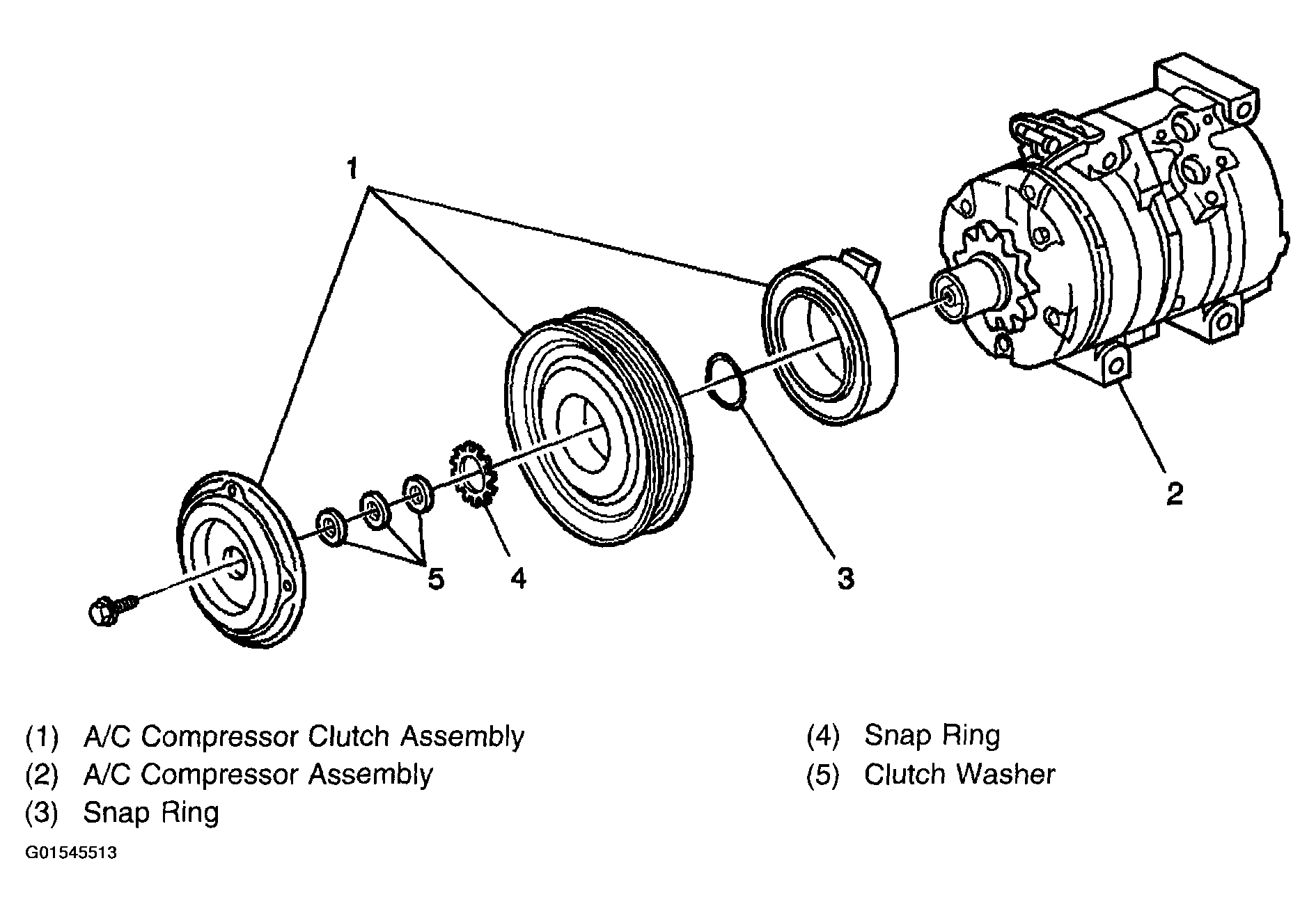

Fig 1: A/C Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

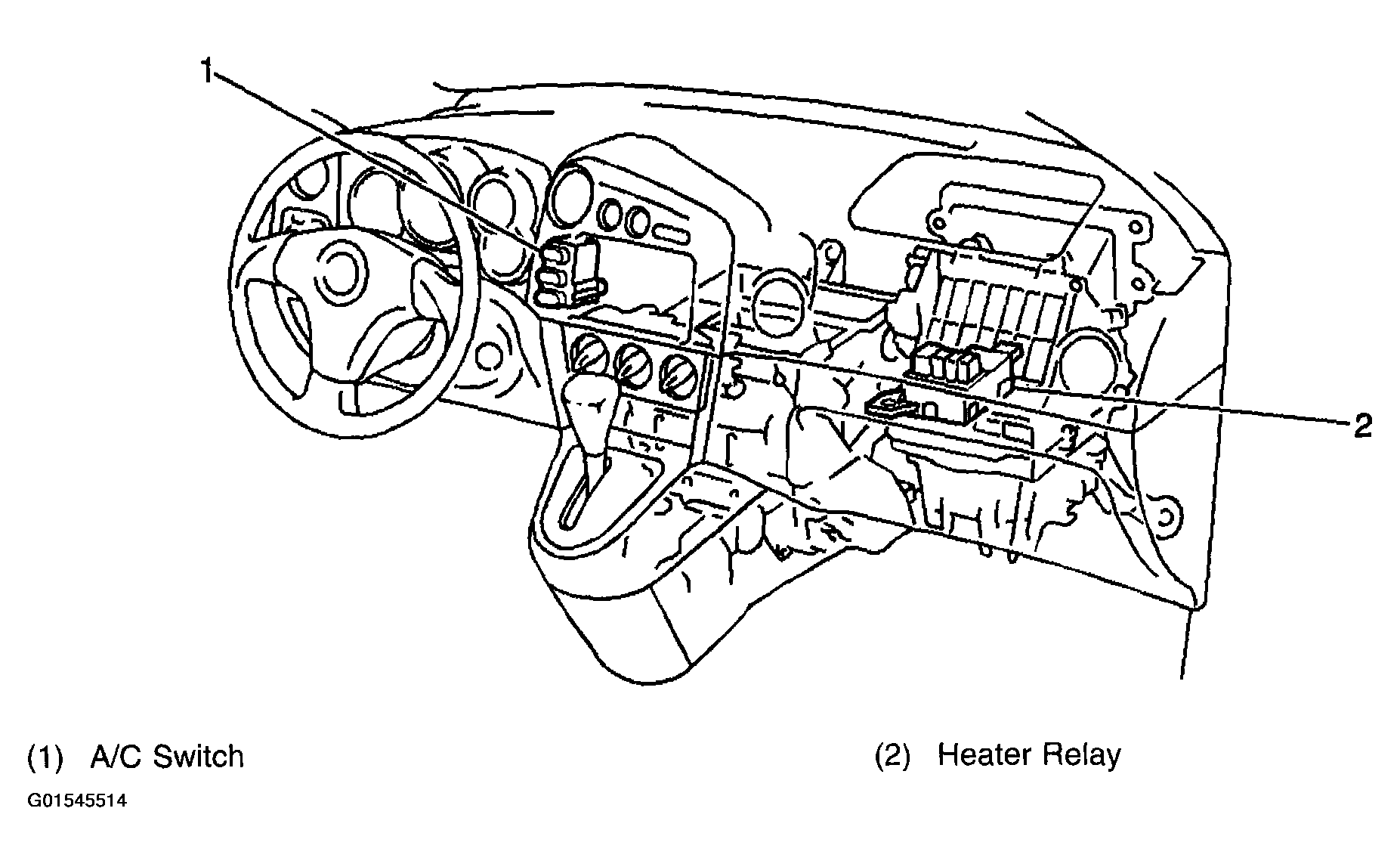

Fig 2: A/C Switch

Courtesy of GENERAL MOTORS CORP.

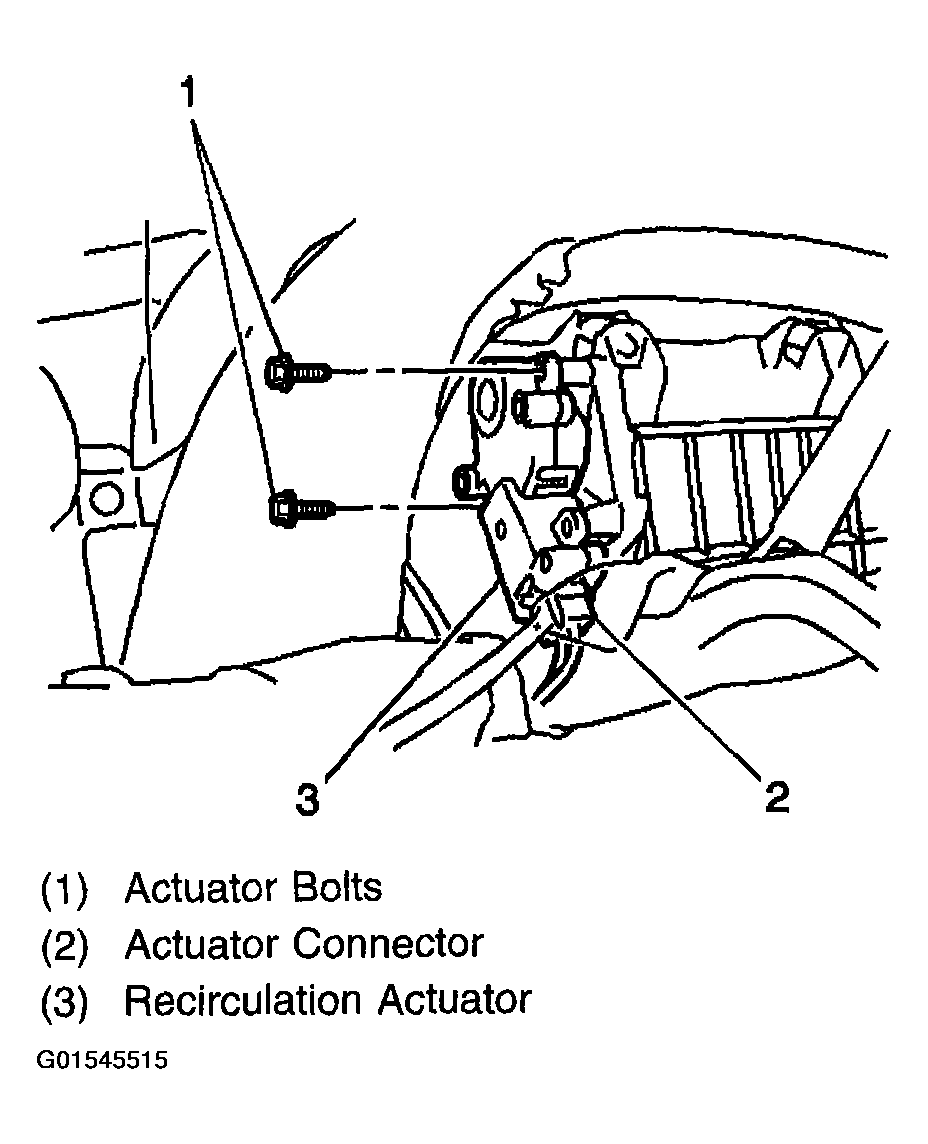

Fig 3: Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.

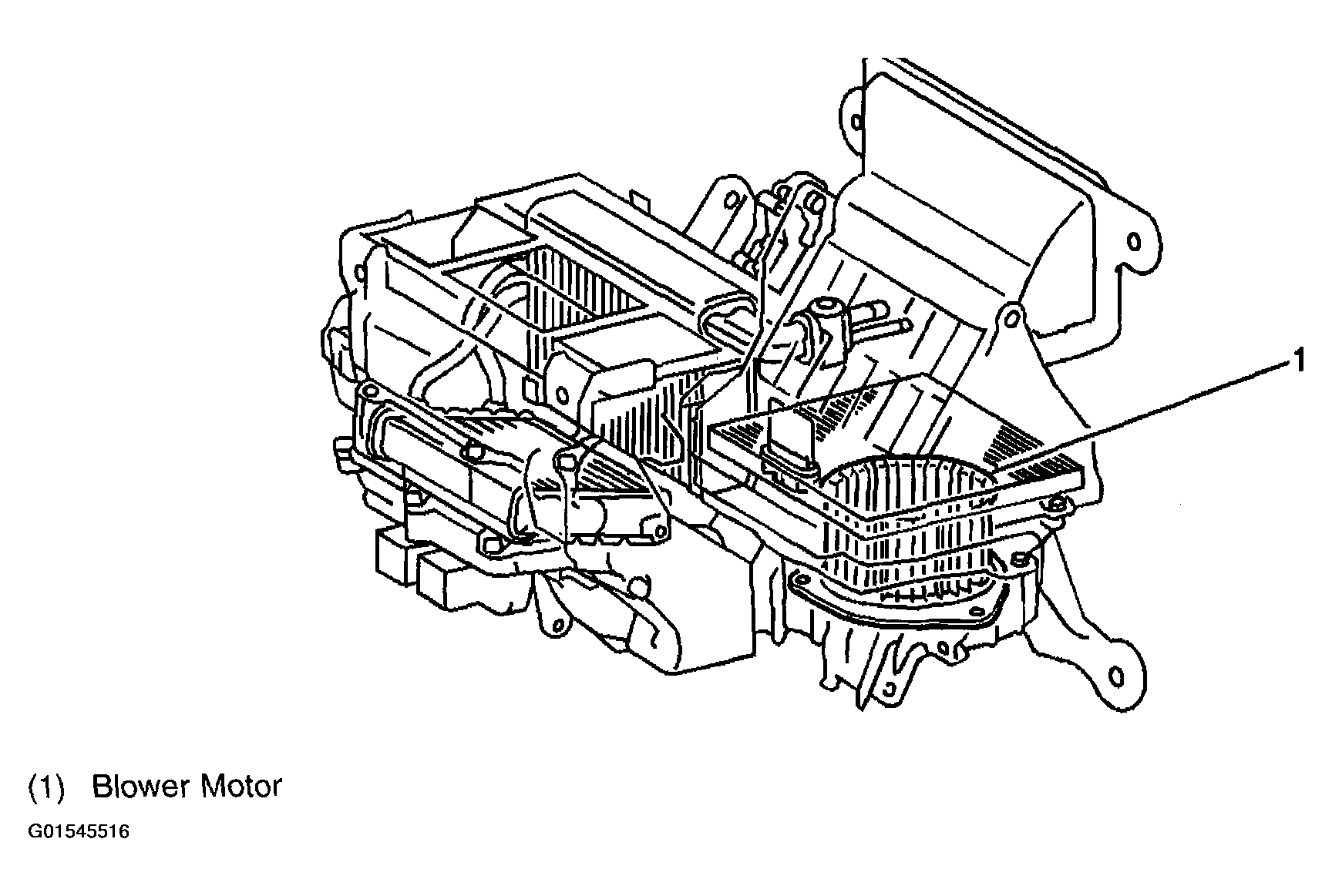

Fig 4: Blower Motor

Courtesy of GENERAL MOTORS CORP.

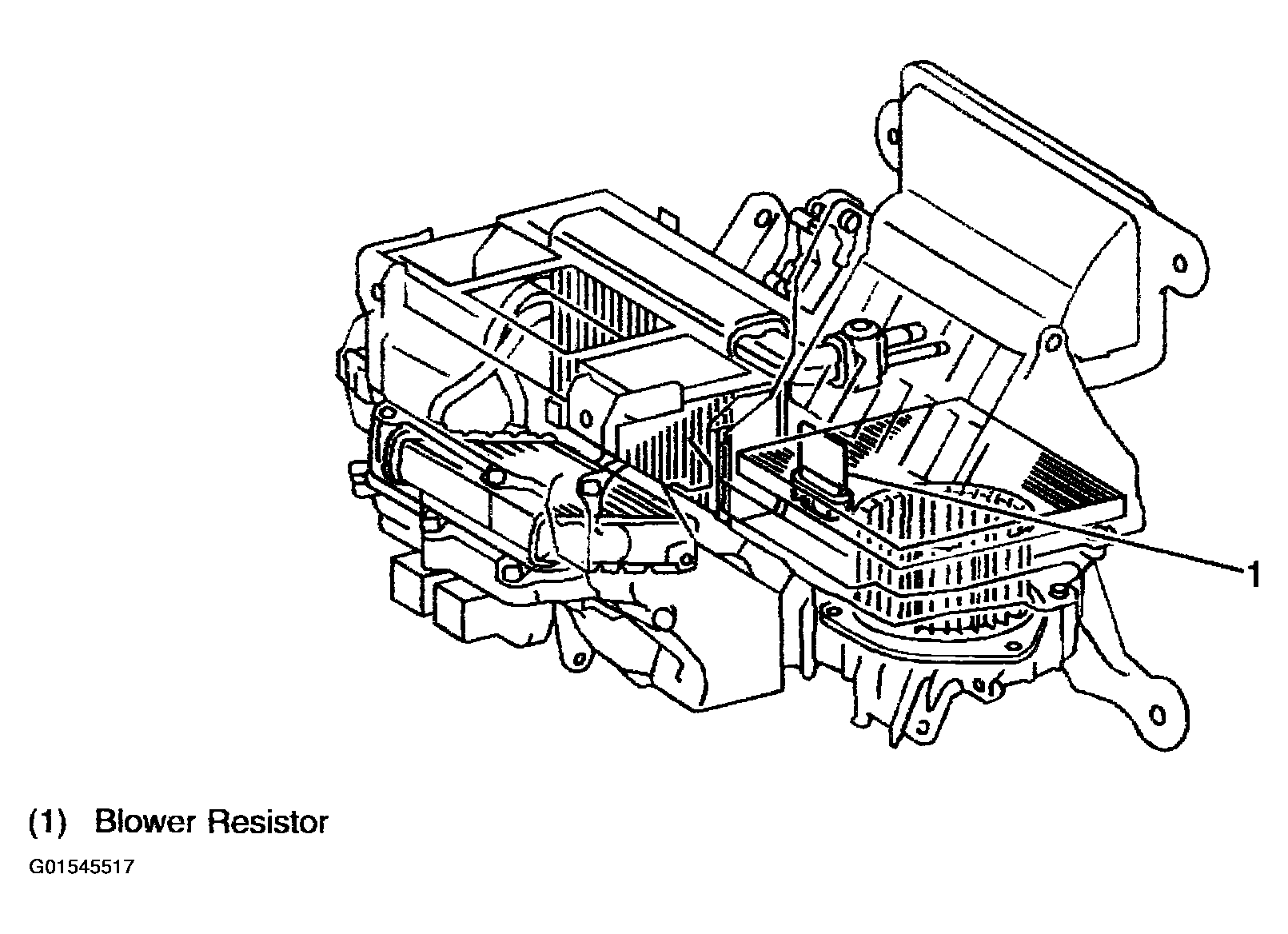

Fig 5: Blower Motor Resistor

Courtesy of GENERAL MOTORS CORP.

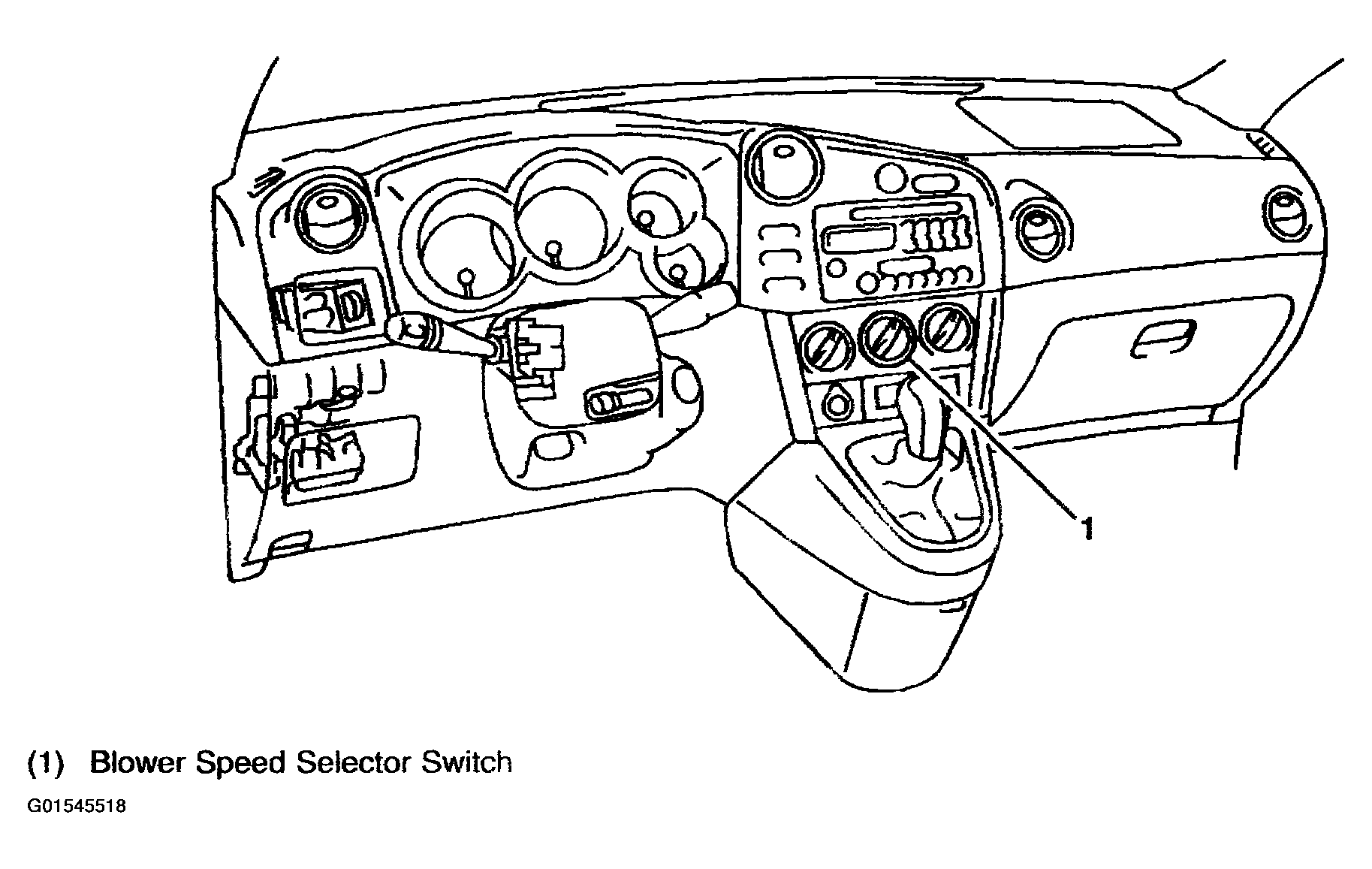

Fig 6: Blower Speed Selector Switch

Courtesy of GENERAL MOTORS CORP.

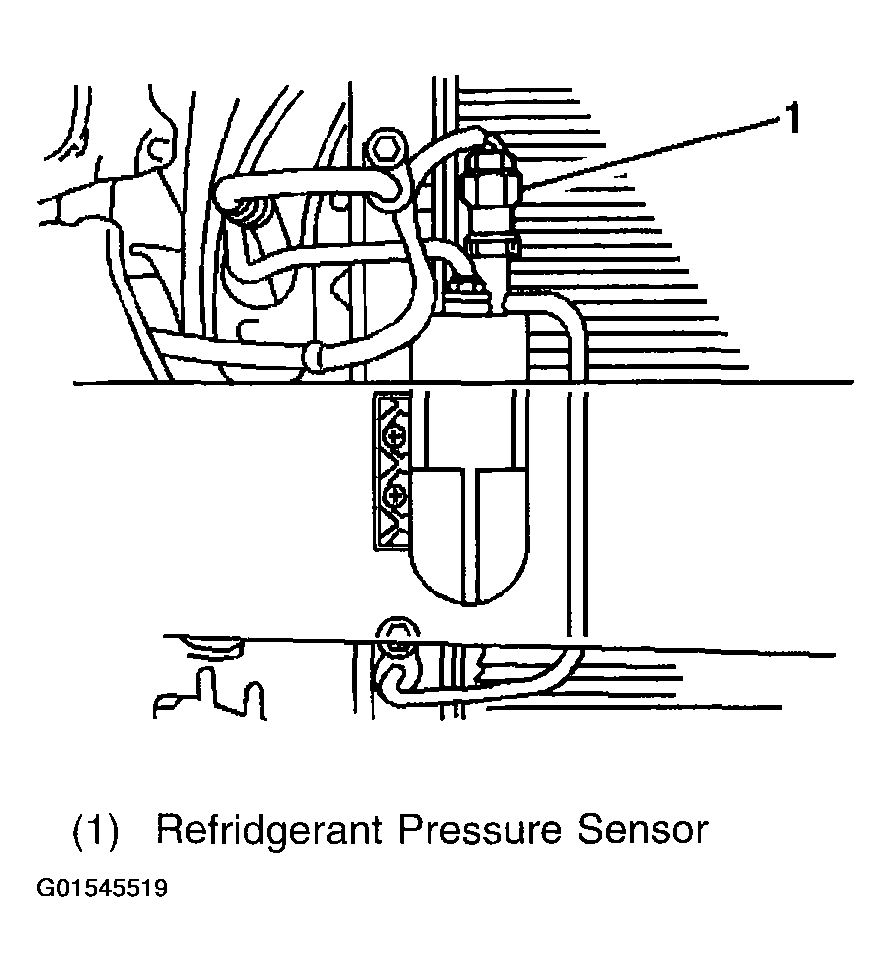

Fig 7: Refrigerant Pressure Switch

Courtesy of GENERAL MOTORS CORP.
