Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the mode control cable in the vehicle. Route the cable as previously noted.
  2. Connect the mode control cable to the HVAC module assembly.
  3. Connect the mode control cable to the HVAC control unit.

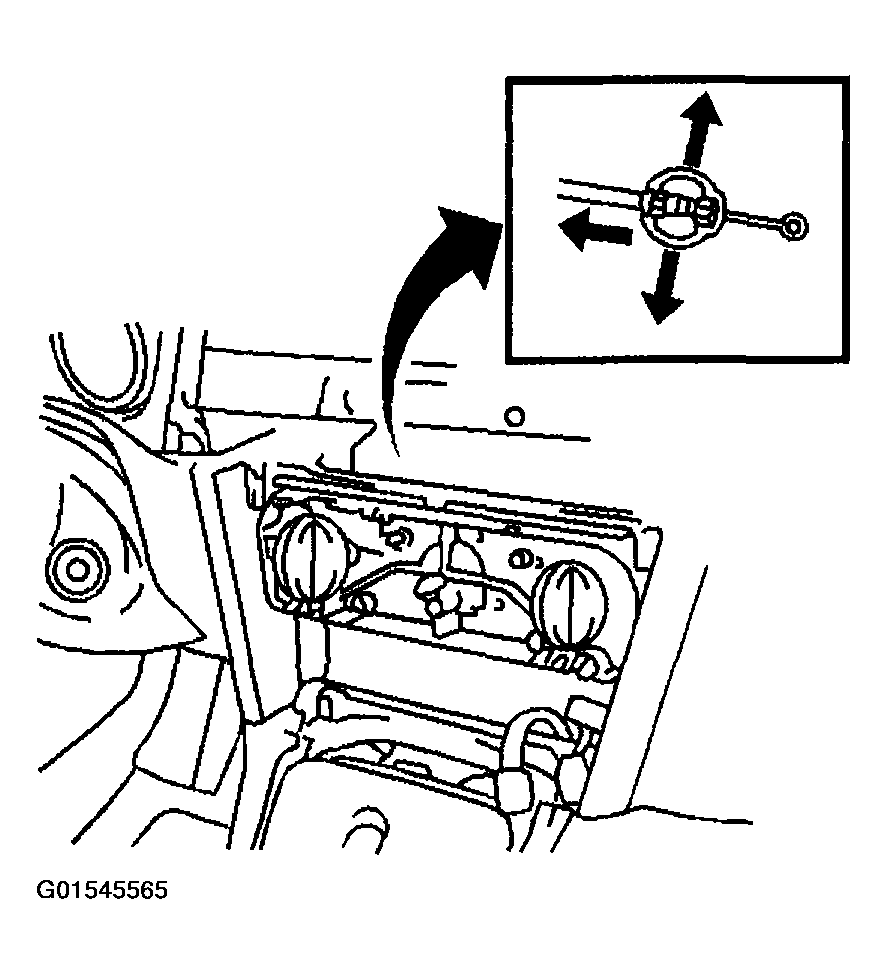

    Fig 1: Connecting Mode Control Cable To HVAC Control Unit
    G01545565Courtesy of GENERAL MOTORS CORP.

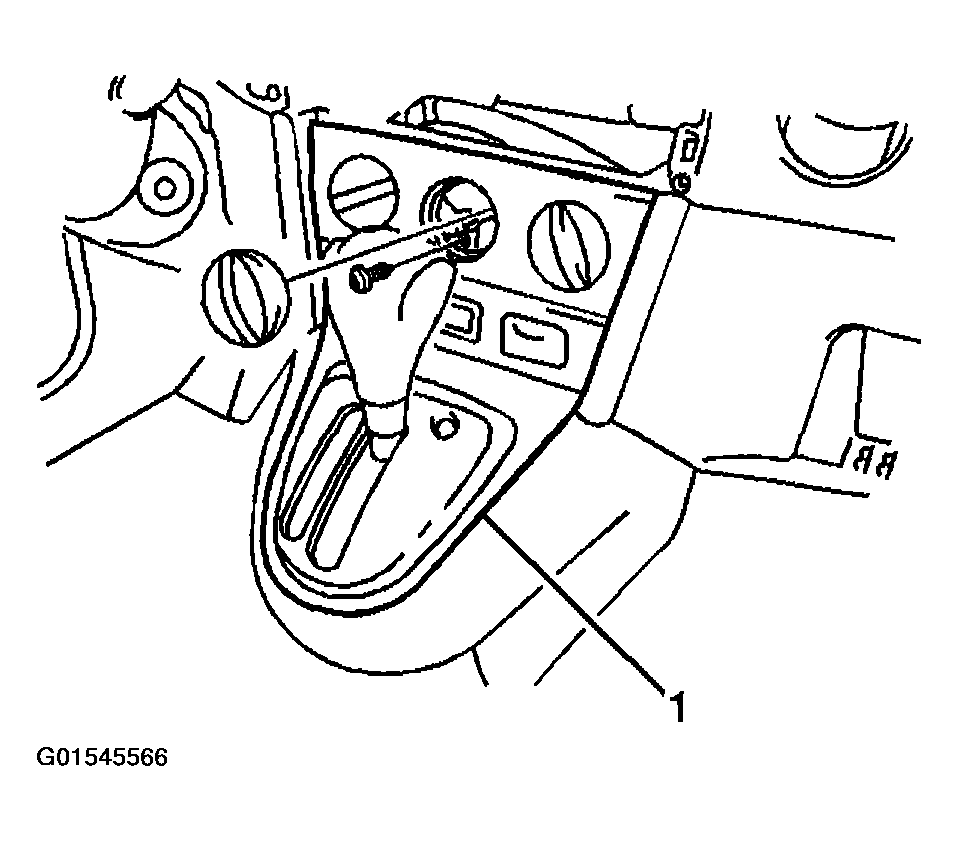

  4. Install the center console and heater control trim panel (1).
    Fig 2: Installing Center Console And Heater Control Trim Panel
    G01545566Courtesy of GENERAL MOTORS CORP.
  5. Install the screw to the control unit.
  6. Install the center knob to the HVAC control unit.
  7. Install the radio. Refer to RADIO REPLACEMENT in Entertainment.
