Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio. Refer to RADIO REPLACEMENT in Entertainment.
  2. Remove the center knob from the HVAC control unit.
  3. Remove the screw from the control unit.
  4. Remove the center console and heater control trim panel (1).

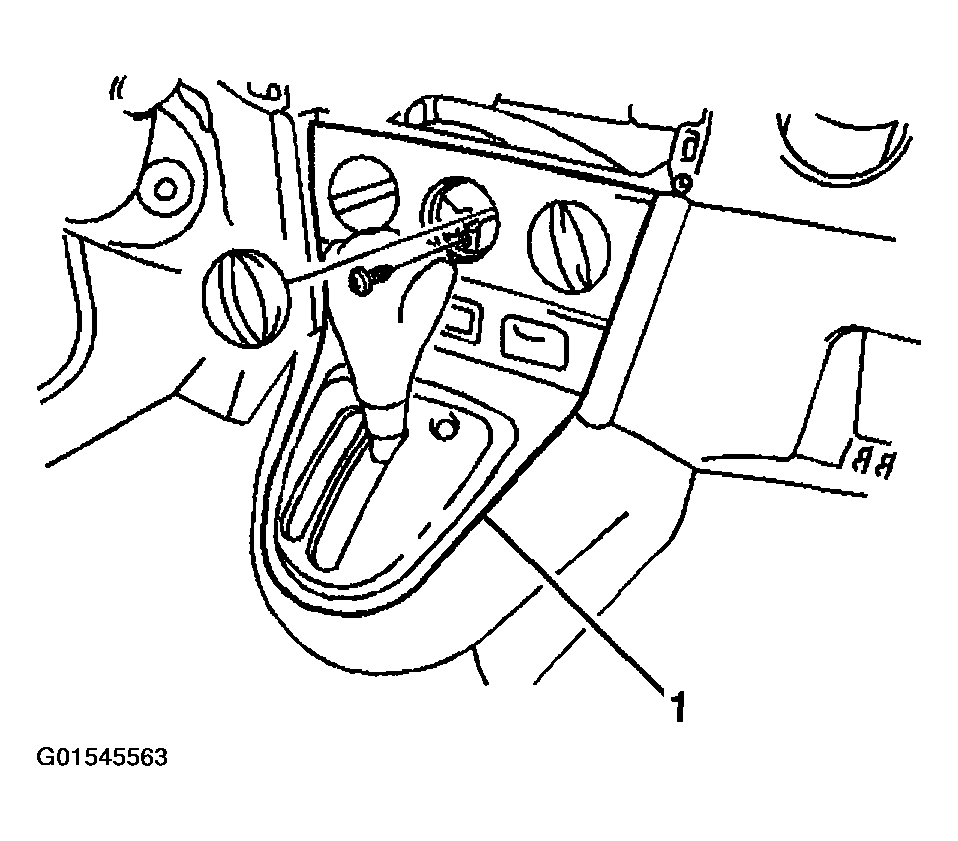

    Fig 1: Removing Center Console And Heater Control Trim Panel
    G01545563Courtesy of GENERAL MOTORS CORP.

    Important:  Note the routing of the cable to make installation easier.

  5. Disconnect the mode control cable from the HVAC control unit.
  6. Disconnect the mode control cable from the HVAC module assembly.
  7. Remove the mode control cable from the vehicle.

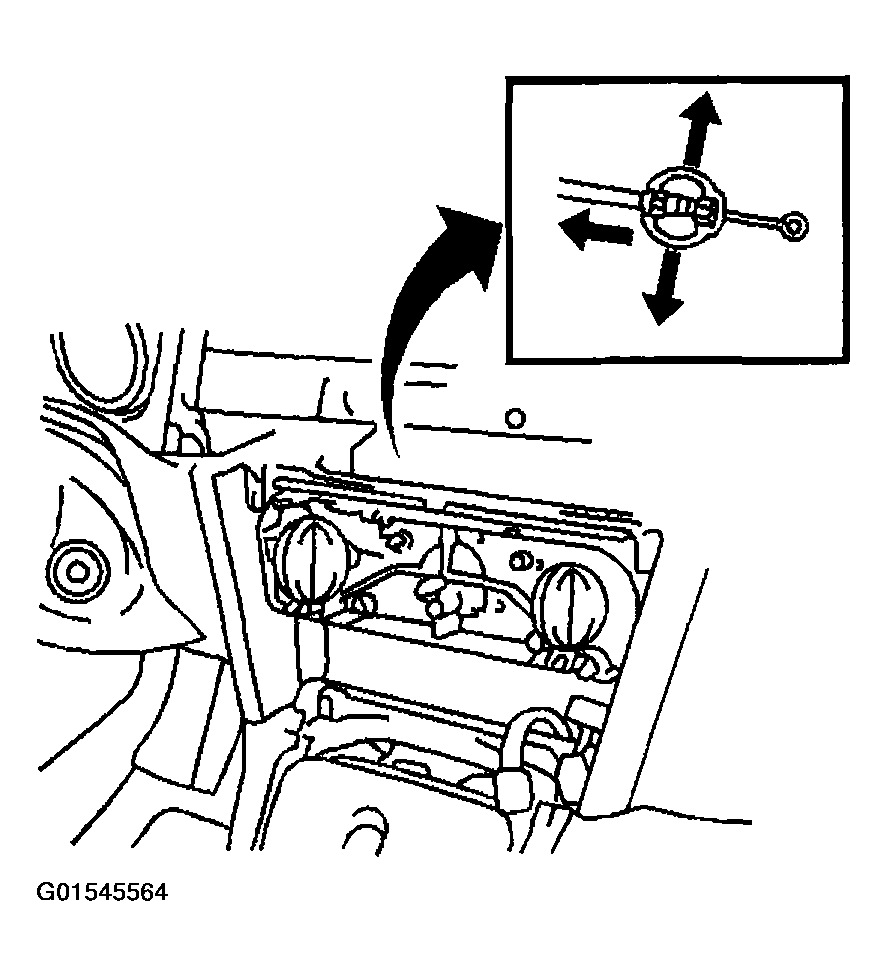

Fig 2: Disconnecting Mode Control Cable From HVAC Control Unit
G01545564Courtesy of GENERAL MOTORS CORP.
