Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Position the temperature control cable in the vehicle. Route the cable as previously noted.
Connect the temperature control cable to the HVAC module assembly.
Connect the temperature control cable to the HVAC control unit.

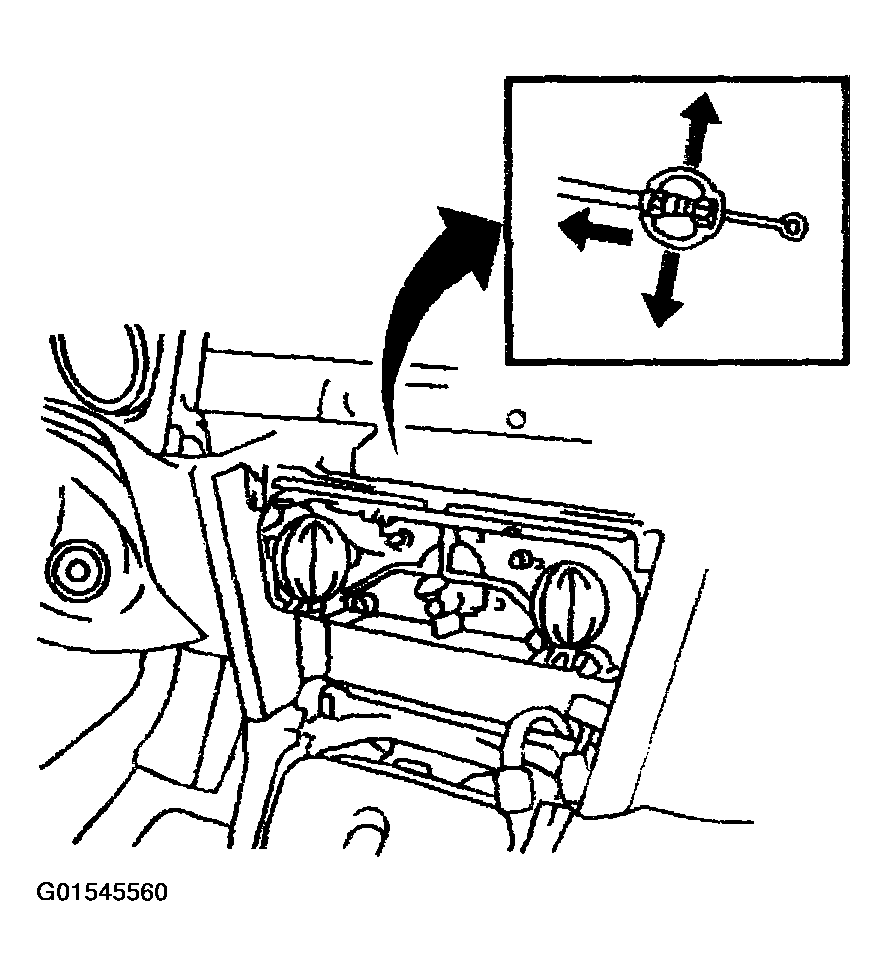

Fig 1: Connecting Temperature Control Cable To HVAC Control Unit
Courtesy of GENERAL MOTORS CORP.
Install the center console and heater control trim panel (1).

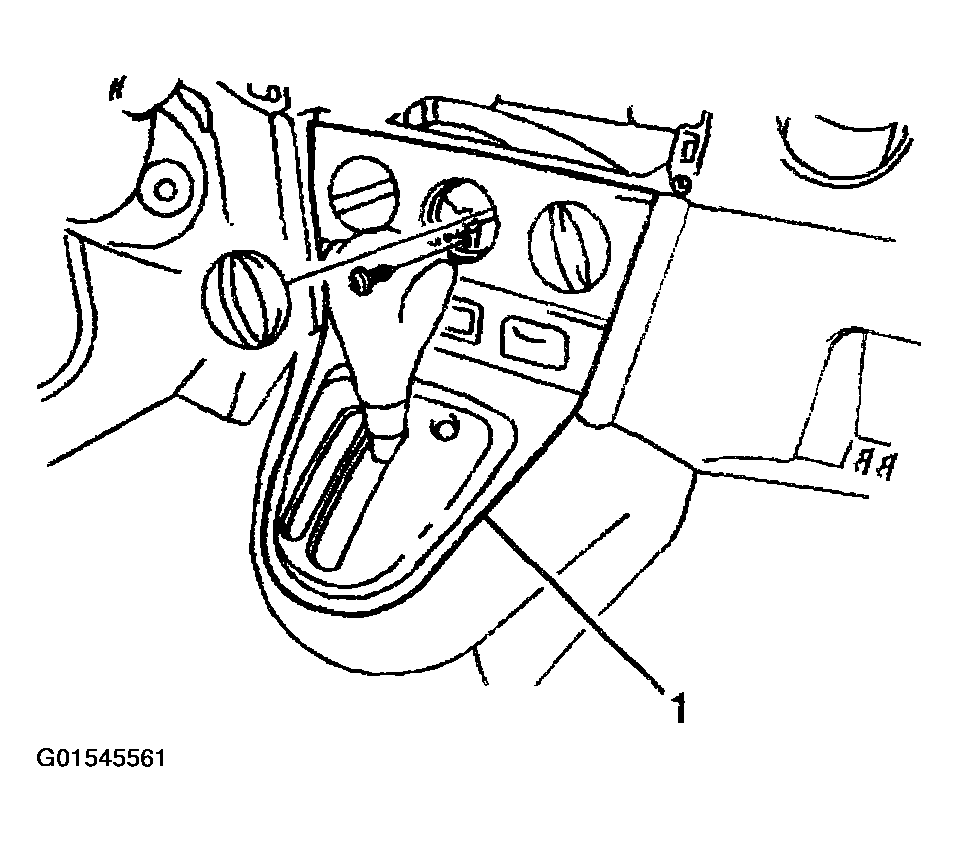

Fig 2: Installing Center Console And Heater Control Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the screw to the control unit.
Install the center knob to the HVAC control unit.
Install the radio. Refer to RADIO REPLACEMENT in Entertainment.
