Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Care should be taken to avoid scratching or cracking the spring coating when handling the front suspension coil spring. Damage can cause premature failure.

Important: Do not tighten the nuts or the bolts.

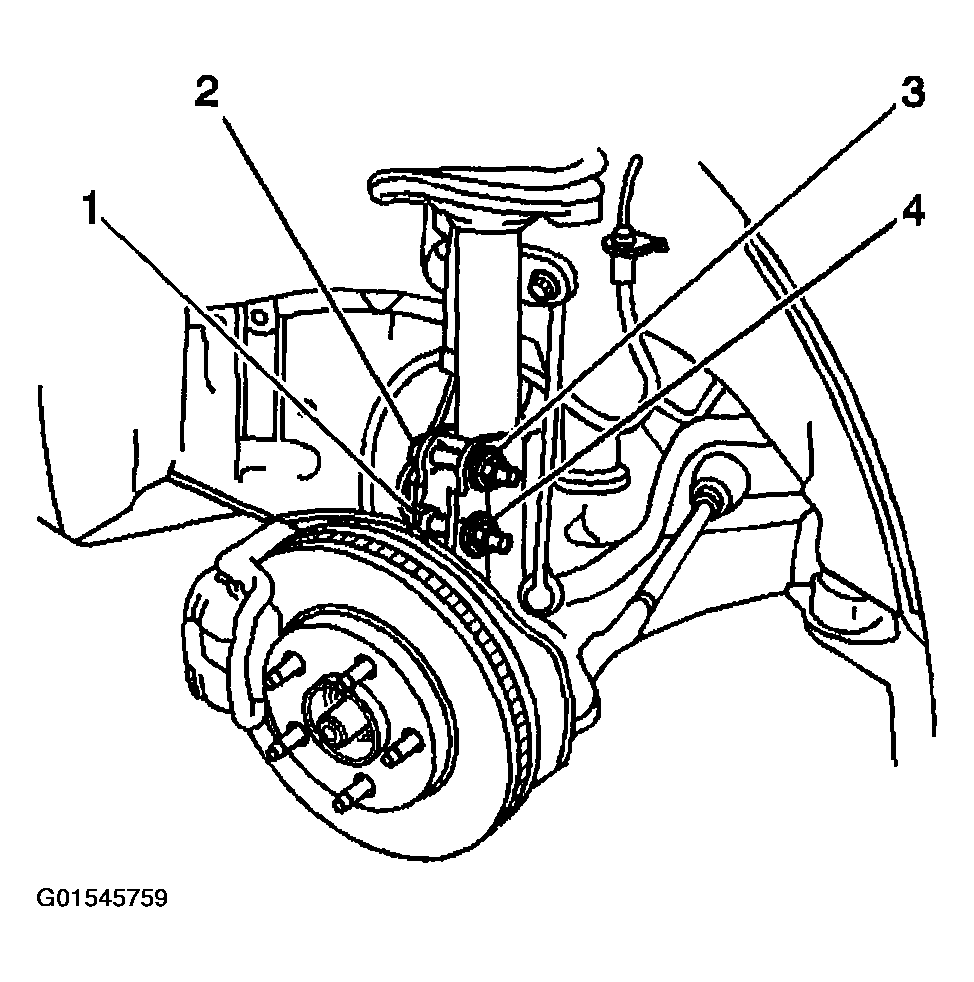

Install the 2 bolts (1,2) and the 2 nuts (3,4) to the lower side of the strut assembly:

Fig 1: Installing Strut Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the top of the strut assembly and the 3 nuts to the strut tower.
Tighten

Tighten the nuts to 39 N.m (28.8 lb ft).
Tighten the nuts and the bolts on the lower side of the strut assembly.
Tighten

Tighten the nuts and bolts to 220 N.m (162.3 lb ft).
If the vehicle has ABS, install the ABS wheel speed sensor to the knuckle. Refer to WHEEL SPEED SENSOR REPLACEMENT - FRONT in Antilock Brake System.

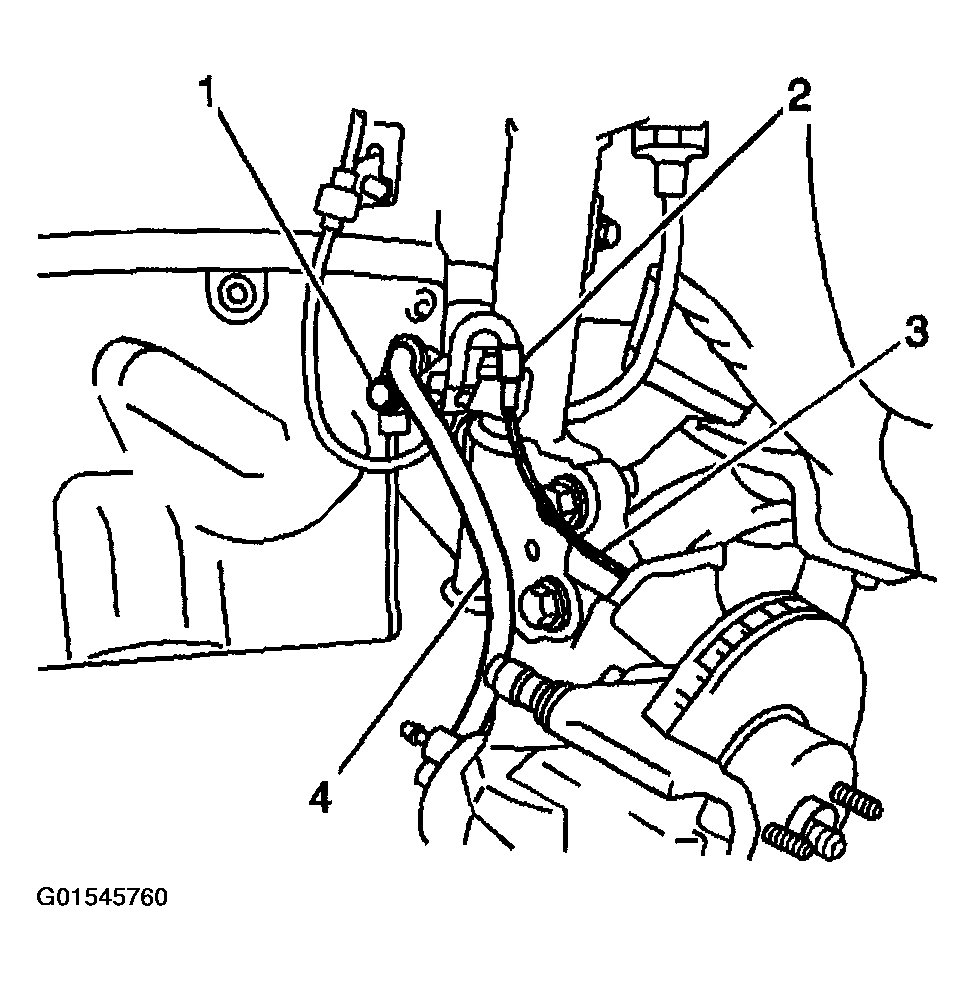

Install the bolt (1) in order to retain the front brake hose to the bracket on the strut.
Tighten

Tighten the bolt to 29 N.m (21.4 lb ft).

Fig 2: Installing Front Brake Hose
Courtesy of GENERAL MOTORS CORP.

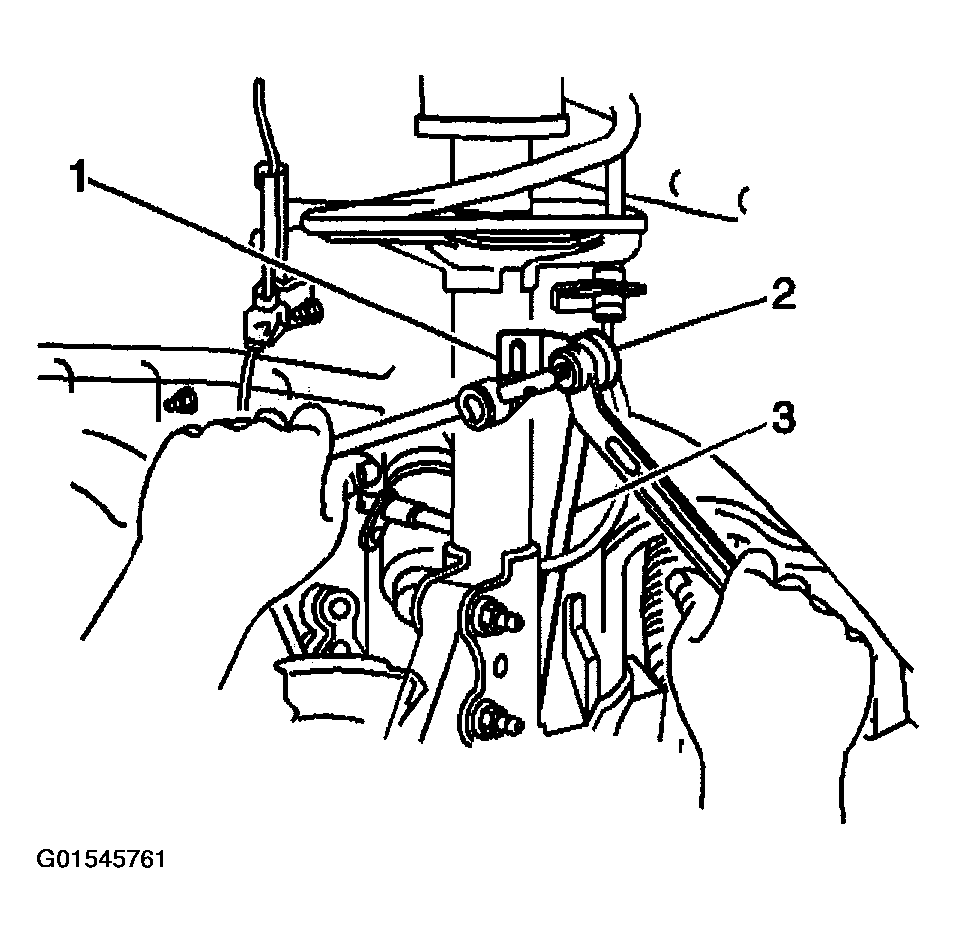

Install the nut and the stud to the bracket (1) in order to connect the link (3) to the strut. Use a wrench in order to hold the front stabilizer shaft link stud.

Fig 3: Installing Link to Strut
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the nut to 74 N.m (54.6 lb ft).
Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
Measure the front wheel alignment. Adjust the alignment if necessary. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.
