Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut assembly. Refer to STRUT ASSEMBLY REPLACEMENT  .
  2. Use the J 45400,  or equivalent, in order to compress the spring (8).

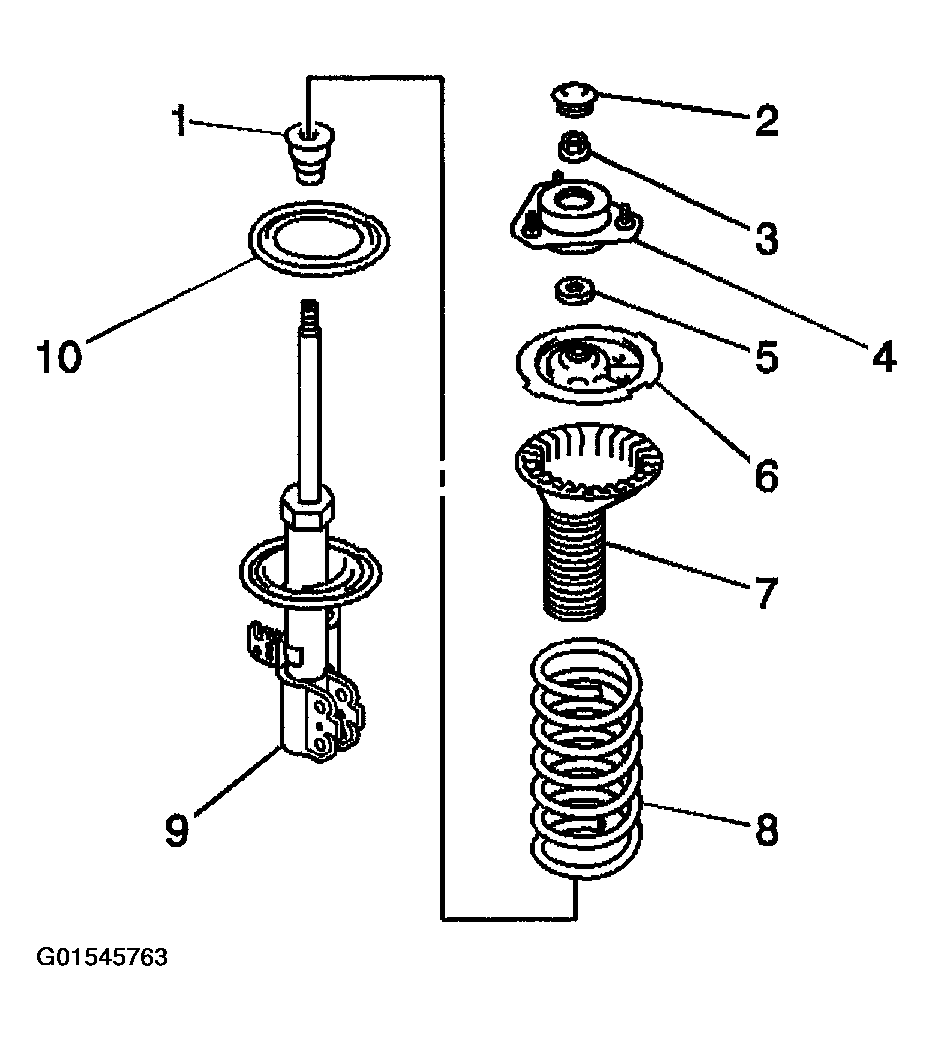

    Fig 1: Removing Strut, Strut Component And Spring
    G01545763Courtesy of GENERAL MOTORS CORP.
  3. Remove the strut mount cover (2).
  4. Remove the strut mount nut (3).
  5. Remove the strut mount (4).
  6. Remove the seal (5).
  7. Remove the spring seat (6).
  8. Remove the strut shield (7).
  9. Remove the spring (8).
  10. Remove the strut bumper (1).
  11. Remove the spring lower insulator (10).
  12. Remove the absorber portion of the strut (9).
