Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the negative (-) battery cable (3) from the negative (-) battery terminal.
Disconnect the positive (+) battery cable (1) from the positive (+) battery terminal.
Remove the bolt (4) and the battery hold down bracket (2).
Remove the battery (5) from the vehicle.

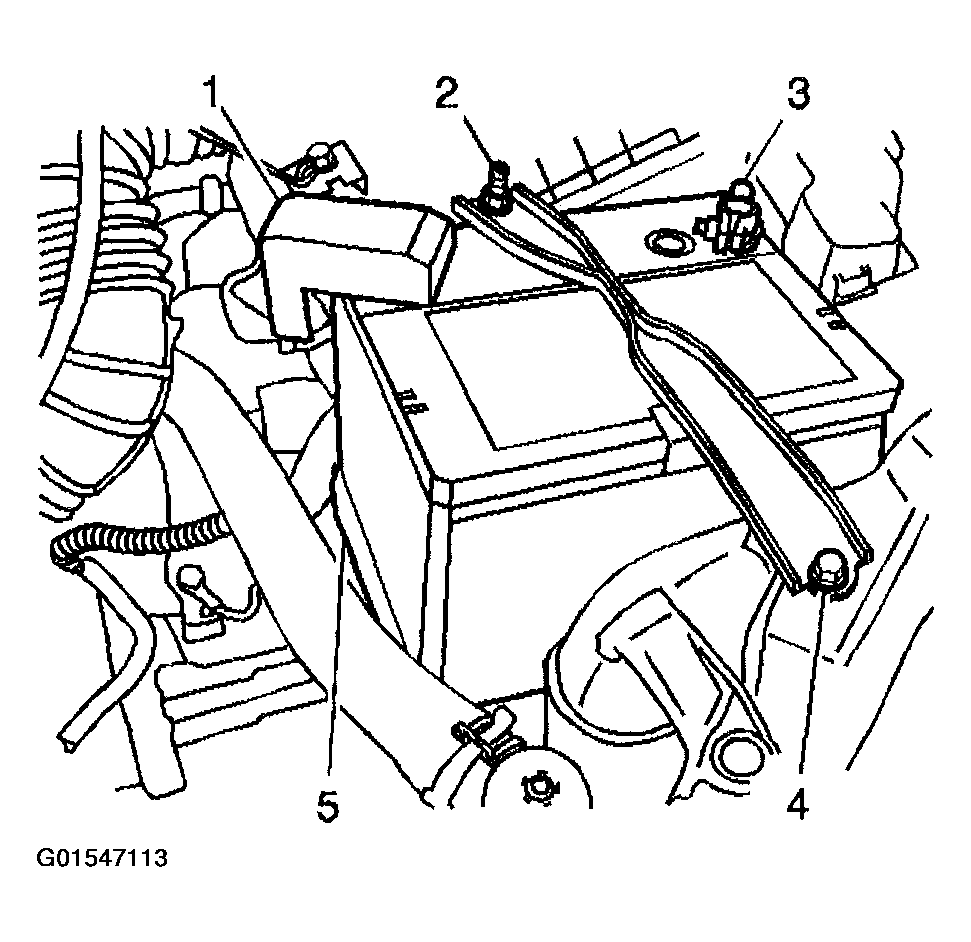

Fig 1: Removing Battery (5) From Vehicle

Courtesy of GENERAL MOTORS CORP.
