Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING AND LIFTING - AWD in General Information.
Reach up under the rear fascia to locate the backup lamp housing.

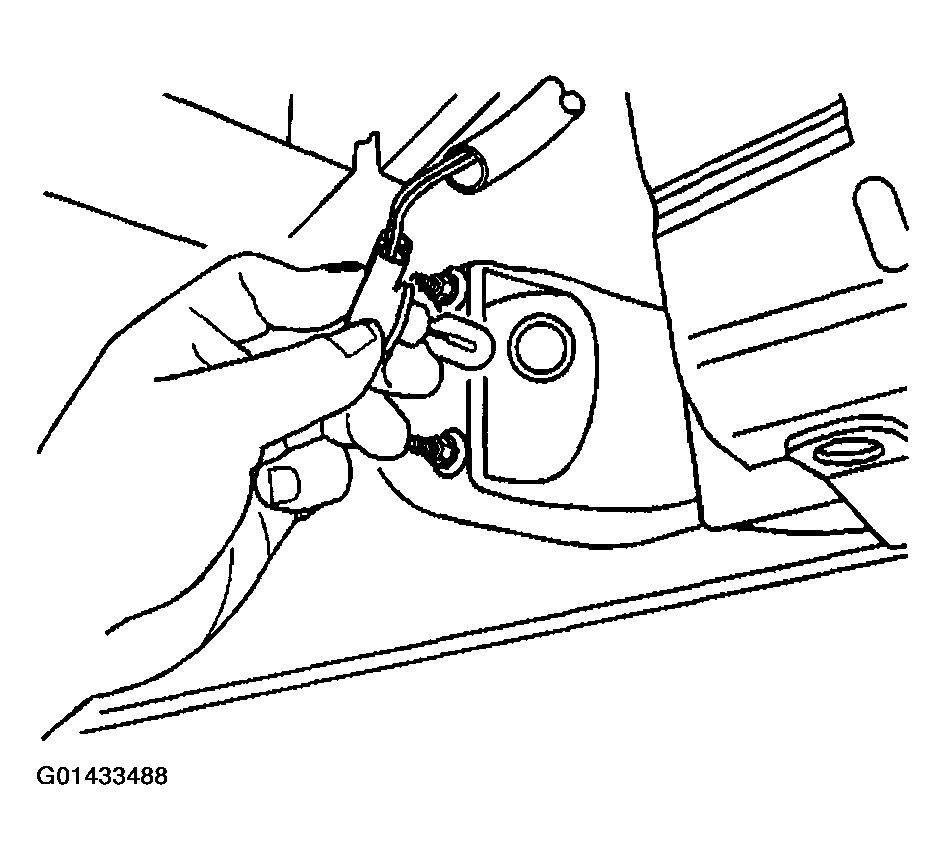

Fig 1: Removing Backup Lamp Housing
Courtesy of GENERAL MOTORS CORP.
Remove the backup lamp socket, from the backup lamp housing, by turning counterclockwise.
Remove the backup lamp bulb from the lamp socket.

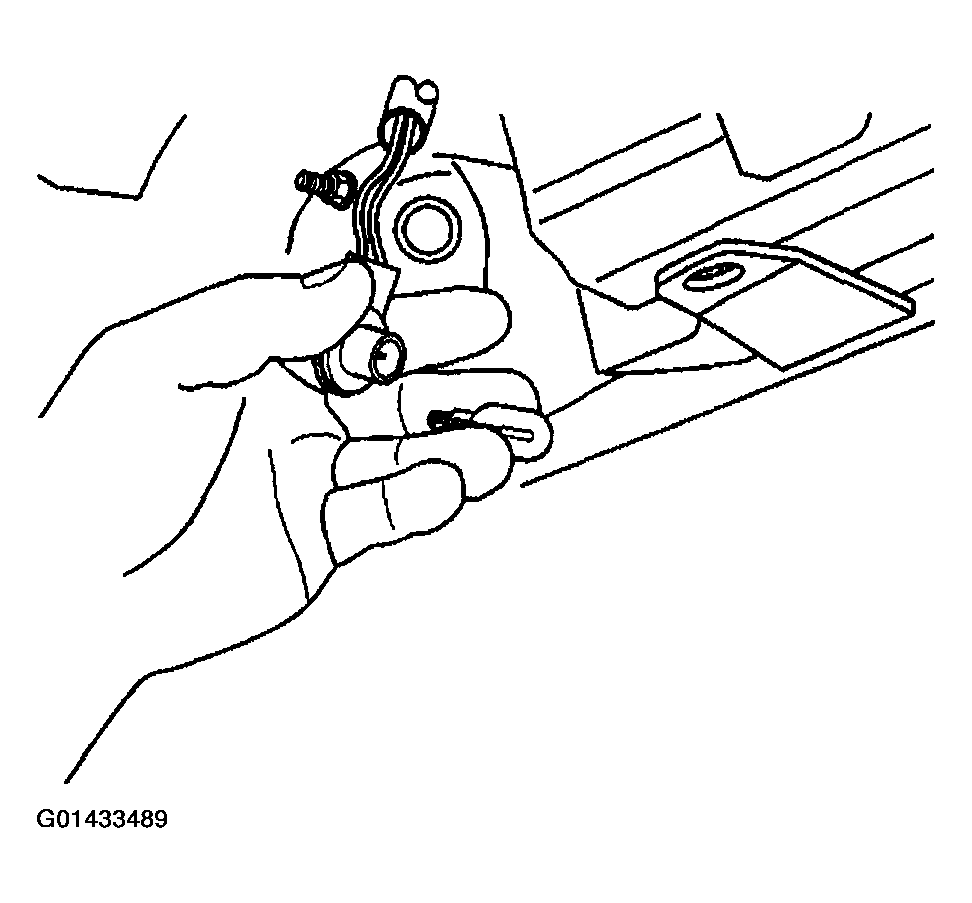

Fig 2: Removing Backup Lamp Bulb From Lamp Socket
Courtesy of GENERAL MOTORS CORP.
