Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamp bulb to the fog lamp, turning clockwise, if required.

Fig 1: Installing Fog Lamp Bulb To Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Install the fog lamp (1) to the front bumper fascia (2).

Fig 2: Installing Fog Lamp (1) To Front Bumper Fascia (2)
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the fog lamp.

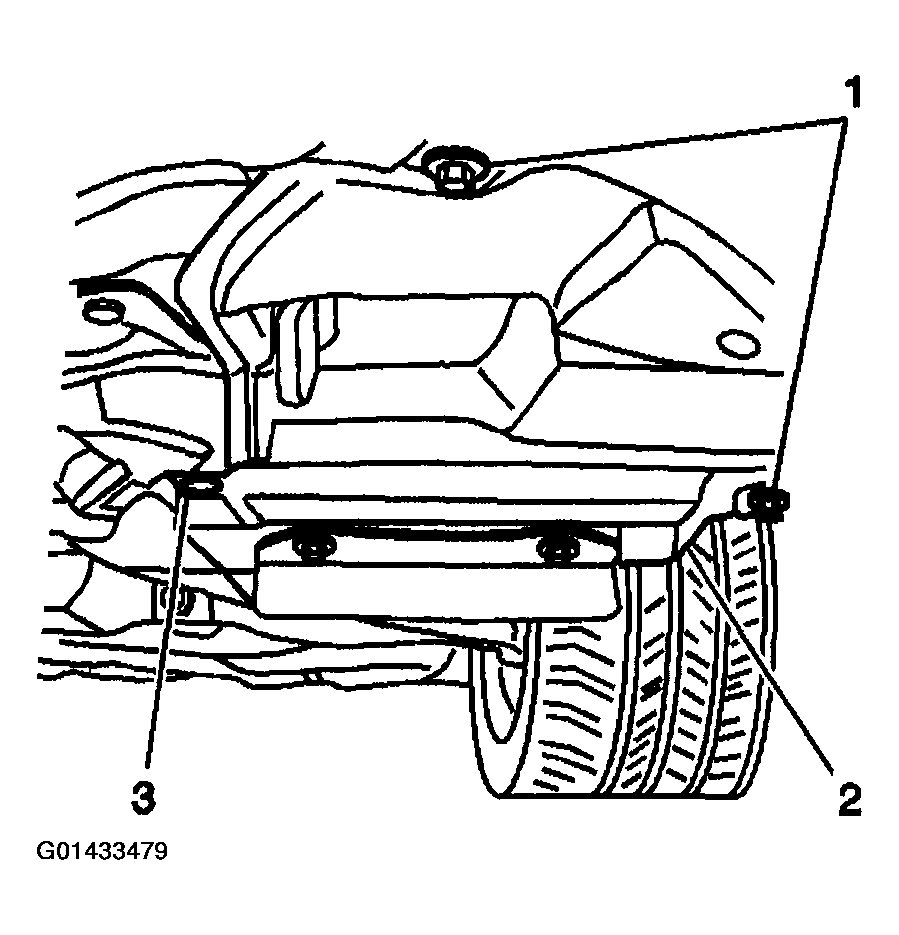

Install the two screws (1) and the push retainer (3) to the front lower splash shield (2).

Fig 3: Identifying Push Retainers & Lower Splash Shield
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
Check and adjust the fog lamp aim as necessary. Refer to FOG LAMP AIMING PROCEDURE .
