Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

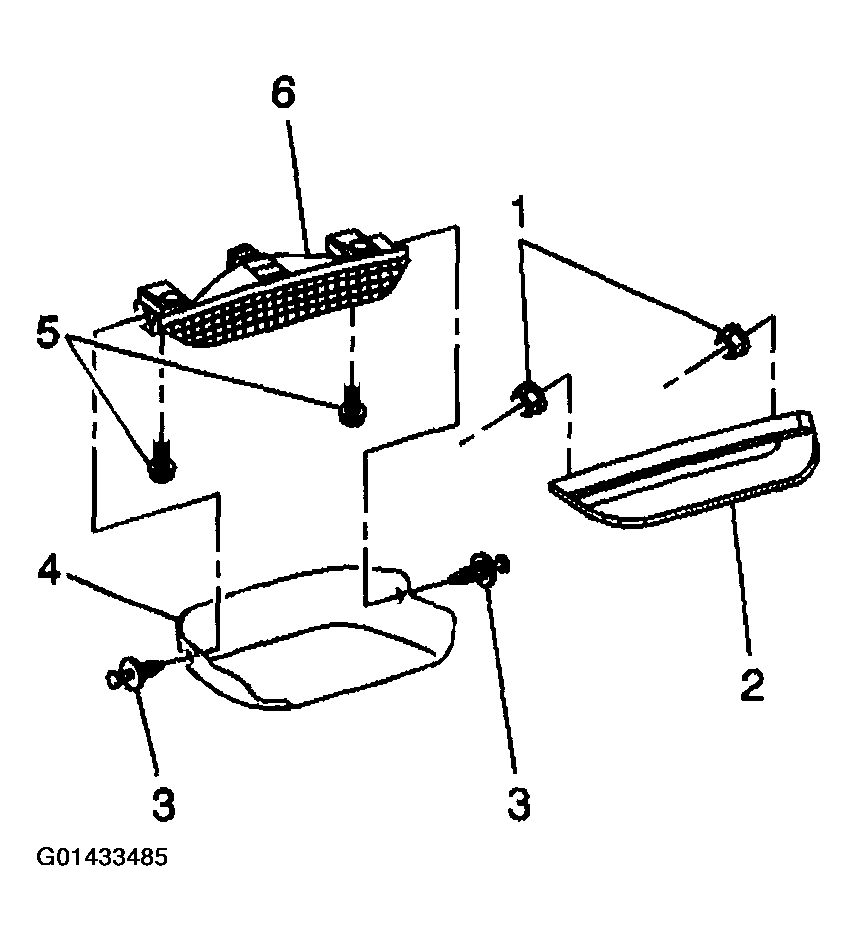

- Position the stoplamp cover (2) to the stop lamp (5).
- Install the 2 stoplamp cover nuts (1).
- Install the bulb to the lamp socket, if removed.
- Install the lamp socket to the stoplamp (6) by turning clockwise, if removed.
- Install the stoplamp (6).
- Install the 2 stop lamp screws (5) to the stop lamp (6).
- Position the stoplamp center cover (4) to the stop lamp (6).
- Install the 2 high mounted stop lamp cover push-in retainers (3) to the stop lamp center cover (4).
- Close the liftgate.
