Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

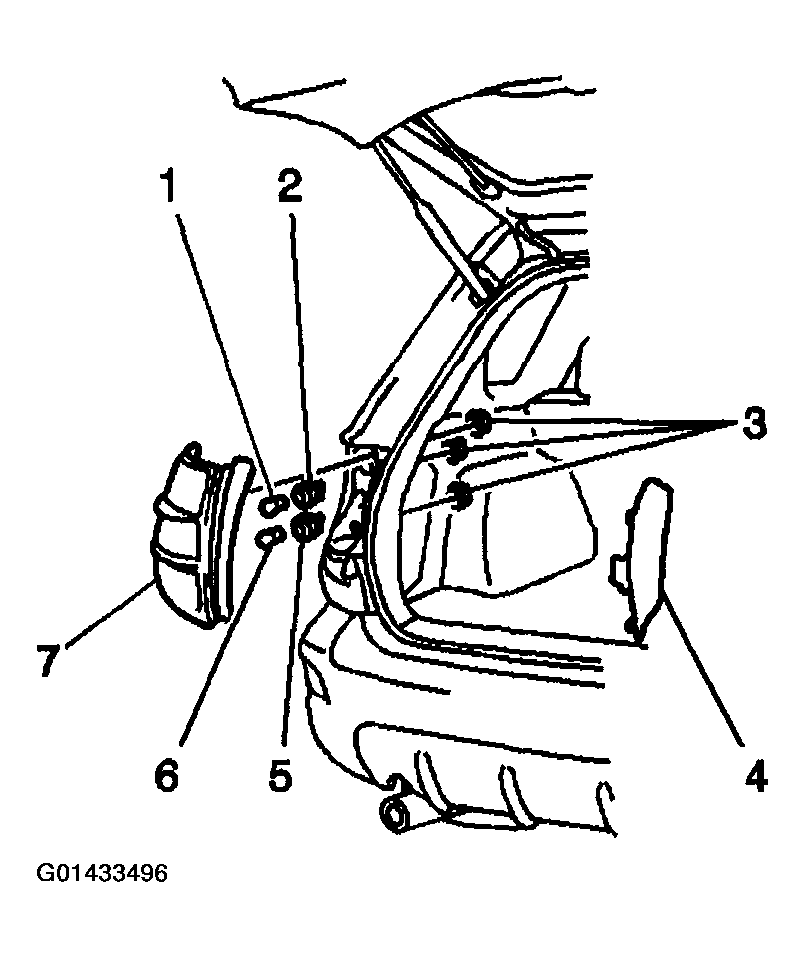

- Install the tail lamp bulb (1) to the lamp socket (2).
- Install the tail lamp socket (2) to the tail lamp (7).
Courtesy of GENERAL MOTORS CORP.
- Install the rear compartment trim panel (4) to the vehicle.
- Close the rear compartment lid.
