Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the security indicator lamp switch electrical connector.

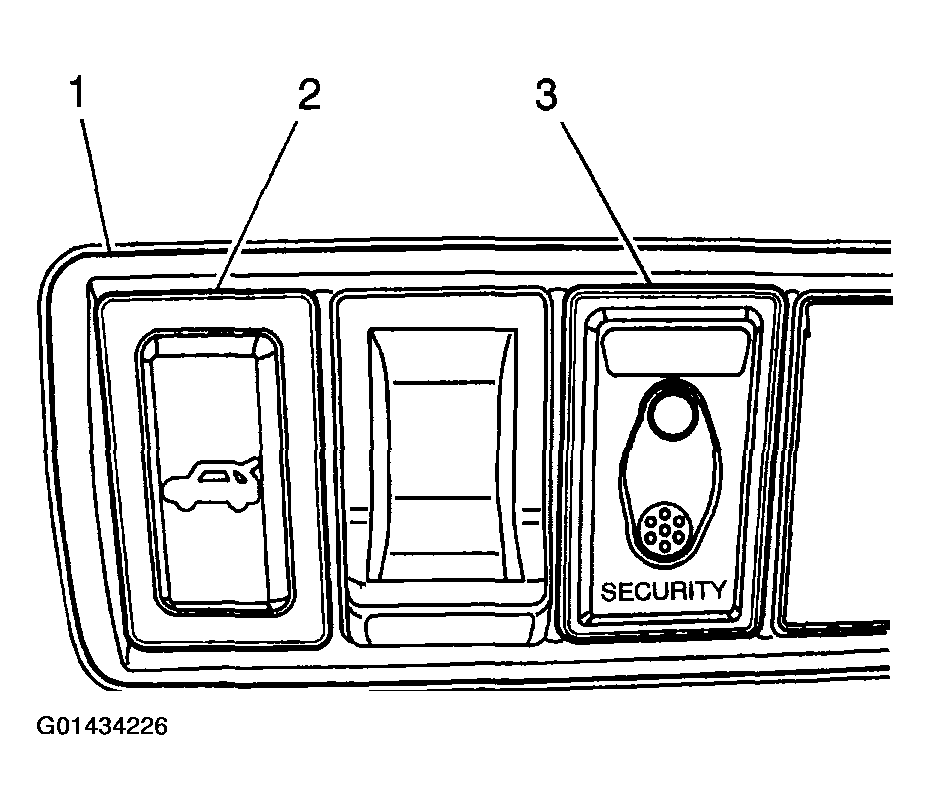

- Install the security indicator lamp switch (3) to the instrument panel (1), by pushing in until tabs lock.
Courtesy of GENERAL MOTORS CORP.
